ASL051｜Intel®｜Industrial Motherboards｜DFI

ASL051
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards 2.5" Pico-ITX ASL051

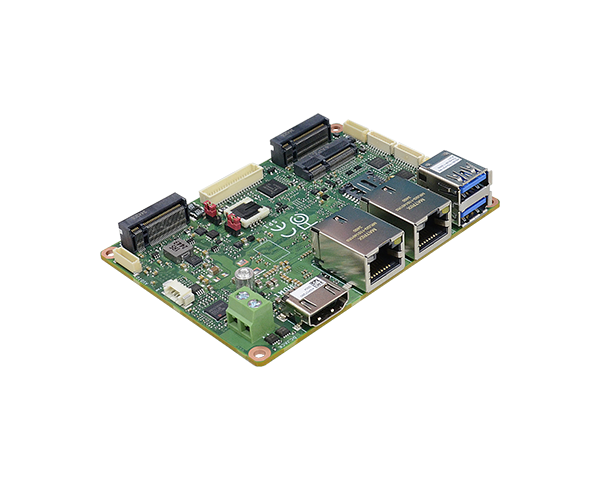

  • Intel® Atom x7000RE series processors (Code Name : Amston Lake)
  • 1 DDR5 4800MHz SODIMM
  • Supports 4K/2K resolution
  • Dual Displays: HDMI + LVDS/eDP (Opt.)

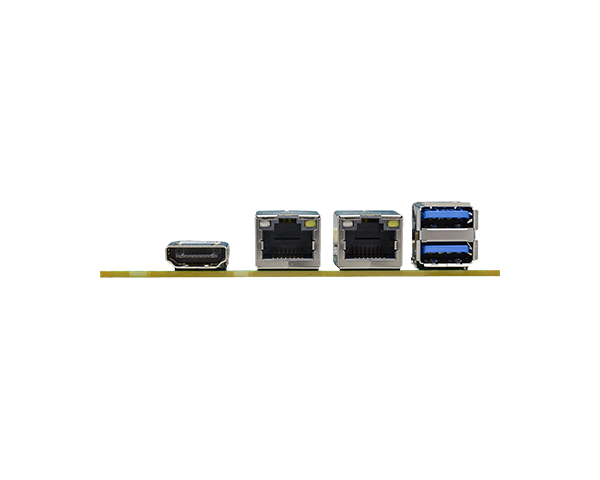

  • Multiple Expansion: 1 M.2 E Key, 2 M.2 B Key
  • Rich I/O: 2 Intel 2.5GbE, 2 COM, 2 USB 3.2, 2 USB 2.0

Status : Launched QUOTE NOW

Wide-temp: -40°C~85°C
4K2K Display
Multiple Expansion
Dual Display
DDR5
Rich I/O
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

ASL051 Related Tags

#DDR5#Windows 10#LVDS#Edge AI Computing#eDP#M.2#Intel Atom® Amston Lake Processors#Windows 11#Intel#4K2K Display#Windows#Linux#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#High-Performance#2.5G Ethernet#UKCA Certification
ASL051｜Intel®｜Industrial Motherboards｜DFI
ASL051｜Intel®｜Industrial Motherboards｜DFI
ASL051｜Intel®｜Industrial Motherboards｜DFI
ASL051｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Intel Atom® Processor X Series (Code Name: Amston Lake)
Intel Atom® Processor x7211RE, 2 Cores, 1.0~3.2 GHz, 6 W
Intel Atom® Processor x7433RE, 4 Cores, 1.5~3.4 GHz, 9 W
Intel Atom® Processor x7835RE, 8 Cores, 1.3~3.6 GHz, 12 W
Intel® Processor N series (Code Name: Twin Lake)
Intel® Processor N150, 4 Cores, 1.0~3.6 GHz, 6W
Intel® Core™ 3 Processor N355, 8 Cores, 1.8~3.9 GHz, 15W
Memory
One 262-pin SODIMM up to 16GB
Single Channel DDR5 4800MHz
BIOS
AMI SPI 256Mbi
Graphics
Controller
Intel® UHD Graphics
Feature
OpenGL 4.6, Direct X 12.1, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9, AVC
Display
1 x HDMI
1 x LVDS/eDP (Opt.)
HDMI: resolution up to 4096×2160 @24Hz
LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @60Hz
eDP: resolution up to 2560x1440 @ 60Hz (2 Lane)
Dual Displays
HDMI + LVDS/eDP (Opt.)
Expansion
Interface
1 x M.2 2230 E Key (PCIe 3.0 x1/USB 2.0), for Wi-Fi/BT.
1 x M.2 3042/2242 B Key (PCIe 3.0 x1/USB 3.2 Gen 1 x1/SATA 3.0) with 1 x Nano SIM slot for 4G/5G.
1 x M.2 2242 B key (PCIe 3.0 x2/USB 2.0/SATA 3.0), for storage.
Audio
Audio Codec
CMEDIA CM9825
Ethernet
Controller
2 x Intel® I226V/IT (10/100/1000/2500Mbps)
Rear I/O
Ethernet
2 x 2.5GbE (RJ-45)
USB
2 x USB 3.2 Gen2
Display
1 x HDMI
Internal I/O
Serial
2 x RS-232/422/485 (1.00mm pitch, 2 x 9-pin header)
USB
2 x USB 2.0 (1.00mm pitch, 1 x 8-pin header)
Display
1 x 40 pin LVDS/eDP (Default: LVDS)
Audio
1 x Line-out/Mic-in (1.00mm pitch, 1 x 8-pin header)
DIO
1 x 8-bit DIO (1.00 pitch, 1 x 10-pin header)
SMBus
1 x SMBus/I2C (Opt.)
Front Panel
1 x front panel (power button/reset button, power LED, HDD act LED)
Fan
Smart Fan: 12V (4-wire)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM2.0
Power
Type
Single 12V (+/- 5%) DC
Connector
2-pin Terminal Block
Consumption
Typical: x7835RE (w/Cooler), 12V @ 0.66A (7.92W)
Max: x7835RE (w/Cooler), 12V @ 4.51A (54.12W)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support (UEFI Only)
Windows 10 IoT Enterprise LTSC 2021
Windows 11 IoT Enterprise LTSC 24H2
Linux
Environment
Temperature
Operating: -40 to 85 °C, -5 to 65 °C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
x7835RE: 410,407 hrs @ 25°C; 188,819 hrs @ 45°C; 84,311 hrs @ 60°C; 47,388 hrs @70°C; 36,140 hrs @85°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
2.5" Pico-ITX Form Factor
100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6 mm
Top Side: 16mm
Bottom Side: 9.4mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
• 1 ASL051 board
• 1 Heat spreader (Height: 11 mm), A71-808373-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ASL051-TTD-x7835RE     Part Number :
     770-ASL0511-000G     Description :
    Intel Atom® x7835RE, 8C, 12W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -40~85°C
  • Model Name :
    ASL051-TTD-x7433RE     Part Number :
     770-ASL0511-100G     Description :
    Intel Atom® x7433RE, 4C, 9W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -40~85°C
  • Model Name :
    ASL051-TTD-x7211RE     Part Number :
     770-ASL0511-200G     Description :
    Intel Atom® x7211RE, 2C, 6W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -40~85°C
  • Model Name :
    ASL051-BCD-N355     Part Number :
     770-ASL0511-300G     Description :
    Intel® Core™ 3 N355, 8C, 15W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -5~65°C
  • Model Name :
    ASL051-BCD-N150     Part Number :
     770-ASL0511-500G     Description :
    Intel® N150, 4C, 6W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/ 422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12 VDC, Fanless, -5~65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power adapter     Part Number :
     671-106012-000G     Description :
    60W, 12V
  • Item Name :
    2-pin power to DC jack cable     Part Number :
     A81-004013-000G     Description :
    Length: 115mm
  • Item Name :
    COM port cable     Part Number :
     A81-015130-018G     Description :
    Length: 250mm, 1x COM port
  • Item Name :
    USB 2.0 cable     Part Number :
     A81-001201-018G     Description :
    Length: 200mm, 2 USB ports
  • Item Name :
    Front panel cable     Part Number :
     A81-009899-018G     Description :
    Length: 250mm
  • Item Name :
    Audio cable     Part Number :
     A81-022043-054G     Description :
    Length: 200mm
  • Item Name :
    DIO cable     Part Number :
     A81-009715-018G     Description :
    Length: 200mm
  • Item Name :
    SMBus cable     Part Number :
     A81-009716-018G     Description :
    Length: 200mm
  • Item Name :
    Heat sink for 85°C(9W), 70°C(12W), 65°C(15W)     Part Number :
     A71-008194-A00G     Description :
    Height: 25.9mm
  • Item Name :
    Cooler for 85°C(12W)     Part Number :
     A71-108165-A00G     Description :
    Height: 26mm

Related Materials

    Related Products

    Working with DFI

    DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
