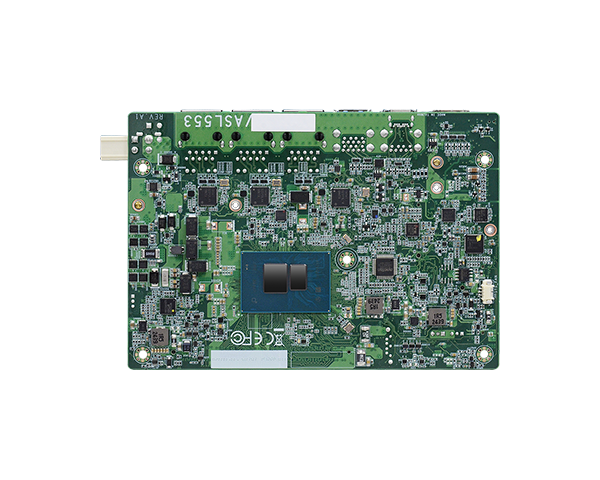

ASL553
Home Industrial Motherboards 3.5" SBC ASL553
  • Intel® Atom® Amston Lake Processors 3.5" SBC
  • 1 DDR5 SO-DIMM
  • 4K High Resolution: Supports 4K/ 2K resolution
  • Triple Display: 1 HDMI, 1 Type-C DP Alt. Mode, 1 LVDS/eDP(Opt.)
  • Rich I/O Connectivity: 3 2.5GbE LAN, 4 USB 3.2, 2 USB 2.0, 1 SATA
  • Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
  • Supports wide temperature up to -40 to 85°C

Status : Preliminary QUOTE NOW

Wide-temp: -40°C~85°C
4K2K Display
Multiple Expansion
Triple Independent Display
DDR5
Rich I/O
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

ASL553 Related Tags

#DDR5#Windows 10#9~36V DC-in#LVDS#Edge AI Computing#eDP#USB Type-C DP#Intel Atom® Amston Lake Processors#IoT#AI#Windows 11#Intel#HMI#5G#Fanless Design#4K2K Display#Windows#Linux#HDMI#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet#UKCA Certification
ASL553|Intel®|Industrial Motherboards|DFI
ASL553|Intel®|Industrial Motherboards|DFI
ASL553|Intel®|Industrial Motherboards|DFI
ASL553|Intel®|Industrial Motherboards|DFI
System
Processor
Intel® Atom® Amston Lake Processors, TDP up to 12W
Intel® Atom x7000RE series processors (Code Name : Amston Lake)
Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
Intel® Atom Processor x7213RE, 2 Cores, 2.0~3.4GHz, 9W
Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W
Memory
One 262-pin SODIMM up to 16GB
Single Channel DDR5 4800MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics
Feature
OpenGL 4.6, Direct X 12.1, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9, AVC
Display
1 x HDMI
1 x Type-C DP Alt. Mode
1 x LVDS/eDP(Opt.)

HDMI: resolution up to 4096x2160 @24Hz
DP: resolution up to 3840x2160 @60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200@60Hz
eDP: resolution up to 4096x2160 @60Hz
Triple Displays
HDMI + Type-C DP Alt. Mode + LVDS/eDP(Opt.)
Expansion
Interface
1 x M.2 M key 2280/2242 (PCIe Gen3 x1/SATA3.0)
1 x M.2 B key 3052/3042 (USB3.0/USB2.0, optional PCIe x1), 1 x SIM slot for 4G/5G
1 x M.2 E key 2230 (USB/PCIe x1, support CNVi)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
3 x Intel® I226V/IT(10/100/1000/2500Mbps). LAN3 option with M.2 3052 PCIe x1.

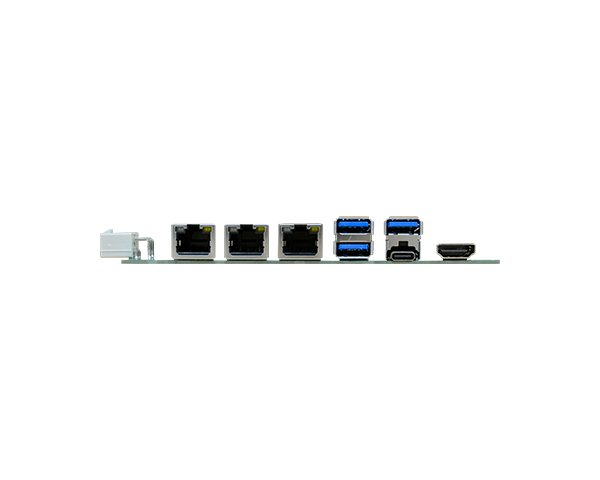

Rear I/O
Ethernet
3 x 2.5GbE (RJ-45)
USB
4 x USB 3.2
Display
1 x HDMI
1 x Type-C DP Alt. Mode
1 x LVDS/eDP(Opt.)
Internal I/O
Serial
1 x RS-232/422/485 (2.0mm pitch)
USB
2 x USB 2.0 (2.0mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio
1 x Audio (Line-out/Mic-in)
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM2.0
Power
Type
Wide Range 9~36V DC
Connector
Right Angle Connector (4-pin)
DC-in Jack (available upon request)
Vertical Type Connector (4-pin) (available upon request)
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
OS Support (UEFI Only)
Windows 10 IoT Enterprise (64-bit)
Windows 11
Linux
Environment
Temperature
Operating: -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")
Height
PCB: 1.6mm
Top Side: 15.0mm
Bottom Side: 4.0mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UKCA
Packing List
Packing List
• 1 ASL553 board
• 1 COM port cable(Length: 250mm, 1x COM port) A81-015115-018G
• 1 SATA DATA/Power cable (Length : 300mm) A81-002144-018G
• 1 Heat sink (Height: 29 mm) A71-008353-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ASL553-TN-x7211RE
    Part Number :
    770-ASL5532-800G
    Description :
    Intel® Atom Processor x7211RE, 2 Cores, 6W, 1 DDR5 SODIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -40 to 85°C
  • Model Name :
    ASL553-TN-x7213RE
    Part Number :
    770-ASL5532-900G
    Description :
    Intel® Atom Processor x7213RE, 2 Cores, 9W, 1 DDR5 SODIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -40 to 85°C
  • Model Name :
    ASL553-TN-x7433RE
    Part Number :
    770-ASL5532-A00G
    Description :
    Intel® Atom Processor x7433RE, 4 Cores, 9W, 1 DDR5 SODIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -40 to 85°C
  • Model Name :
    ASL553-TN-x7835RE
    Part Number :
    770-ASL5532-B00G
    Description :
    Intel® Atom Processor x7835RE, 8 Cores, 12W, 1 DDR5 SODIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -40 to 85°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power adapter
    Part Number :
    671-106012-000G
    Description :
    60W, 12V
  • Item Name :
    USB 2.0 cable
    Part Number :
    A81-001163-018G
    Description :
    Length: 200mm, 2 USB ports
  • Item Name :
    Front panel cable
    Part Number :
    A81-009678-018G
    Description :
    Length: 250mm
  • Item Name :
    Audio cable
    Part Number :
    A81-022007-016G
    Description :
    Length: 160mm
  • Item Name :
    Heat spreader
    Part Number :
    A71-808356-000G
    Description :
    Height: 11mm
  • Item Name :
    Cooler
    Part Number :
    A71-108308-000G
    Description :
    Height: 30.5mm
  • Item Name :
    4-pin power to DC jack cable
    Part Number :
    A81-004051-016G
    Description :
    Length: 100mm
