EHL051｜Intel®｜Industrial Motherboards｜DFI

EHL051
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards 2.5" Pico-ITX EHL051
  • Intel® Atom Processor (Code Name: Elkhart Lake)
  • 1 DDR4 3200MHz SODIMM
  • Supports 4K/2K resolution
  • Dual Displays: HDMI + LVDS
  • Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 SATA
  • Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q1' 36 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

4K2K Display
Multiple Expansion
15 Years CPU Life Cycle Support
DDR4
Dual Display
Rich I/O
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

EHL051 Related Tags

#Windows 10#LVDS#Intel#Fanless Design#Compact Size#4K2K Display#1G Ethernet#Windows#Linux#HDMI#Multiple Expansion#DDR4#RoHS Certification#CE Certification#FCC Certification#High-Performance#Intel® Atom® Processors Elkhart Lake X Series #UKCA Certification
Pico-ITX Front

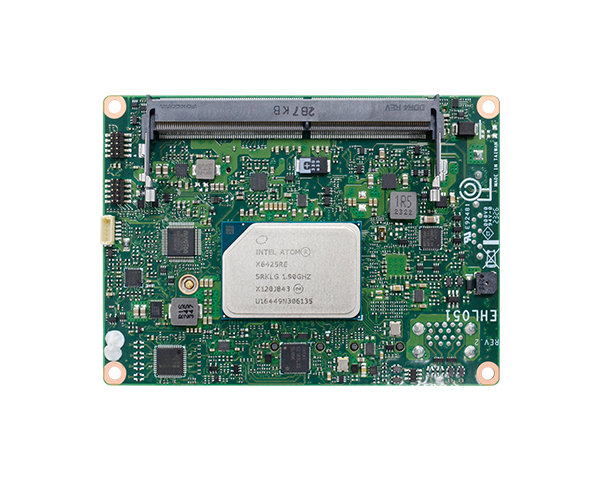

Pico-ITX Back
Pico-ITX I/O

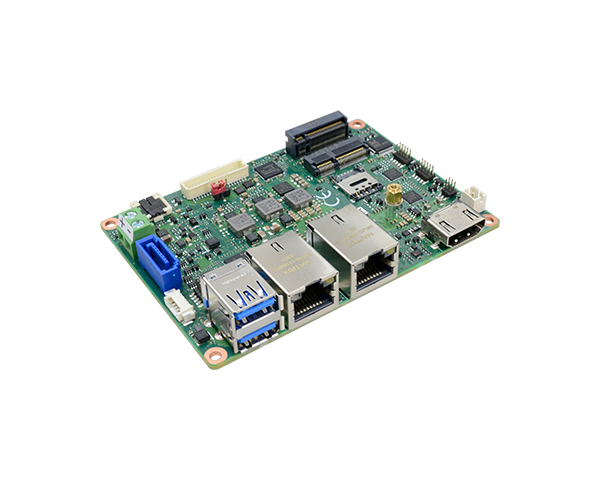

Pico-ITX Side

Related Products:

Select All - Clear
System
Processor
Intel® Atom Processor, Elkhart Lake
【Industrial】
Intel® Atom x6425RE, 4C, 1.9GHz, 12W
Intel® Atom x6416RE, 4C, 1.7GHz, 9W (Performance Update)
Intel® Atom x6214RE, 2C, 1.4GHz, 6W (Performance Update)
【Embedded】
Intel® Atom x6425E, 4C, 2.0GHz(3.0GHz), 12W
Intel® Atom x6413E, 4C, 1.5GHz(3.0GHz), 9W
Intel® Atom x6211E, 2C, 1.3GHz(3.0GHz), 6W
【PC Client】
Intel® Pentium J6412, 4C, 2.0GHz(2.6GHz),10W
Intel® Celeron N6210, 2C 1.2GHz(2.6GHz), 6.5W
Memory
Single DDR4-3200 SODIMM Up to 32GB
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
Display
1 x HDMI
1 x LVDS
HDMI: resolution up to 4096×2160 @24Hz
LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @60Hz
Dual Displays
HDMI + LVDS
Expansion
Interface
1 x M.2 2230 E Key (PCIe/USB2.0)
1 x M.2 3042/2242 B Key (PCIe*/USB3.0/SATA), optional with 1 x SIM slot.
*PCIe share with SATA LED(BOM Opt.)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
2 x Intel® I225LM/IT (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
2 x USB 3.2 Gen2
Display
1 x HDMI
Internal I/O
Serial
2 x RS-232/422/485 (1.27mm pitch)
USB
2 x USB 2.0 (1.27mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x LCD/Backlight Power (5V/12V)
Audio
1 x Audio (Line-out/Mic-in)
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x 5V SATA Power (support SATA LED by BOM option)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus/I2C (Opt.)
*Enable smart battery interface upon request.
Front Panel
1 x front panel (power button/reset button, power LED, HDD act LED)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM2.0
Power
Type
Single 12V +/-10% DC
Connector
2-pin Terminal Block
2-pin Vertical Type Connector (Opt.)
Consumption
Typical: J6426:12V @ 1.1A (13.2Watt)
Max.: J6426:12V @ 1.6A (19.2Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
(UEFI Only)
Windows 10 IoT Enterprise (64-bit)
Linux
Environment
Temperature
Operating: -5 to 65°C, -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
x6425RE: 563,338 hrs @ 25°C; 391,802 hrs @ 45°C ; 278,646 hrs @ 60°C; 146,635 hrs @ 85°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
2.5" Pico-ITX Form Factor
100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6 mm
Top Side: 15 mm
Bottom Side: 8 mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
• 1 EHL051 board
• 1 Serial ATA data cable (Length: 152mm), A81-002000-000G
• 1 Y cable for SATA and inverter power (Length: 155mm), A81-020016-018G
• 1 Heat spreader (Height: 11mm)
---- for x6000 series, A71-808359-000G
---- for N/J series, A71-808359-010G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EHL051-TCD-6425RE     Part Number :
     770-EHL0511-000G     Description :
    Intel® Atom x6425RE, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C
  • Model Name :
    EHL051-TCD-6416RE     Part Number :
     770-EHL0511-100G     Description :
    Intel® Atom x6416RE, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C
  • Model Name :
    EHL051-TCD-6214RE     Part Number :
     770-EHL0511-200G     Description :
    Intel® Atom x6214RE, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C
  • Model Name :
    EHL051-TCD-6425E     Part Number :
     770-EHL0511-300G     Description :
    Intel® Atom x6425E, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C
  • Model Name :
    EHL051-TCD-6413E     Part Number :
     770-EHL0511-400G     Description :
    Intel® Atom x6413E, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C
  • Model Name :
    EHL051-TCD-6211E     Part Number :
     770-EHL0511-500G     Description :
    Intel® Atom x6211E, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C
  • Model Name :
    EHL051-BCD-J6412     Part Number :
     770-EHL0511-600G     Description :
    Intel® Pentium J6412, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C
  • Model Name :
    EHL051-BCD-N6210     Part Number :
     770-EHL0511-700G     Description :
    Intel® Celeron N6210, 1 DDR4 SO-DIMM, HDMI + LVDS, 2 Intel GbE, 2 COM, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable     Part Number :
     A81-001084-016G     Description :
    Length: 200mm
  • Item Name :
    1 COM port cable     Part Number :
     A81-015050-016G     Description :
    Length: 300mm
  • Item Name :
    Power adapter     Part Number :
     671-106012-000G     Description :
    60W, 12V, DC Jack
  • Item Name :
    2 pole terminal to DC Jack cable     Part Number :
     A81-004013-000G     Description :
  • Item Name :
    1 Audio cable     Part Number :
     A81-022037-016G     Description :
    Length: 160mm
  • Item Name :
    1 Heat sink for x6000 series -40~85°C     Part Number :
     A71-008182-020G     Description :
    Height: 22.6mm
  • Item Name :
    1 Heat sink for N/J series -6~65°C     Part Number :
     A71-008182-010G     Description :
    Height: 18.9mm
