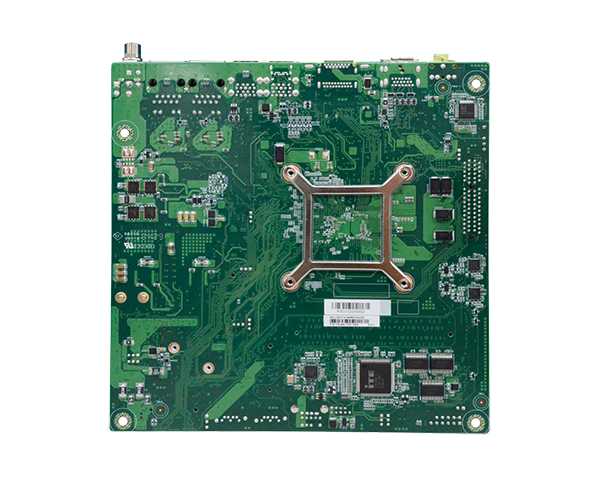

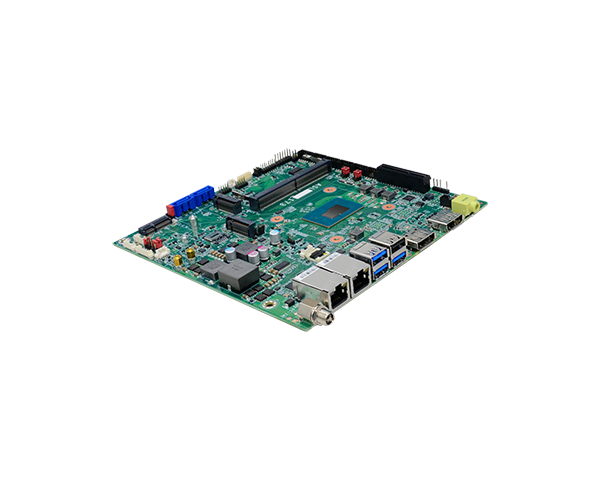

ASL171/ASL173｜Intel®｜Industrial Motherboards｜DFI

ASL171/ASL173
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards Mini-ITX ASL171/ASL173
  • Intel® Atom® Amston Lake Processors
  • 1 DDR5 4800MHz SO-DIMM up to 16GB
  • 4K High Resolution: Supports 4K/ 2K resolution
  • Triple Display: DP++/VGA + HDMI/DP++ + USB-Type C + *M2A-Display (optional)
  • Rich I/O Connectivity: 2 2.5GbE LAN, up to 4 USB 3.2, 1 USB Type C, 2 SATA3, 2 USB2.0
  • Multiple Expansion: 1 M.2 A Key, 1 M.2 B Key, 1 M.2 E Key
  • Typically supports 5-Year CPU Life Cycle Until Q2’ 29 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.

Status : Preliminary QUOTE NOW

Fanless Design
4K2K Display
Multiple Expansion
Triple Independent Display
DDR5
Rich I/O
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

ASL171/ASL173 Related Tags

#DDR5#Windows 10#9~36V DC-in#Edge AI Computing#M.2#Intel Atom® Amston Lake Processors#IoT#AI#Windows 11#Intel#SIM Slot#Fanless Design#4K2K Display#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#12V DC-in#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
ASL171/ASL173｜Intel®｜Industrial Motherboards｜DFI
ASL171/ASL173｜Intel®｜Industrial Motherboards｜DFI
ASL171/ASL173｜Intel®｜Industrial Motherboards｜DFI
ASL171/ASL173｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Atom x7000RE series processors (Code Name : Amston Lake)
Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
Intel® Atom Processor x7213RE, 2 Cores, 2.0~3.4GHz, 9W
Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W
Memory
One 262-pin SODIMM up to 16GB
Single Channel DDR5 4800MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics
Feature
OpenGL 4.6, Direct X 12.1, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9, AVC
Display
1 x DP++/ VGA (Co-layout)
1 x DP++/ HDMI2.0 (Co-layout)
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)
HDMI: resolution up to 3840x2160 @ 24Hz
DP++: resolution up to 3840x2160 @ 60Hz
VGA: resolution up to 2048x1536 @ 60Hz
USB-C: resolution up to 3840x2160 @24Hz
Triple Displays
DP++/VGA + HDMI/DP++ + USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W) + M2A-Display (optional)
Expansion
Interface
1 x PCIe x4 (PCIe signal x2)
1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1 or SATA3 and USB2.0 wi USB3(opt.))
1 x M.2 2230 E Key (PCIE Gen3x1, USB2.0, CNVi) (CNVi only support by selected CPU)
1 x M.2 3060 A Key support DFI M2A-display module (opt. MOQ required)
1 x Nano SIM socket (connected to M.2 B key)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
2 x Intel® I226V (10/100/1000/2500Mbps)

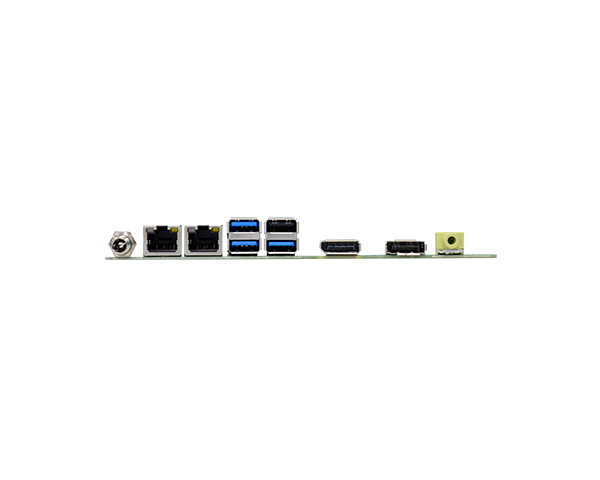

Rear I/O
Ethernet
2 x 2.5GHz RJ45
USB
4 x USB 3.2 Gen2 or 3 x USB 3.2 Gen2 + 1 x USB 2.0 or 3 x USB 3.2 Gen2 + 1 x USB Type C
Display
1 x HDMI /DP++ (opt., MOQ may required)
1 x DP++ /VGA (opt., MOQ may required)
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)
Audio
1 x Line-out
Internal I/O
Serial
2 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
4 x RS-232 (2.0mm pitch)
USB
2 x USB 2.0 (2.0mm pitch) or 1 x USB 2.0 (2.00mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required)
Audio
1 x S/PDIF
1 x Line-in/Mic-in
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM (default)
fTPM (option)
Power
Type
Single 12VDC (+/-5%) (ASL171) (DC-In jack by default)
Wide Range 9~36V (ASL173) (4P vertical type by default)
Connector
DC-in Jack
Right Angle Connector (4-pin)
Vertical Type Connector (4-pin)
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows IoT Enterprise 10 LTSB
Windows 11
Linux
Linux
Environment
Temperature
Operating: -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 20mm
Bottom Side: 3mm
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 ASL171/ASL173 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports)
1 Serial ATA data & power cable w/lock (Length: 300mm)
1 Heat sink
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ASL171-CT-x7835RE     Part Number :
     770-ASL1711-000G     Description :
    Intel® Atom® x7835RE, 1 DDR5, Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 12V DC, Fanless, -40 to 85°C
  • Model Name :
    ASL171-CT-x7433RE     Part Number :
     770-ASL1711-100G     Description :
    Intel® Atom® x7433RE, 1 DDR5, Rear I/O(1 DP++, 1 VGA, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 12V DC, Fanless, -40 to 85°C
  • Model Name :
    ASL171-CT-x7213RE     Part Number :
     770-ASL1711-200G     Description :
    Intel® Atom® x7213RE, 1 DDR5, Rear I/O(1 DP++, 1 HDMI, 2 LAN, 4 USB 3.2 Gen2), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 12V DC, Fanless, -40 to 85°C
  • Model Name :
    ASL171-CT-x7211RE     Part Number :
     770-ASL1711-300G     Description :
    Intel® Atom® x7211RE, 1 DDR5, Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 12V DC, Fanless, -40 to 85°C
  • Model Name :
    ASL173-CT-x7835RE     Part Number :
     770-ASL1731-000G     Description :
    Intel® Atom® x7835RE, 1 DDR5, Rear I/O(1 DP++, 1 VGA, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 9~36V DC, Fanless, -40 to 85°C
  • Model Name :
    ASL173-CT-x7433RE     Part Number :
     770-ASL1731-100G     Description :
    Intel® Atom® x7433RE, 1 DDR5, Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0) , 9~36V DC, Fanless, -40 to 85°C
  • Model Name :
    ASL173-CT-x7213RE     Part Number :
     770-ASL1731-200G     Description :
    Intel® Atom® x7213RE, 1 DDR5, Rear I/O(1 DP++, 1 HDMI, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 9~36V DC, Fanless, -40 to 85°C
  • Model Name :
    ASL173-CT-x7211RE     Part Number :
     770-ASL1731-300G     Description :
    Intel® Atom® x7211RE, 1 DDR5, Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 2 USB 2.0), 9~36V DC, Fanless, -40 to 85°C
