KSX215P-EHL｜Intel®｜Industrial Panel PCs & Displays｜DFI

KSX215P-EHL
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Panel PCs & Displays Fanless Touch Panel PC KSX215P-EHL
  • Touch Type Projected Capacitive Multi-touch
  • IP Rating Full IP66 & 69K Rating
  • Multiple Expansions 1 x M.2 2242/2280/3052 B Key, 1 x M.2 2230 E Key, 1 x Nano SIM
  • Construction 304 Stainless steel chassis
  • Mounting Type VESA Mount
  • Wide Voltage Support 9-36V

Status : Launched QUOTE NOW

Wide Voltage: 9~36V DC-in
Multiple Expansion
15 Years CPU Life Cycle Support
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

KSX215P-EHL Related Tags

#9~36V DC-in#IP66#IP69K#Multiple Expansion#DDR4#CE Certification#FCC Certification

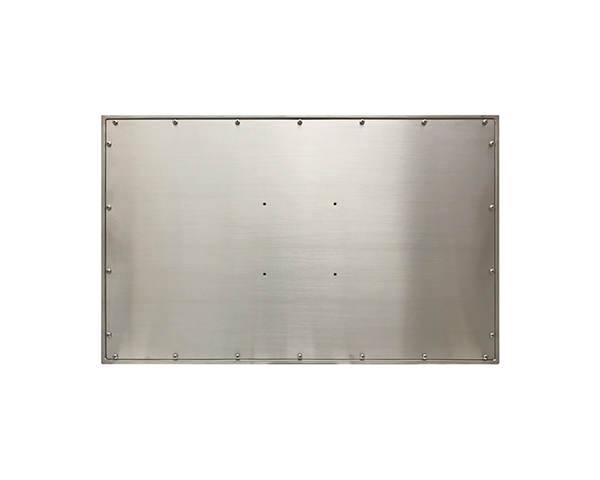

KSX215P-EHL｜Intel®｜Industrial Panel PCs & Displays｜DFI
KSX215P-EHL｜Intel®｜Industrial Panel PCs & Displays｜DFI
KSX215P-EHL｜Intel®｜Industrial Panel PCs & Displays｜DFI
KSX215P-EHL｜Intel®｜Industrial Panel PCs & Displays｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Celeron® J6413 Processor, Quad Core, 1.5M Cache, 1.8GHz (3.0GHz), 10W
Memory
1x SO-DIMM DDR4 4GB built-in
BIOS
AMI SPI 128Mbit (support UEFI boot only)
Display and Touch Screen
Display
21.5" TFT LCD Panel
Brightness
250 cd/m²
Contrast
16:9
Backlight Lifetime
50,000 Hrs LED Backlight
Max. Resolution
1920 x 1080
Touch Type
Projected Capacitive
Graphics
Controller
Intel® UHD Graphics
Feature
OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9
Storage
External
128GB TLC SSD built-in
Expansion
Interface
1 x M.2 2242/2280/3052 B Key (PCIe x1/SATA/USB2.0)
1 x M.2 2230 E Key(PCIe x1/USB2.0)
1 x Nano SIM socket (connected to M.2 B Key)
I/O
Serial
1x M12 8pin COM1, RS-232/422/485, default RS-232, with waterproof cover
USB
2x M12 8pin for 2* USB 2.0 with waterproof cover
Ethernet
1x M12 8pin for GbE Lan with waterproof cover
Power
1x M12 for DC input (9-36V in)
Power
Type
DC 9-36V
Environment
Operating Temperature
0°C ~ 50°C
Storage Temperature
-30°C ~ 70°C
Relative Humidity
10 to 95% @ 40°C, non-condensing
Mechanism
Construction
304 Stainless steel chassis
IP Rating
Full IP66 & 69K
Mounting
VESA mount 100 x 100
Dimensions (W x H x D)
563 x 354 x 70mm
Weight
9.5 Kg
Standards and Certifications
Certifications
CE/FCC Class A
Packing List
Packing List
· 1 KSX215P-EHL
· 1 Poron foam
· 1 M12 DC input cable
· 1 M12 USB cable
· 1 M12 LAN cable
· 1 M12 Com cable
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KSX215P-EHL     Part Number :
     790-KSX215-000G     Description :
    KSX215P-EHLW36-13 21.5" TFT WXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® Celeron® J6413, DC Input 9-36V DC jack, F/G SYSTEM RoHS
