KS156-AL｜Intel®｜Industrial Panel PCs & Displays｜DFI

KS156-AL
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Panel PCs & Displays Fanless Touch Panel PC KS156-AL
  • 15.6" 1366x768 TFT LCD Panel with Touch Screen
  • 1x 2.5" SATA drive bay
  • IP65 Front Panel Protection
  • VESA/Panel Mount
  • Rich I/O: 2 LAN, 2 COM, 4 USB 3.0
  • 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Fanless Design
IP65 Front Panel Protection
1G Ethernet
Mini PCIe
12V DC-in
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification
KS156-AL Embedded Solution Powered by:
AL171/AL173

AL171/AL173

AL171/AL173 Mini-ITX

Mini-ITX, Intel Atom® E3900, 2 DDR3L, 1 PCIe x1, 1 Mini PCIe, 1 M.2, 1 LVDS/eDP, 1 VGA/DP++, DP++

KS156-AL Related Tags

#Intel#Mini PCIe#Fanless Design#IP65 Front Panel Protection#1G Ethernet#Windows#Linux#VGA#DDR3L#CE Certification#FCC Certification

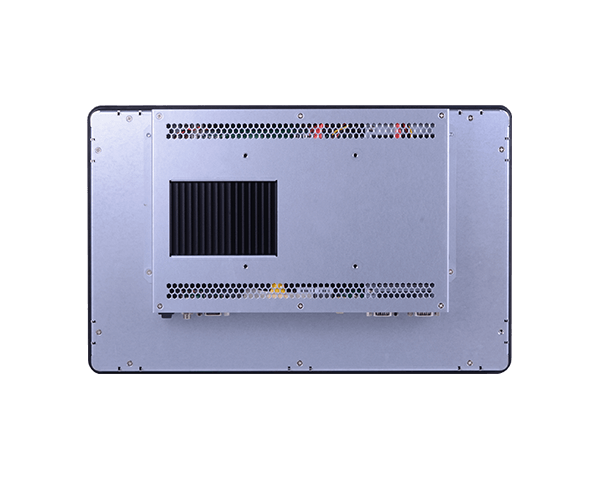

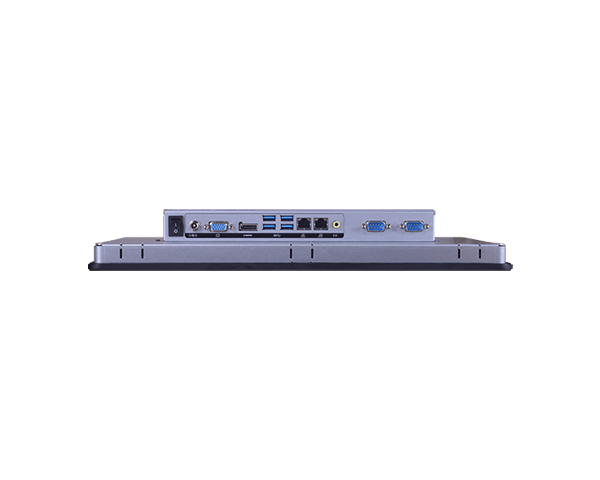

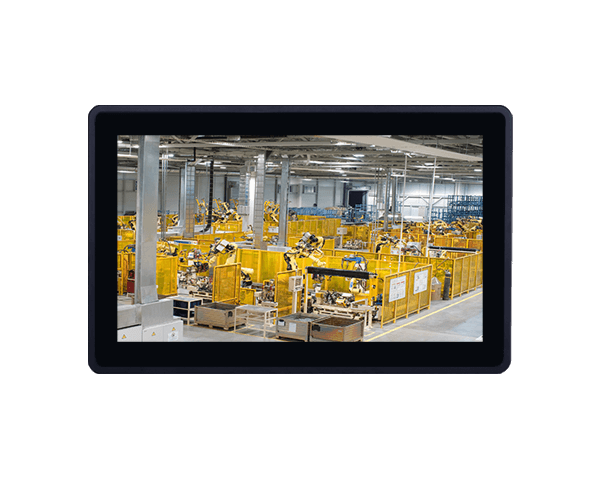

KS156-AL | Intel Atom E3900 | Apollo Lake | Industrial Panel PC | DFI
KS156-AL | Intel Atom E3900 | Apollo Lake | Industrial Panel PC | DFI
KS156-AL | Intel Atom E3900 | Apollo Lake | Industrial Panel PC | DFI
KS156-AL | Intel Atom E3900 | Apollo Lake | Industrial Panel PC | DFI

Related Products:

Select All - Clear
System
Processor
Intel Atom® Processor E3900 Family, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Memory
Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1867MHz
BIOS
Insyde SPI 64Mbit (supports UEFI boot only)
Display and Touch Screen
Display
15.6” 1366x768 TFT LCD Panel with Capacitive/5-Wire Resistive Touch Screen
Brightness
400 cd/m²
Contrast
500:1
Backlight Lifetime
50,000 hours
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVCOpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
Display
1 x VGA
1 x HDMI
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 3840x2160 @ 30Hz
Dual Displays
HDMI + VGA
Storage
External/Internal
1 x 2.5" SATA 3.0 Drive Bay
Expansion
Interface
1 x M.2
1 x Full-size Mini PCIe (PCIe/USB)
Audio
Audio Codec
Realtek ALC888 5.1-channel
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
Top I/O
Antenna Connectors
2 x Antenna Hole for Wi-Fi or Cell Module
Bottom I/O
Ethernet
2 x GbE (RJ-45) (10/100/1000Mbps)
Serial
2 x RS-232/422/485 (DB-9)
USB
4 x USB 3.0 (type A)
Display
1 x VGA
1 x HDMI
Audio
1 x Line-out
Buttons
1 x Power Button
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
12V DC
15V - 36V DC
Connector
DC Jack
OS Support
OS Support (UEFI Only)
Windows: Windows 10 (64-bit)
Linux: Yocto Project
Fedora 24 (Intel Graphics Driver available)
Linux
Environment
Operating Temperature
0 to 50°C
Storage Temperature
-30 to 70°C
Relative Humidity
5 to 85% RH (non-condensing)
Mechanism
Construction
Sheet Metal
IP Rating
IP65 Front Panel Protection
Mounting
Panel/VESA Mount
Dimensions (W x H x D)
412.1 mm x 261.4 mm x 63 mm (W x H x D)
Weight
6.17 KG
Standards and Certifications
Shock
OP: Half-sine, 3G @ 11ms
Non-OP: Half-sine, 5G @ 11ms
Vibration
OP: Random, 1Grms @ 5~500Hz, 30min
Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
Certifications
CE, FCC
Packing List
Packing List
1 KS156-AL Touch Panel PC
1 Poron foam
1 Quick Installation Guide
Note: Please choose "KS156-AL product page > Download button" to download the Driver and Manual.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KS156P-ALWD36-4200     Part Number :
     750-KS1561-000G     Description :
    15.6" Panel PC ; AL173, Intel Atom N4200, 4G RAM, 15-36VDC input, PCT, F/G SYSTEM, RoHs
  • Model Name :
    KS156R-ALWD36-4200     Part Number :
     750-KS1561-100G     Description :
    15.6" Panel PC ; AL173, Intel Atom N4200, 4G RAM, 15-36VDC input, 5-wire Resistive Touch, F/S SYSTEM, RoHs
  • Model Name :
    KS156P-ALWD36-3940     Part Number :
     750-KS1561-200G     Description :
    15.6" Panel PC ; AL173, Intel Atom E3940, 4G RAM, 15-36VDC input, PCT, F/G SYSTEM, RoHs
  • Model Name :
    KS156P-ALDC12-3940     Part Number :
     750-KS1560-200G     Description :
    15.6" Panel PC ; AL171, Intel Atom E3940, 4G RAM, 12VDC input, PCT, F/G SYSTEM, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Memory     Part Number :
     138-340001-109G     Description :
    DDR3L SO-DIMM 204-pin, 4GB
  • Item Name :
    Wi-Fi     Part Number :
     761-110091-000G     Description :
    Wi-Fi kit, RoHS
  • Item Name :
    Power Cord     Part Number :
     332-700010-201G     Description :
    Power cord, Standards (USA), 1.8m, RoHS
  • Item Name :
    Power Adapter     Part Number :
     671-112005-100G     Description :
    120W, 24V/5V, Level 6, RoHS
  • Item Name :
    Panel Mount     Part Number :
     761-KS1560-000G     Description :
    Panel PC Panel Mount Kit, RoHS
  • Item Name :
    Power adaptor     Part Number :
     671-106013-000G     Description :
    60W, 12V/5V, Level 6, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

All-in-One, One for All - DFI’s Industrial Panel PCs

DFI’s KS070-AL/KS156-AL industrial touch panel PCs based on Intel Atom® Processor E3900 series are equipped with not only processing improvements, but also features friendly interfaces and modern industrial design. With abundant features such as fanless design, IP-65 certified front panel, multi-touch capability, and rich I/O expansion, the panel PCs perfectly meets the crucial requirements within factory automation, transportation, and embedded applications.

IP65 Front Panel Protection

In factory environments, the shop floor is probably surrounded by dust or moisture. These environmental factors could be a tough challenge for the HMI to operate stably. KS070-AL/KS156-AL features an IP65 front panel protection and dust and water resistance, which may impact the progress and the efficiency of work on the production line.

Energy Efficiency & Excellent Performance

Based on Goldmont architecture with 14 nm process technology, the Intel Atom® processor E3900 series empowers the KS070-AL/KS156-AL touch panel pc. Featuring real-time computing and efficient energy consumption, KS070-AL/KS156-AL is the perfect solution for smart energy management, MES system, and remote monitoring.

Reliable Non-stop Operating

Incorrect grounding, inadequate building wiring, or large loads of sharing on the same circuits are common reason that would cause the impact of power fluctuation under crucial factory environment. KS070-AL/KS156-AL is capable of wide range 9~36V DC power input and protecting damage from these issue.

100% In-house Boards

With in-house production, it eases the control= over manufacturing quality and protects from a risk of fraud and confidentiality issues. KS070-AL/KS156-AL is developed based on 100% in-house DFI‘s industrial motherboard “AL551/AL171” series, ensuring lower costs of maintenance by all-in-one design and passes through comprehensive process of quality control.

From Design to Manufacturing, Link by Link

Each procedure from design to manufacture is important and closely linked and inseparable. DFI integrates 100% in-house development and production to maximize efficiency, enhance greater control of production quality, and provide 24/7 global service for wide variety of customers.

Support Gloved Touch

KS070-AL/KS156-AL is implemented by a customized form of gloved-friendly multiple touch technology. Users are able to operate the equipment with working gloves to enhance the efficiency and safety.

Easily Integrates Into Any Devices

To meet the requirements from various market fields, KS070-AL/KS156-AL features customized bezels with different materials and open-frame design. KS070-AL/KS156-AL is built to tailor the solutions for factory automation, transportation, and KIOSK applications.

Related Materials

    Related Products

    Working with DFI

    DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

    Get Started
