KSM-AL Series
Home Industrial Panel PCs & Displays Modularized Touch Panel PC KSM-AL Series
  • Proprietary modular design - Adaptive Display Platform
  • Front OSD & Accessible 2.5" SATA Drive Bay
  • Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen
  • Patent: Supports 24V / 9~48V Modular Power Board
  • Fanless, Cableless Design
  • 12V/24V/48V Ignition Power Control
  • 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Low Power Consumption
Wide Voltage: 9~36V DC-in
Fanless Design
IP65 Front Panel Protection
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
KC Certification
UKCA Certification
KSM-AL Series Embedded Solution Powered by: DFI Proprietary Motherboard

KSM-AL Series Related Tags

#Plug & Play#IoT#Intel#HMI#PoE#Mini PCIe#IP65 Front Panel Protection#Windows#Linux#DVI-D#VGA#DP#DDR3L#Low Power Consumption#RoHS Certification#FCC Certification#KC Certification#AGV

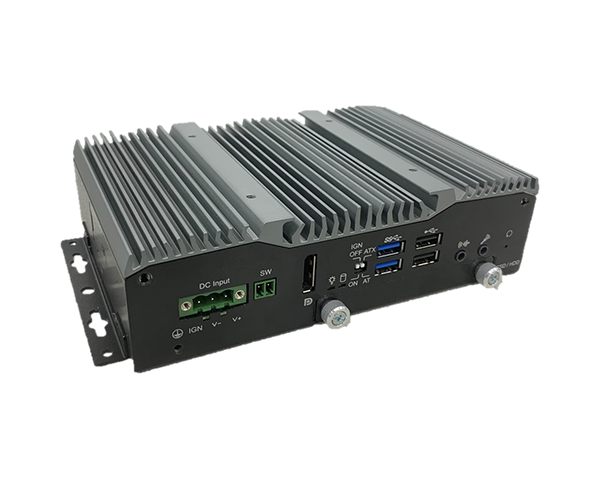

KSM-AL Series | Intel Atom E3900 | Apollo Lake | Modular-Designed Industrial Panel PC | DFI

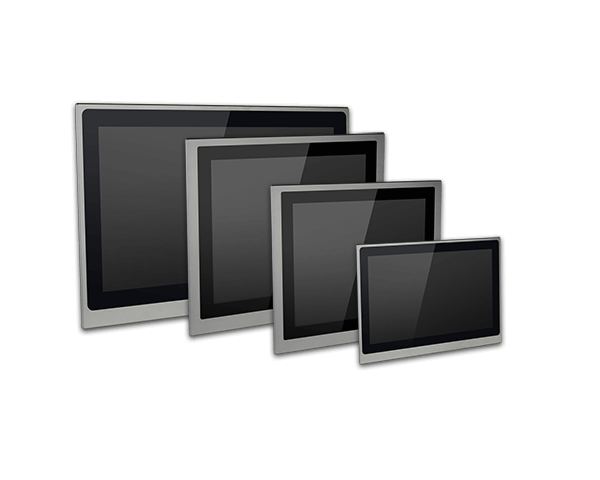

KSM-AL Series | Intel Atom E3900 | Apollo Lake | Modular-Designed Industrial Panel PC | DFI
KSM-AL Series | Intel Atom E3900 | Apollo Lake | Modular-Designed Industrial Panel PC | DFI
KSM-AL Series | Intel Atom E3900 | Apollo Lake | Modular-Designed Industrial Panel PC | DFI
KSM-AL Series | Intel Atom E3900 | Apollo Lake | Modular-Designed Industrial Panel PC | DFI
System
Processor
Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
Memory
One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1866MHz
BIOS
Insyde SPI 128Mbit (supports UEFI support only)
Display and Touch Screen
Display
[KSM070-AL]7" TFT LCD Panel
[KSM101-AL]10.1" TFT LCD Panel
[KSM121-AL]12.1" TFT LCD Panel
[KSM150-AL]15" TFT LCD Panel
[KSM156-AL]15.6" TFT LCD Panel
[KSM170-AL]17" TFT LCD Panel
[KSM185-AL]18.5" TFT LCD Panel
[KSM190-AL]19" TFT LCD Panel
[KSM215-AL]21.5" TFT LCD Panel
Brightness
[KSM070-AL]500 (cd/m²)
[KSM101-AL]350 (cd/m²)
[KSM121-AL]500 (cd/m²)
[KSM150-AL]300 (cd/m²)
[KSM156-AL]400 (cd/m²)
[KSM170-AL]350 (cd/m²)
[KSM185-AL]450 (cd/m²)
[KSM190-AL]350 (cd/m²)
[KSM215-AL]300 (cd/m²)
Backlight Lifetime
[KSM070-AL]40,000 hours
[KSM101-AL]25,000 hours
[KSM121-AL]30,000 hours
[KSM150-AL]70,000 hours
[KSM156-AL]50,000 hours
[KSM170-AL]30,000 hours
[KSM185-AL]50,000 hours
[KSM190-AL]70,000 hours
[KSM215-AL]50,000 hours
Max. Resolution
[KSM070-AL]800 x 480
[KSM101-AL]1280 x 800
[KSM121-AL]1024 x 768
[KSM150-AL]1024 x 768
[KSM156-AL]1366 x 768
[KSM170-AL]1280 x 1024
[KSM185-AL]1366 x 768
[KSM190-AL]1280 x 1024
[KSM215-AL]1920 x 1080
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display
1 x DP++
1 x VGA or DVI-D (DVI-D available upon request)
DP++: resolutionp u to 4096x2160 @ 60Hz
VGA: Resolution up to 2560x1600 @ 60Hz
DVI-D: Resolution up to 1920x1200 @ 60Hz
Triple Displays
Panel Module, DP++, VGA or DVI-D
Storage
External/Internal
1 x 2.5" SATA 3.0 Drive Bay (accessible)
1 x mSATA (shared by Mini-PCIe Socket)
Expansion
Interface
1 x Full-size Mini PCIe (USB/PCIe)
1 x Half-size Mini PCIe (USB/PCIe/mSATA)
1 x SIM Slot
Audio
Audio Codec
Realtek ALC262
Speaker
2 x 1.5W Speaker (opt.)
Ethernet
Controller
2 x Intel® I210IT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
Front I/O
USB
Opt.: 1 x USB 2.0
OSD Keypad
Opt.: Backlight On-Off / Brightness Up / Brightness Down / Audio Up / Audio Down
LED Indicators
Opt.: Power LED / HDD LED / Alarm LED

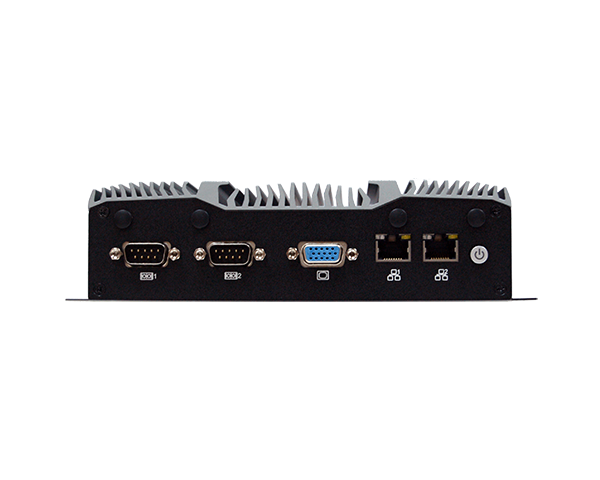

Top I/O
Serial
2 x RS-232/422/485 (DB9)
2 x RS-232/422/485 (available upon request)
Support 5V/12V Power
USB
2 x USB 3.0 (type A)
2 x USB 2.0 (type A)
2 x USB 2.0 (available upon request)
Wi-Fi Antenna
4 x Wi-Fi Module Antenna Hole
DIO
4 x DI / 4 x DO (10-pin terminal block) (available upon request)
Buttons
1 x Power Button
1 x Reset Switch
Switch
1 x AT/ATX Switch
1 x Ignition Power On/Off Switch
Ethernet
2 x GbE (RJ-45) (10/100/1000Mbps)
Support Jumbo Frame, IEEE1588v2, WOL, PXE
802.3 af PoE (PSE), Individual Port 15.4W (available upon request)
Remote Power On/Off
1 x 2-pin Terminal Block

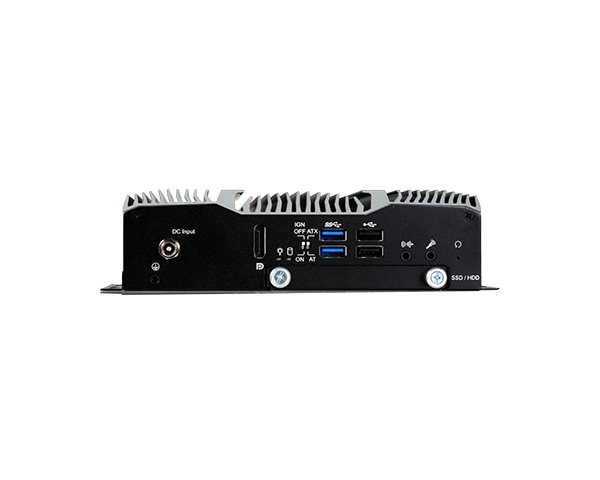

Bottom I/O
Display
1 x DP++
1 x VGA or DVI-D (DVI-D available upon request)
Audio
1 x Line-out
1 x Mic-in
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
24 VDC Input (available upon request)
9~48 VDC Input (available upon request)
Power Management Includes Ignition On/Off and System On/Off Delay Time Control
Auto Detect Boot-up & Shut-down Voltage for Low Power Protection
Support 12V/24V/48V DC Input
7-level Delay Time On/Off Configuration
I/O Switch Selectable Ignition Power On/Off
Connector
3-pin Terminal Block
OS Support
OS Support (UEFI Only)
Windows 10 IoT Enterprise 64-bit
Linux
Environment
Operating Temperature
[KSM070-AL] -20 to 70°C
[KSM101-AL]-20 to 70°C
[KSM121-AL]-20 to 70°C
[KSM150-AL]-20 to 70°C
[KSM156-AL]0 to 60°C
[KSM170-AL]0 to 50°C
[KSM185-AL]0 to 60°C
[KSM190-AL]-20 to 70°C
[KSM215-AL]0 to 60°C
Storage Temperature
[KSM070-AL]-30 to 80°C
[KSM101-AL]-30 to 80°C
[KSM121-AL]-40 to 80°C
[KSM150-AL]-30 to 70°C
[KSM156-AL]-20 to 60°C
[KSM170-AL]-20 to 60°C
[KSM185-AL]-20 to 60°C
[KSM190-AL]-30 to 85°C
[KSM215-AL]-20 to 60°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Construction
Aluminum Front Bezel
IP Rating
IP65 Front Panel Protection
Mounting
Panel/VESA Mount
Dimensions (W x H x D)
[KSM070-AL]224mm x 163.55mm x 72.9mm
[KSM101-AL]275mm x 212.3mm x 72.9mm
[KSM121-AL]308mm x 265.3mm x 77.9mm
[KSM150-AL]387mm x 320mm x 80.5mm
[KSM156-AL]407.3mm x 277.3mm x 76.1mm
[KSM170-AL]404mm x 363.8mm x 80.9mm
[KSM185-AL]472.1mm x 314.1mm x 80.9mm
[KSM190-AL]467mm x 400mm x 80.5mm
[KSM215-AL]544.2mm x 360.6mm x 80.9mm
Weight
[KSM070-AL]2.2 kg
[KSM101-AL]2.4 kg
[KSM121-AL]3.2 kg
[KSM150-AL]5.3 kg
[KSM156-AL]4.2 kg
[KSM170-AL]5.4 kg
[KSM185-AL]5.7 kg
[KSM190-AL]7.6 kg
[KSM215-AL]7 kg
Standards and Certifications
Shock
[KSM070-AL]Non-op : 240G, 2ms, half sine wave, 1 time for ± X, ± Y, ± Z direction
[KSM101-AL]Non-op : 240G, 2ms, half sine wave, 1 time for ± X, ± Y, ± Z direction
[KSM121-AL]Non-op : 200G, 2ms, half sine wave, 1 time for ± X, ± Y, ± Z direction
[KSM150-AL]Non-op : 50G, 11ms, half sine wave, 1 time for ± X, ±Y, ± Z direction
[KSM156-AL]Non-op : 50G, 20ms, half sine wave, 1 time for ± X, ± Y, ± Z direction
[KSM170-AL]Non-op : 50G, 20ms, half sine wave, 1 time for ± X, ± Y, ± Z direction
[KSM185-AL]Non-op : 50G, 20ms, half sine wave, 1 time for ± X, ± Y, ± Z direction
[KSM190-AL]Non-op : 50G, 20ms, half sine wave, 1 time for ± X, ±Y, ± Z direction
[KSM215-AL]Non-op : 50G, 20ms, half sine wave, 1 time for ± X, ± Y, ± Z direction
Vibration
[KSM070-AL]Non-op: 1.5G, 10~300 Hz sine wave, 10 min/cycle, 3 cycles each X,Y, Z direction
[KSM101-AL]Non-op: 1.5G, 10~300 Hz sine wave, 10 min/cycle, 3 cycles each X,Y, Z direction
[KSM121-AL]Non-op: 1.5G, 10 ~ 300 Hz sine wave, 10 min/cycle, 3 cycles each X, Y, Z direction
[KSM150-AL]Non-op: 1.5G, 10 ~ 300 Hz sine wave, 10 min/cycle, 3 cycles each X, Y, Z direction
[KSM156-AL]Non-op : 1.5G, 10~200 Hz random, x, y, z each axis/30 min
[KSM170-AL]Non-op : 1.5G, 10~200 Hz random, x, y, z each axis/30 min
[KSM185-AL]Non-op : 1.5G, 10~200 Hz random, x, y, z each axis/30 min
[KSM190-AL]Non-op : 1.5G, 10~200 Hz random, x, y, z each axis/30 min
[KSM215-AL]Non-op : 1.5G, 10~200 Hz random, x, y, z each axis/30 min
Certifications
CE / FCC Class A / RoHS / UKCA
[KSM170-AL] support KC certification
Packing List
Packing List
1 Single Box
1 3 pin Terminal Block Connector
1 2 pin Terminal Block Connector
2 Mini PCIe Screw
4 SATA Screw
Note: Please choose "KSM-AL Series product page > Download button" to download the Driver and Manual.
Patent
Patent No. (Taiwan)
I670589
I711917
Others
Auto Dimming
Opt.: Light Sensor
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KSM070P-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM070P-ALD24-E40: 7" TFT WVGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM070P-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM070P-ALD24-N50: 7" TFT WVGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM070P-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM070P-ALW48-E40: 7" TFT WVGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM070P-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM070P-ALW48-N50: 7" TFT WVGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM070R-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM070R-ALD24-E40: 7" TFT WVGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM070R-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM070R-ALD24-N50: 7" TFT WVGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM070R-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM070R-ALW48-E40: 7" TFT WVGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM070R-ALW48-N50
    Part Number :
    750-KS07R0-200G
    Description :
    KSM070R-ALW48-N50: 7" TFT WVGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM101P-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM101P-ALD24-E40: 10.1" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM101P-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM101P-ALD24-N50: 10.1" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM101P-ALW48-E40
    Part Number :
    750-KS1011-100G
    Description :
    KSM101P-ALW48-E40: 10.1" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM101P-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM101P-ALW48-N50: 10.1" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM101R-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM101R-ALD24-E40: 10.1" TFT WXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM101R-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM101R-ALD24-N50: 10.1" TFT WXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM101R-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM101R-ALW48-E40: 10.1" TFT WXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM101R-ALW48-N50
    Part Number :
    750-KS1011-000G
    Description :
    KSM101R-ALW48-N50: 10.1" TFT WXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM121P-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM121P-ALD24-E40: 12.1" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM121P-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM121P-ALD24-N50: 12.1" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM121P-ALW48-E40
    Part Number :
    750-KS1210-100G
    Description :
    KSM121P-ALW48-E40: 12.1" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM121P-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM121P-ALW48-N50: 12.1" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM121R-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM121R-ALD24-E40: 12.1" TFT XGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM121R-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM121R-ALD24-N50: 12.1" TFT XGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM121R-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM121R-ALW48-E40: 12.1" TFT XGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM121R-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM121R-ALW48-N50: 12.1" TFT XGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150P-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM150P-ALD24-E40: 15" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150P-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM150P-ALD24-N50: 15" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150P-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM150P-ALW48-E40: 15" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150P-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM150P-ALW48-N50: 15" TFT XGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150R-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM150R-ALD24-E40: 15" TFT XGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150R-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM150R-ALD24-N50: 15" TFT XGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150R-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM150R-ALW48-E40: 15" TFT XGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM150R-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM150R-ALW48-N50: 15" TFT XGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156P-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM156P-ALD24-E40: 15.6" TFT HD Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156P-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM156P-ALD24-N50: 15.6" TFT HD Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156P-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM156P-ALW48-E40: 15.6" TFT HD Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156P-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM156P-ALW48-N50: 15.6" TFT HD Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156R-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM156R-ALD24-E40: 15.6" TFT HD Panel PC with Resistive Touch, Intel® Atom®x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156R-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM156R-ALD24-N50: 15.6" TFT HD Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156R-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM156R-ALW48-E40: 15.6" TFT HD Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM156R-ALW48-N50
    Part Number :
    750-K15603-000G
    Description :
    KSM156R-ALW48-N50: 15.6" TFT HD Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM170P-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM170P-ALD24-E40: 17" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM170P-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM170P-ALD24-N50: 17" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM170P-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM170P-ALW48-E40: 17" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM170P-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM170P-ALW48-N50: 17" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM170R-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM170R-ALD24-E40: 17" TFT SXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM170R-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM170R-ALD24-N50: 17" TFT SXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM170R-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM170R-ALW48-E40: 17" TFT SXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM170R-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM170R-ALW48-N50: 17" TFT SXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM185P-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM185P-ALD24-E40: 18.5" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM185P-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM185P-ALD24-N50: 18.5" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM185P-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM185P-ALW48-E40: 18.5" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM185P-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM185P-ALW48-N50: 18.5" TFT WXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM185R-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM185R-ALD24-E40: 18.5" TFT WXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM185R-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM185R-ALD24-N50: 18.5" TFT WXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM185R-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM185R-ALW48-E40: 18.5" TFT WXGA Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM185R-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM185R-ALW48-N50: 18.5" TFT WXGA Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190P-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM190P-ALD24-E40: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190P-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM190P-ALD24-E40: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190P-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM190P-ALD24-N50: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190P-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM190P-ALD24-N50: 19" TFT SXGA HD Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190P-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM190P-ALD24-E40: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190P-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM190P-ALW48-E40: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190P-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM190P-ALW48-N50: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM190P-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM190P-ALW48-N50: 19" TFT SXGA Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM215P-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM215P-ALD24-E40: 21.5" TFT FHD Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM215P-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM215P-ALD24-N50: 21.5" TFT FHD Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM215P-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM215P-ALW48-E40: 21.5" TFT FHD Panel PC with Projected Capacitive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM215P-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM215P-ALW48-N50: 21.5" TFT FHD Panel PC with Projected Capacitive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM215R-ALD24-E40
    Part Number :
    available upon request
    Description :
    KSM215R-ALD24-E40: 21.5" TFT FHD Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM215R-ALD24-N50
    Part Number :
    available upon request
    Description :
    KSM215R-ALD24-N50: 21.5" TFT FHD Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 24V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM215R-ALW48-E40
    Part Number :
    available upon request
    Description :
    KSM215R-ALW48-E40: 21.5" TFT FHD Panel PC with Resistive Touch, Intel® Atom® x5-E3940, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS
  • Model Name :
    KSM215R-ALW48-N50
    Part Number :
    available upon request
    Description :
    KSM215R-ALW48-N50: 21.5" TFT FHD Panel PC with Resistive Touch, Intel® Celeron® N3350, VGA, DP, IGN, DC Input 9~48V Terminal, F/G SYSTEM RoHS

*

Optional Items
  • Item Name Part Number Description
  • Item Name :
    HDD
    Part Number :
    785-H25500G
    785-H25320G
    785-S25512G
    785-S25256G
    785-S25128G
    785-S25064G
    785-S25032G
    Description :
    2.5" SATA HDD, 500GB, RoHS
    2.5" SATA HDD, 320GB, RoHS
    2.5" SATA SSD, 512GB MLC, RoHS
    2.5" SATA SSD, 256GB MLC, RoHS
    2.5" SATA SSD, 128GB MLC, RoHS
    2.5" SATA SSD, 64GB MLC, RoHS
    2.5" SATA SSD, 32GB MLC, RoHS
  • Item Name :
    mSATA
    Part Number :
    785-MS128GMF
    785-MS64GMF
    785-MS32GMF
    785-MS16GMF
    Description :
    mSATA mini, 128GB MLC, RoHS
    mSATA mini, 64GB MLC, RoHS
    mSATA Card, 32GB MLC, RoHS
    mSATA Card, 16GB MLC, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter
    Part Number :
    671-106013-000G
    671-112005-100G
    Description :
    60W: 12VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS
    120W: 24VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS
  • Item Name :
    Panel Mount Kit
    Part Number :
    761-KS0701-000G
    761-P15002-000G
    761-P19003-000G
    available upon request
    761-KS2150-000G
    Description :
    KSM070-AL / KSM101-AL / KSM121-AL Panel Mount Kit RoHS
    Panel Mount Kit for PMKSM150 RoHS
    KSM170-AL / KSM190-AL Panel Mount Kit RoHS
    KSM185 Panel Mount Kit RoHS
    KSM215-AL Panel Mount Kit RoHS

Change Everything ─ Adaptive Display Platform

DFI developed a brand-new series of product line - KSM series which adopts an “Adaptive Display Platform”, an emerging and innovative approach to modularized touch panel PC design. This diverse combination of computing units and touchscreens provide system integrators a more flexible and cost-efficiency solution by merely upgrading certain modules instead of the whole unit. With the advantage of updating prospects, easy maintenance, and rugged design, DFI’s new-series touch panel PCs with ADP technology are the ideal solutions for factory automation, transportation, and critical mission applications.

Easy Installation & Maintenance

Mounting or changing a touch panel or box module could never be simpler as the modular design can be completed within two steps. ADP technology helps PPC achieve easy installation, maintenance, and ensures not to cause long-term interruption while upgrading or maintaining the equipment.

Configure by Demand

Equipped with Intel Atom or Core i series processors, customers can freely choose the processing capability of the box PC and size of the panel depending on their requirement. Customers can also choose from over 30 I/O expansion modules and resistive single-touch or projected capacitive multi-touch displays to build highly customized solutions.

100% In-house Boards

With in-house production, it eases the control over manufacturing quality and protects from a risk of fraud and confidentiality issues. KSM070-AL/KSM156-AL is developed based on 100% in-house DFI‘s proprietary motherboard, ensuring lower costs of maintenance by all-in-one design and passes through comprehensive process of quality control.

Rugged Design

Adaptive Display Platform provides outstanding reliability and graphic performance featuring the capability of wide voltage 9~48V DC power input and surviving under extended temperature range from -40°C to 70°C with fanless, anti-vibration, cableless design. These products can operate stably 24/7 under challenging environments like transportation, logistics, aviation, and marine sectors.

Convertible Power Module

DFI KSM-AL/BMAL series are patented with convertible power management module for replacing MCU with onboard Embedded Controller which is cost- efficient and space-saving to achieve Power Ignition (IGN) function supported with delay on/off time management for low voltage power protection. In addition, this series are available with wide voltage power modules including 3 options of 12V, 9~48V, 24V power boards to fulfill different demands in in-vehicle, AGV and industrial automation markets.

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
