ED700-EHL/ED700-EHL22I

Overview

Home Industrial Computers Ultra Compact Fanless PC ED700-EHL/ED700-EHL22I

Intel® Atom® Processors X Series Fanless Embedded System

Support 5G Sub-6 module

Support WiFi 6 module

4 LAN: Support 1 x 2.5GbE TSN , 3 x GbE LAN

Wide Operating Temperature: Support up to -40 ~ 60°C (Intel® Embedded Series)

Support Isolated COM & DIO

15-Year CPU Life Cycle Support Until Q1' 36 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

+Compare +Quotation

Product Comparison
You have 0 items. up to 3 products.
COMPARE NOW

Quotation
You have 0 items. up to 3 products.
QUOTE NOW

ED700-EHL/ED700-EHL22I Embedded Solution Powered by: DFI Proprietary Motherboard

ED700-EHL/ED700-EHL22I Related Tags

#IoT#5G#Fanless Design#Linux#DP#Low Power Consumption#RoHS Certification#SCARA#Service Robot#Intel® Atom® Processors Elkhart Lake X Series #Wifi 6#2.5G Ethernet#TSN#UKCA Certification

System

Processor

Intel® Atom® Processors X Series, BGA 1493
Intel PC Client Series
Intel® Celeron® J6412 4 cores, 2.0 to 2.6 GHz, TDP 10W
Intel® Celeron® J6413 4 cores, 1.8 to 3.0 GHz, TDP 10W
Intel® Embedded Series
Intel® Atom® x6211E 2 cores, 1.3 to 3.0 GHz, TDP 6.5W
Intel® Atom® x6413E 4 cores, 1.5 to 3.0 GHz, TDP 9W
Intel® Atom® x6425E 4 cores, 2.0 to 3.0 GHz, TDP 12W
Intel® Atom® x6425RE 4 cores, 1.9 GHz, TDP 12W

Memory

4GB/8GB DDR4 Memory onboard 　　　　　　
One 260 pin DDR4 SODIMM up to 3200MHz
Total Memory up to 32GB
(in-band ECC support in embedded/industrial SKU)

BIOS

AMI SPI 256Mbit (supports UEFI boot only)

Graphics

Controller

Intel® UHD Graphics for 10th Gen Intel® Processors

Feature

OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9

Display

1 x VGA (resolution up to 2560x1600@60Hz)
1 x DP (Opt. in rear side, resolution up to 4096x2160 @ 60Hz)

Storage

Internal

1 x M.2 2280 (SATA)

eMMC

eMMC 16GB/32GB

Expansion

Interface

1 x M.2 2230 (USB/PCIe)

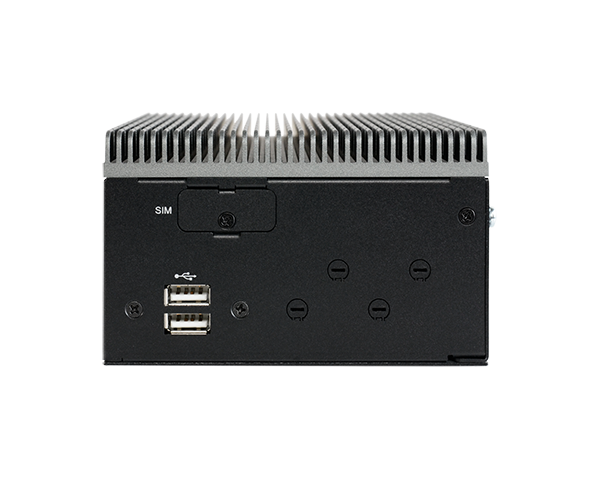

1 x M.2 3042/3052 (USB 3.0/PCIe) with dual SIM

Audio

Audio Codec

Realtek ALC888

Ethernet

Controller

2 or 3 x Intel® Ethernet Controller I210/I211 GigE LAN
1 x Intel® Ethernet 2.5GigE LAN

LED

Indicators

1 x Power LED
1 x HDD LED
1 x WiFi LED
1 x 4G/5G LED
2 x COM LED
8 x DIO LED

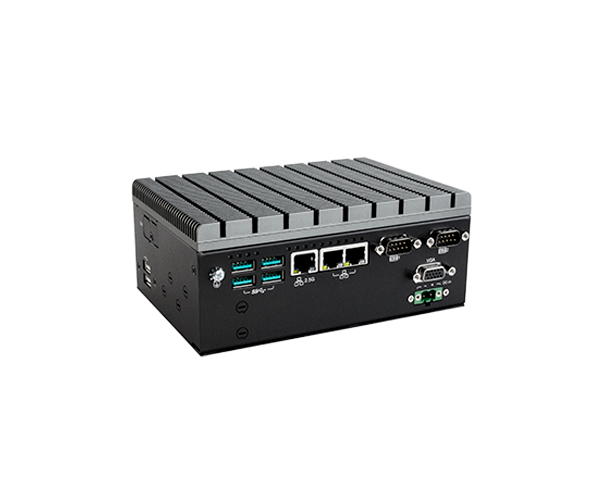

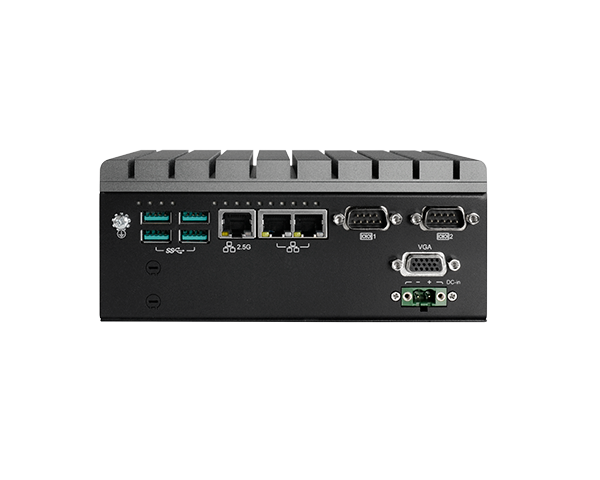

Front I/O

Ethernet

2 or 3 x GbE (RJ-45) (configuration options)
1 x 2.5GbE TSN RJ45
1 x Allxon OOB Enabler (by request)

Serial

2 x RS232/422/485

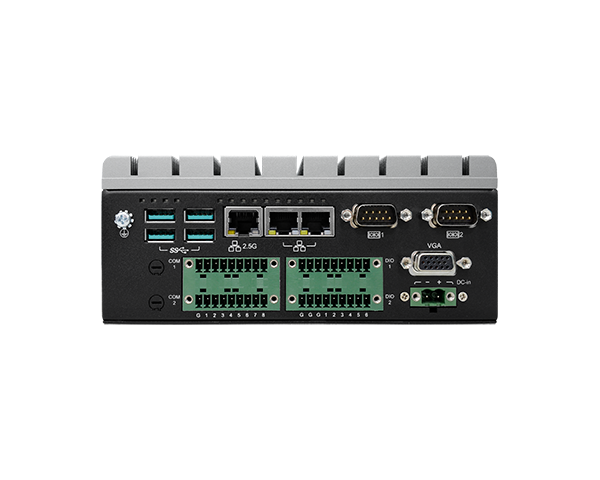

2 x Isolated COM and 1x 6bit DI & 1x 6bit DO (support 2KV, ED700-EHL22I Only)

USB

2 or 4 x USB 3.1 (configuration options)

Display

1 x VGA

DIO

8-bit DIO (jumper switch to COM)

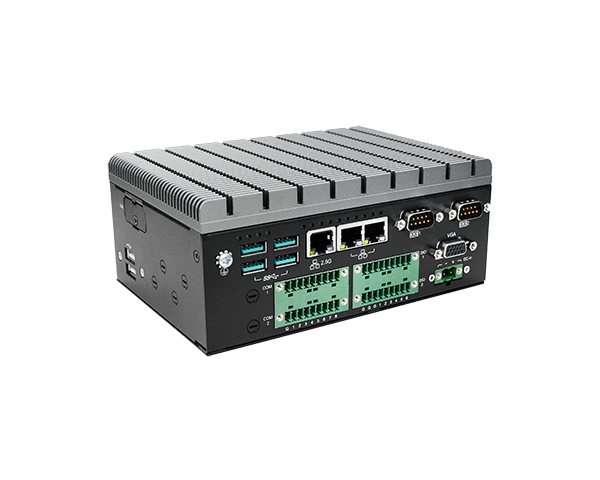

12-bit isolated DIO (support 2KV, ED700-EHL22I only)

Antenna

2 x antenna opening for WiFi

Top I/O

USB

2 x USB 2.0

Antenna Hole

4 x antenna opening for 4G/5G/GPS

SIM Slot

Dual SIM

Watchdog Timer

Output & Interval

System reset, programmable via software from 1 to 255 seconds

Security

TPM

TPM 2.0 (configuration options)

Power

Type

Wide range 9~36V

Connector

3-pole terminal block 2-pin power extension switch onnector

RTC Battery

RTC battery CR2032

OS Support

Microsoft

Windows 10 IoT Enterprise 64 Bit

Linux

Ubuntu 20.04

Environment

Operating Temperature

0 to 60°C
-40 to 60°C (Support by Intel® Embedded Series)

Storage Temperature

-40 to 85°C

Relative Humidity

10 to 90% RH (non-condensing)

Mechanism

Dimensions

72 x 172 x 118.2 (mm)

Construction

Aluminum + Metal

Mounting

Wall/DIN rail mount

Weight

ED700-EHL: 1.5kg
ED700-EHL22I: 1.6kg

Standards and Certifications

Shock

Operating: 3G, 11ms
Non-Operating: 5G, 11ms

Vibration

Operating: Random 5~500Hz, IEC68-2-64 (3G)
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G)

Certifications

CE, FCC, RoHS, UKCA

Packing List

1 System unit
2 Wall mount bracket
1 Quick Installation Guide
1 Terminal connector to DC cable

Country of Origin

Taiwan (TAA Compliant Country)
