KS200/KS202｜TI®｜Industrial Panel PCs & Displays｜DFI

KS200/KS202
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Panel PCs & Displays Fanless Touch Panel PC KS200/KS202
  • 7" WVGA Touch Screen Fanless Panel PC
  • TI® AM3517, ARM
  • 512MB DDR2 onboard
  • 512MB NAND Flash onboard
  • 2 USB 2.0, 1 LAN, 2 COM, 1 SD/MMC, 12-bit GPIO
  • 10-Year CPU Life Cycle Support

Status : Launched QUOTE NOW

Low Power Consumption
Fanless Design
IP65 Front Panel Protection
1G Ethernet
Windows
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
KS200/KS202 Embedded Solution Powered by: DFI Proprietary Motherboard

KS200/KS202 Related Tags

#Fanless Design#IP65 Front Panel Protection#1G Ethernet#Windows#VGA#Low Power Consumption#RoHS Certification#UL Certification#CE Certification#FCC Certification#UL-US Certification

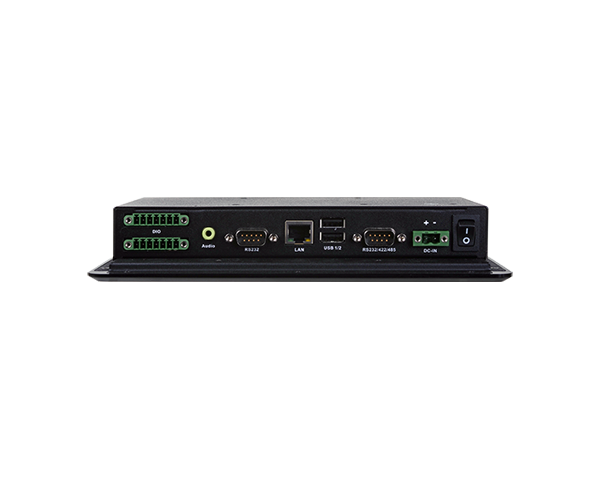

KS200/KS202 7" Light Industrial Touch Panel PC

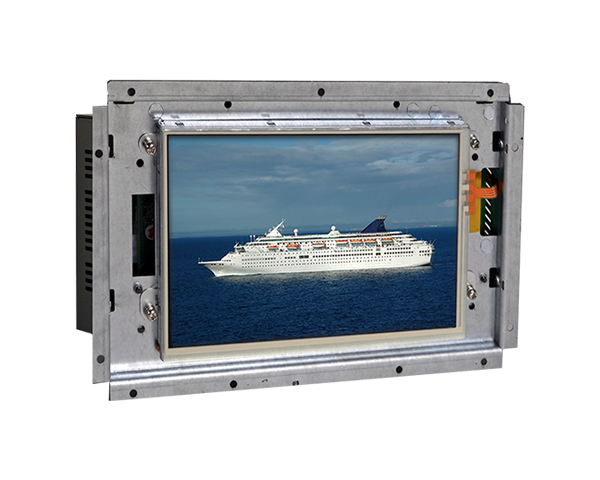

KS200/KS202 7" Light Industrial Touch Panel PC
KS200/KS202 7" Light Industrial Touch Panel PC

Related Products:

Select All - Clear
System
Processor
TI® AM3517 Sitara ARM Cortex-A8
Memory
512MB DDR2 onboard (4 DDR2 64Mx16 RAM)
Display and Touch Screen
Display
7" 800x480 WVGA TFT LCD Panel with 4-Wire Resistive Touch Screen (TI® TSC2004 touch screen controller)
Brightness
400 cd/m²
Storage
External/Internal
1 x SD/MMC Card Socket
512MB NAND Flash (Samsung K9F4G08U0D flash memory 512Mx 8bit)
Ethernet
Controller
1 x LAN8710 10/100Mbps LAN Chip
LED
Indicators
1 x Power LED
Bottom I/O
Ethernet
1 x LAN (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
1 x RS-232 (DB-9)
USB
2 x USB 2.0 (Type A)
Audio
1 x Line-out
DIO
1 x 12-bit DIO (2x 7-pole terminal block)
Buttons
1 x Power Switch
Power
Type
9~30V DC
Connector
2-Pole Terminal Block
OS Support
OS Support
Windows CE 6.0
Environment
Operating Temperature
-20°C ~ 65°C
Storage Temperature
-30°C ~ 80°C
Relative Humidity
95% RH at 65°C, 1 Week
Mechanism
Construction
Aluminum Front Bezel
Rugged Metal Housing
IP Rating
IP65 Front Panel Protection
Mounting
Wall mount (VESA 75x75)
Panel mount (mounting clamp)
Dimensions (W x H x D)
KS200: 235mm x 150mm x 40.8mm (W x H x D)
KS202 (Open Frame): 230.40mm x 142.32mm x 35.8mm (W x H x D)
Weight
KS200: 2.10 kg
KS202 (Open Fram): 1.90 kg
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UL, Compliant with IEC 60945 (Protected B)
Packing List
Packing List
1 KS200/KS202 Touch Panel PC
1 Poron foam
1 24V power adapter
3 Terminal blocks
1 Quick Installation Guide
Note: Please choose "KS200/KS202 product page > Download button" to download the Driver and Manual.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KS202     Part Number :
     750-KS2020-000G     Description :
    7" Panel PC, TI® AM3517 ARM, Resistive Touch, DC input, R10
  • Model Name :
    KS200     Part Number :
     750-KS2000-000G     Description :
    7" Panel PC, TI® AM3517 ARM, Aluminum Front Bezel, Resistive Touch, DC input, R10
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Wall Mount     Part Number :
     785-PPCWMK     Description :
    Standard Panel PC Wall Mount kit
  • Item Name :
    Panel Mount     Part Number :
     785-070PMK     Description :
    7" Panel PC Panel Mount kit

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
