KS310-IMX6｜NXP｜Industrial Panel PCs & Displays｜DFI

KS310-IMX6
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Panel PCs & Displays Fanless Touch Panel PC KS310-IMX6
  • 10.1" TFT Touch ARM-Based Fanless Panel PC
  • 4GB eMMC onboard
  • 1 SD card socket
  • 1 HDMI, 2 USB 2.0, 1 USB Client, 1 LAN, 2 COM, 12-bit DIO
  • Wide voltage 12~36V DC-in
  • 15-Year CPU Life Cycle Support Until Q4' 27 (Based on NXP Roadmap)

Status : Launched BUY ONLINE (US)

Low Power Consumption
Wide Voltage: 12V~36V DC-in
Fanless Design
Android
HDMI
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
KS310-IMX6 Embedded Solution Powered by:
BT253

BT253

BT253 4" SBC

4" SBC, Intel Atom® Processor E3800, 2GB/4GB DDR3L, 3 Mini PCIe, 1 VGA, 1 LVDS, 1 HDMI

KS310-IMX6 Related Tags

#NXP i.MX6 Series#NXP#Mini PCIe#Fanless Design#Android#HDMI#DDR3#Low Power Consumption#RoHS Certification#CE Certification#FCC Certification

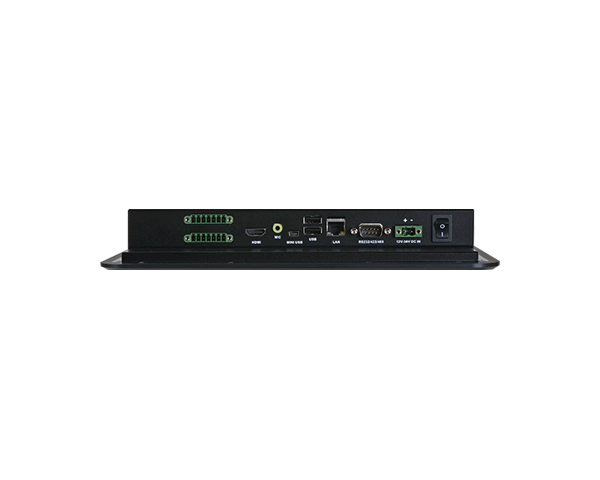

KS310-IMX6 10" Light Industrial Touch Panel PC
KS310-IMX6 10" Light Industrial Touch Panel PC

Related Products:

Select All - Clear
System
Processor
Freescale i.MX 6 series processor
i.MX6L: i.MX 6DualLite at 1.0GHz, two cortex-A9 cores
Memory
2GB DDR3 Memory Down
Display and Touch Screen
Display
10.1” 1024x600 TFT LCD Panel with Capacitive Touch Screen
Brightness
300 cd/m²
Storage
External/Internal
1 x SD Card Socket
4GB eMMC Onboard
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB)
1 x mSATA (Mini PCIe type)
1 x SIM Card Socket (reserved for 3G/LTE module)
Ethernet
Controller
1 x Atheros AR8033 Ethernet PHY (10/100Mbps, 1Gbps data transmission)
Top I/O
Serial
1 x RS232/422/485 (DB-9)
Bottom I/O
Ethernet
1 x GbE (RJ-45)
Serial
1 x RS-232 (DB-9)
USB
2 x USB 2.0 (Type A)
1 x USB Client (Type Mini B)
Display
1 x HDMI
Audio
1 x Line-out/Mic-in
2 x Built-in 1W Speaker (left and right sides)
DIO
1 x 12-bit DIO (7-pole terminal block)
Buttons
1 x Power Switch
Power
Type
12~36V DC
Connector
2-Pole Terminal Block
OS Support
OS Support
Android 4.3
Environment
Operating Temperature
0°C ~ 55°C
Storage Temperature
-30°C ~ 80°C
Relative Humidity
85% RH at 65°C
Mechanism
Construction
Aluminum Front Bezel
Rear Cover: Sheet Metal
IP Rating
IP65 Front Panel Protection
Mounting
Wall mount (VESA 75x75)
Panel mount (mounting clamp)
Dimensions (W x H x D)
293mm x 204mm x 43.4mm (W x H x D)
Weight
1.74 kg
Standards and Certifications
Shock
Operating: 3G peak acceleration (11 m sec. duration)
Non-operating: 10G peak acceleration (11 m sec. duration)
IEC 68-2-64 compliant
Vibration
Operating: random 1G, 5~500 Hz
Non-operating: Sine wave, 2G, 10~500Hz
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 KS310-IMX6 Touch Panel PC
1 Quick Installation Guide
Note: Please choose "KS310-IMX6 product page > Download button" to download the Driver and Manual.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KS310-204P6L     Part Number :
     750-KS3100-200G     Description :
    10.1" Touch Panel PC, Freescale i.MX6 DualLite, 2GB DDR3, 4GB eMMC, RJ-45, HDMI, SD card socket, 2 USB, 2 COM, 12-bit DIO, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power Adapter     Part Number :
     671-106012-000G     Description :
    60W, 12V/5A, Level 6, RoHS
  • Item Name :
    Panel Mount     Part Number :
     761-KS2020-000G     Description :
    10.1" Panel PC Panel Mount kit
  • Item Name :
    Wall Mount     Part Number :
     761-TPC000-000G     Description :
    Standard Panel PC Wall Mount kit
  • Item Name :
    Power Cord     Part Number :
     785-PWRD     Description :
    Power cord, Standards (USA/EUR/CH), 1.8m, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
