M2A-eDP/LVDS|Industrial Motherboards|DFI

M2A-eDP/LVDS
Home Industrial Motherboards Peripherals M2A-eDP/LVDS
  • CHIP: PTN3460
  • PORT: M.2 A Key
  • INTERFACE: eDP/LVDS
  • DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
  • Module Boards

Status : Sample Available QUOTE NOW

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

M2A-eDP/LVDS Related Tags

#LVDS#eDP#M.2
M2A-eDP|Industrial Motherboards|DFI
M2A-eDP|Industrial Motherboards|DFI
M2A-eDP|Industrial Motherboards|DFI
M2A-LVDS|Industrial Motherboards|DFI
M2A-LVDS|Industrial Motherboards|DFI
M2A-LVDS|Industrial Motherboards|DFI
Specifications
Features
 • CHIP: PTN3460
 • FEATURES:
  - LVDS: Resolution up to 1920x1200 @ 60Hz
  - eDP: Resolution up to 4096x2160 @ 60Hz
 • I/O PORTS: 1 eDP/LVDS port
 • APPLIED MODEL:
  - RPP171/RPP173
  - RPS100
  - ADN171/ADN173
 • TEMPERATURE:
  - Operating: -40°C to 85°C
  - Storage: -40°C to 85°C
 • HUMIDITY: 5% to 90%
 • DIMENSIONS: 30 x 42 mm (Stand off at 30 x 30 mm)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :

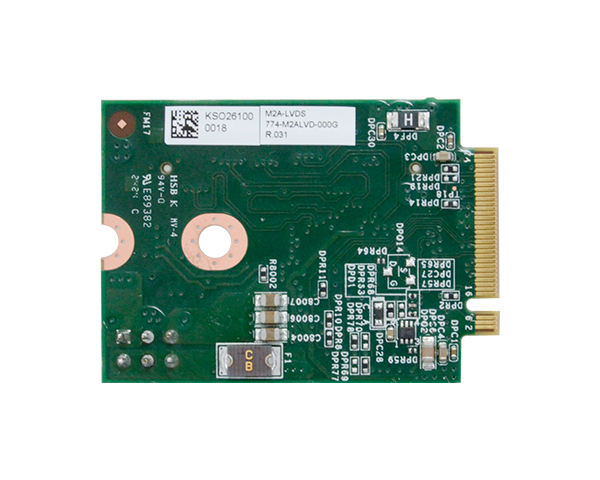

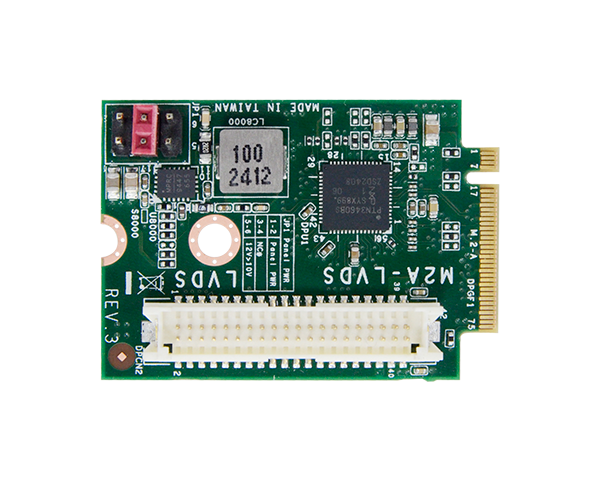

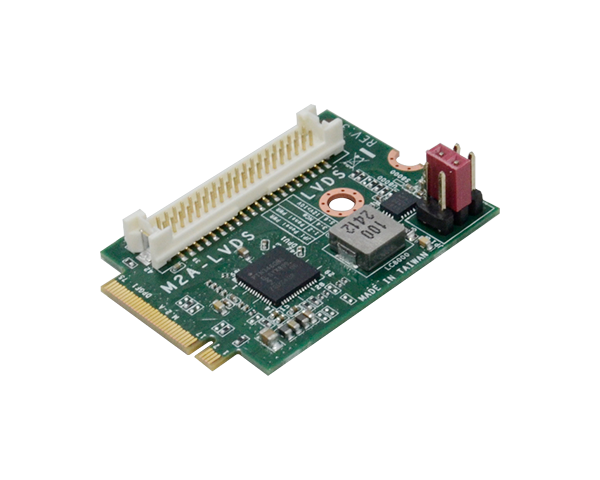

    M2A-LVDS
    Part Number :
    774-M2ALVD-000G
    Description :
    DFI M.2 A key DP-to-LVDS Display Module
  • Model Name :

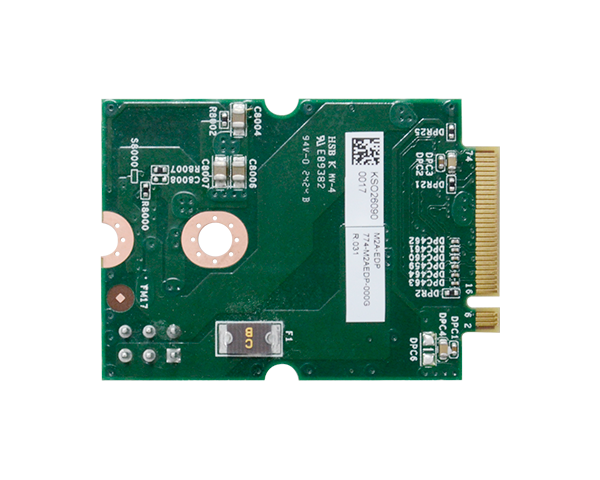

    M2A-EDP
    Part Number :
    774-M2AEDP-000G
    Description :
    DFI M.2 A key DP-to-EDP Display Module
