WM343-CMS|Intel®|Industrial Computers|DFI

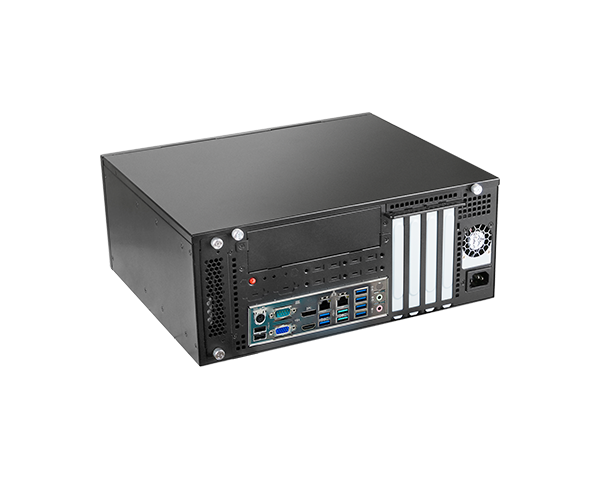

WM343-CMS
Home Industrial Computers Mini-ITX/ATX System & Chassis WM343-CMS
  • 10th Generation Intel® Core™ Processors
  • Triple independent display : VGA + DP++ + HDMI
  • Diverse Storage : 3.5"/2.5" SATA + 5.25" optical drive bay
  • Multiple Expansion : 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 M.2 M Key, 1 M.2 E Key
  • 15-Year CPU Life Cycle Support Until Q2' 34

Status : Launched QUOTE NOW

4K2K Display
PCIe x16
Windows
Linux
HDMI
VGA
15 Years CPU Life Cycle Support
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

WM343-CMS Related Tags

#Intel#4K2K Display#PCIe x16#Windows#Linux#HDMI#VGA#DP#DDR4#RoHS Certification#CE Certification#FCC Certification#UKCA Certification
WM343-CMS
WM343-CMS
WM343-CMS
System
Processor
10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W
Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W
Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W
Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W
Chipset
Intel® Q470E/H420E Chipset
Memory
Q470E: Four 288-pin Non-ECC UDIMM up to 128GB
H420E: Two 288-pin Non-ECC UDIMM up to 64GB
Dual Channel DDR4 2400/2666/2933MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x DP++
1 x HDMI 1.4b
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
Triple Displays
Q470E: VGA + DP++ + HDMI
H420E: VGA + DP++ / VGA + HDMI / DP++ + HDMI
Storage
External
1 or 2 x 3.5"/2.5" SATA 3.0 drive bays (1 x 3.5" SATA drive bay, by default)
1 x 5.25" Optical drive bay
Internal
1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and intel RST support)
1 x M.2 2230 E Key (USB 2.0/PCIe)
Interface
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)
2 x PCI
Audio
Audio Codec
Realtek ALC888
Interface
1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)
Ethernet
Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) (Q470E: Core i9/ i7/i5 supports iAMT)
LED
Indicators
1 x Power LED
1 x HDD LED

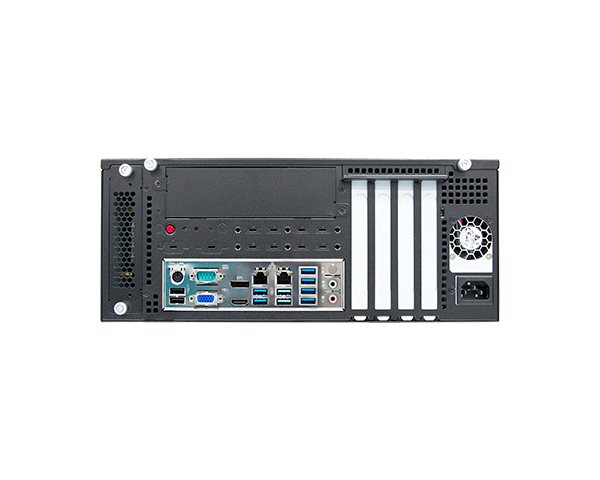

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
2 x USB 3.2 Gen2
2 x USB 3.2 Gen1 (Up to 6 x USB 3.2 Gen1, MOQ required)
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
1 x DP++
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)
Buttons
1 x Power button
1 x Reset button
Cooling
Fan

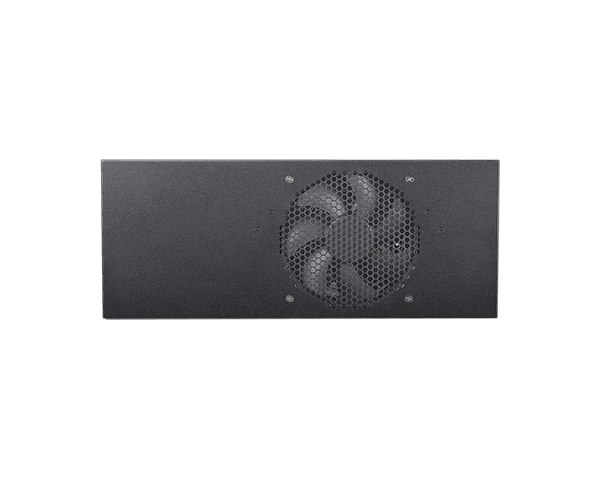

1 x 12cm System Fan
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM1.2/2.0 (optional)
Power
Supply
Flex ATX 150W/250W/350W/400W/500W (250W Default)
OS Support
Microsoft
Windows 10
Linux
Linux
Environment
Operating Temperature
0 to 45°C
Storage Temperature
0 to 50°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Dimensions
349mm x 140.2mm x 290.9mm (13.74" x 5.52" x 11.45")
Construction
Sheet metal
Mounting
Wall mount
Weight
7.7kg
Color
no coating or black coating
Standards and Certifications
Shock
Operating: 3G Non-operating: 5G
Vibration
Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G
Package Drop
ISTA Project 1A
Certifications
CE, FCC Class A, RoHS, UKCA
Packing List
Packing List
1 WM343-CMS330 System Unit
1 CPU Cooler (65W)
4 HDD Screws
1 System Fan
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    WM343-CMS330-H420E
    Part Number :
    750-WM343A-000G
    Description :
    WM343-CMS, uATX System, Black, CMS330-H420E, 250W, F/G SYSTEM RoHS
  • Model Name :
    WM343-CMS330-Q470E
    Part Number :
    750-WM343A-500G
    Description :
    WM343-CMS, uATX System, Black, CMS330-Q470E, 500W, F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Wall Mount
    Part Number :
    761-WM3410-000G
    Description :
    ACCESSORY WALL MOUNT KITS WM34x Series RoHS
  • Item Name :
    CPU Cooler
    Part Number :
    761-103004-000G
    761-103001-000G
    Description :
    35W
    95W-125W
