CMS330-Q470E/H420E

Industrial Motherboards microATX CMS330-Q470E/H420E
  • 10th Gen Intel® Core™ with Intel® Q470E/H420E chipset
  • 2 DDR4 UDIMM up to 128GB
  • Three display ports: VGA, DP++, HDMI
  • VGA resolution up to 1920x1200 @ 60Hz, DP++ resolution up to 4096x2160 @ 60Hz, HDMI resolution up to 4096x2160 @ 24Hz
  • Multiple expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI, M.2 M & E key, 4 SATA 3.0
  • Rich I/O: 2 GbE, 6 COM, 2 USB 3.2, 2 USB 3.2 Gen1, 2 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Preliminary

4K2K Display
PCIe x16
Multiple Expansion
DDR4
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CMS330
CMS330
CMS330
System
Processor
10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W
Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W
Intel® Pentium® G6400TE (2 Cores, 4M Cache, 3.2 GHz); 35W
Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W
Chipset
Intel® Q470E/H420E Chipset
Memory
Q470E: Four 288-pin Non-ECC UDIMM up to 128GB
H420E: Two 288-pin Non-ECC UDIMM up to 64GB
Dual Channel DDR4 2400/2666/2933MHz
BIOS
Insyde SPI 256Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x DP++
1 x HDMI 1.4b
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
Multiple Display
Q470E: VGA + DP++ + HDMI
H420E: VGA + DP++ / VGA + HDMI / DP++ + HDMI
Expansion
Interface
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)
2 x PCI
Q470E:
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and intel RST support)
1 x M.2 2230 E key (USB 2.0/PCIe)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) (Q470E: Core i9/ i7/i5 supports iAMT)

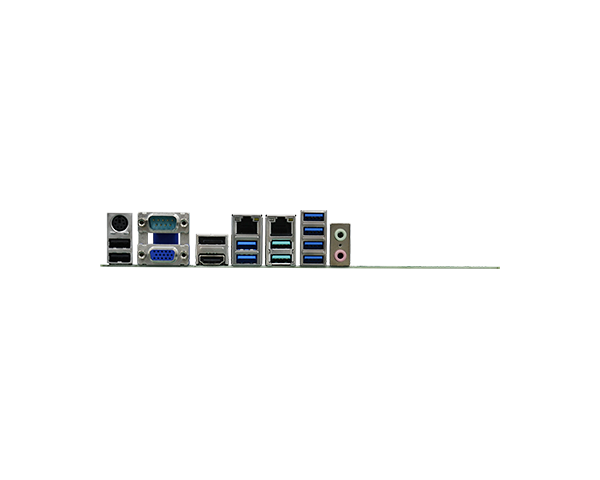

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
2 x USB 3.2 (Q470E: Gen2; H420E: Gen1)
2 x USB 3.2 Gen1 (Q470E: Up to 6 x USB 3.2 Gen1, MOQ required)
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
1 x DP++
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)
Internal I/O
Serial
5 x RS-232 (2.54mm pitch) (Up to 9 x RS-232, MOQ required)
USB
2 x USB 3.2 Gen 1
Q470E: 4 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
H420E: 2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
1 x USB 2.0 Vertical Type A (Q470E default SKU)
Audio
1 x Front Audio Header
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s, SATA 3) (Q470E: RAID 0/1/5/10)
DIO
1 x 16-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM2.0 (opt., MOQ required)
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux Ubuntu 20.04
Environment
Temperature
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
micro ATX Form Factor
244mm (9.6") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: TBD Bottom Side: TBD
Packing List
Packing List
• 1 CMS330 motherboard
• 1 COM port cables (Length: 300mm, 2 x COM ports) A81-015026-023G
• 1 Serial ATA data cable (Length: 500mm) 332-553001-005G
• 1 I/O shield TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
