GM831-CSF|Intel®|Industrial Computers|DFI

GM831-CSF
Home Application-Specific System Gaming Embedded System GM831-CSF
  • 8th/9th Generation Intel® Core™ with Intel® Q370/H310
  • Modularized gaming box discrete gaming I/O card & PSU module
  • Three independent displays: DP++, DVI-D, HDMI
  • Multiple expansion slots: 1 PCIe x16, 2 PCIe x4, 1 mini PCIe, 1 M.2 M key support NVMe
  • Rich I/O connectivity: 2 Intel GbE, 4 USB 3.1, 6 USB 2.0, 3 COM
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

Fanless Design
4K2K Display
Linux
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification
UKCA Certification

GM831-CSF Related Tags

#Intel#Mini PCIe#Fanless Design#4K2K Display#PCIe x16#Windows#HDMI#DVI-I#DVI-D#DP#12V DC-in#DDR4#CE Certification#FCC Certification#Gaming
System
Processor
8th/9th Generation Intel® Core™ LGA 1151 Socket Processors:
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
Chipset
Intel® Q370/H310 Chipset
Memory
Four 288-pin DIMM up to 64GB
Dual Channel DDR4 2400/2666 MHz
BIOS
Insyde or AMI UEFI (Supports hash and public key validation)
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x HDMI
1 x DVI-I (DVI-D signal)
1 x DP++
HDMI 2.0a: resolution up to 4096x2160 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2106 @ 60Hz
Triple Displays
DVI-D + HDMI + DP++
Storage
Interface
5 x SATA 3.0
1 x 2.5” SSD Bay
Expansion
Interface
1 x PCIe x16 (Gen 3)
2 x PCIe x4 (Gen 3)
1 x mini PCIe (PCIe/mSATA/USB2.0)
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe)
Support AMD E9260 Graphic card 180(L)x115(H)mm; up to 75W
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1x Intel i219LM PCIe (10/100/1000Mbps) with iAMT 12.0 (only Core i7/ i5 supports iAMT)
1x Intel I211at PCIe (10/100/1000 Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
I/O
Ethernet
2 x GbE (RJ-45)
Serial
COM1 : RS-232/422/485 DB9 (RS-232 w/ power)
COM3: RS-232
COM4: RS-232
USB
2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
6 x USB 2.0
Display
1 x HDMI
1 x DVI-I (DVI-D signal)
1 x DP++
Audio
1x Line-out
1x Line-in (colay,opt. by request, MOQ required)
1xMic-in
PS/S
1x PS/2 (mini-DIN-6)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM 1.2/ 2.0 (Available upon request, MOQ required)
Gaming
Intrusion Detection
6 x Intrusion Dections ( one is already applied to PC BOX)
Operates with and without AC power
Logs Date/ Time of latest 64 events
5 Years data retention during AC off
NVRAM
Supports up to 16Mbyte
Coin Battery backup to Retain Data for 5 years during AC off
Support Battery voltage monitoring & Warning
DI/DO
32-bit Digital Input
32-bit OC output (29-bit x 500mA, disconnect detection for up to 8 meters; 3-bit x 3A)
Power
Type
Flex-ATX 250W (optional )
Connector
12V DC-in , 24-pin ATX power
OS Support
OS Support
Windows 10(64bit)
Ubuntu 18.04 LTS 64bit
Software
Supplied with gaming function SDK
Environment
Operating Temperature
0~45°C
Storage Temperature
-20~85°C
Relative Humidity
5%~90%
Mechanism
Mounting
Wall Mount
Dimensions (W x H x D)
275x146.3x296.43mm (without PSU & mounting kits)
365x145.3x296.43 (with PSU & without mounting kits)
Weight
4.88 kg (w/o PSU)
6.08 kg (w/ PSU)
Standards and Certifications
Shock
Operation:
IEC 60068-2-64 Test Fh: Vibration board-band random test
Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Non-Operation:
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
Operation:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random,1Grms @ 5~500 Hz, 30min.
Non-Operation:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep sine, 2Grms @ 10~500Hz, 30min.
Certifications
CE, FCC class A
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :

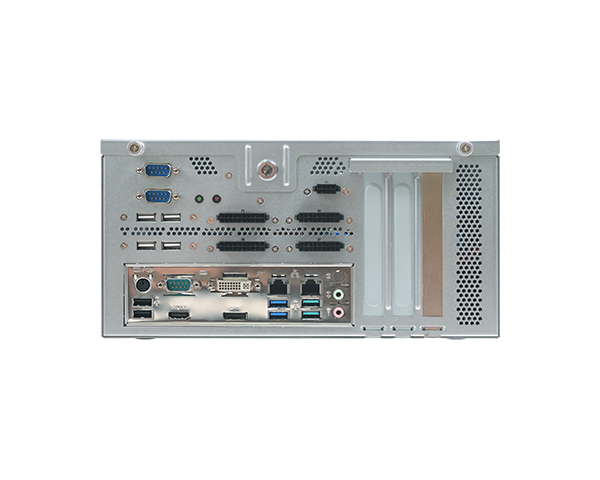

    GM831-CSF (without PSU)
    Part Number :
    750-GM8310-000G
    Description :
    GM831-CSF: CS331-Q370, 3 COM, 10 USB, 2 LAN, 1 HDMI, 1 DVI, 1 DP, 6 Intrusion, 32 input, 32 output, PCIe x16, F/G SYSTEM RoHS
  • Model Name :

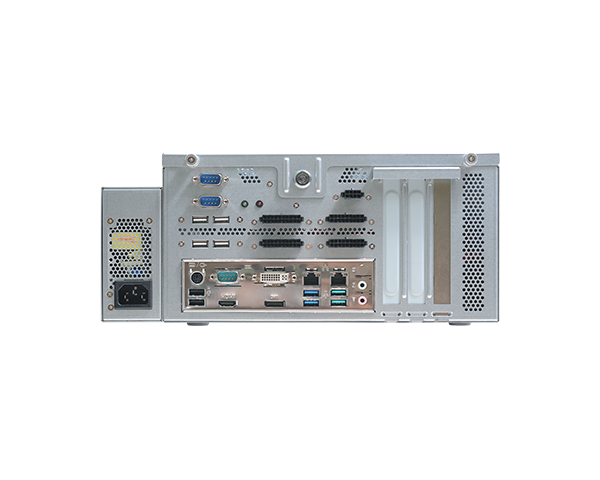

    GM831-CSF (withPSU)
    Part Number :
    750-GM8310-100G
    Description :
    GM831-CSF: CS331-Q370, 3 COM, 10 USB, 2 LAN, 1 HDMI, 1 DVI, 1 DP, 6 Intrusion, 32 input, 32 output, PCIe x16, F/G SYSTEM RoHS, Power supply
