GM341-GHF｜AMD®｜Industrial Computers｜DFI

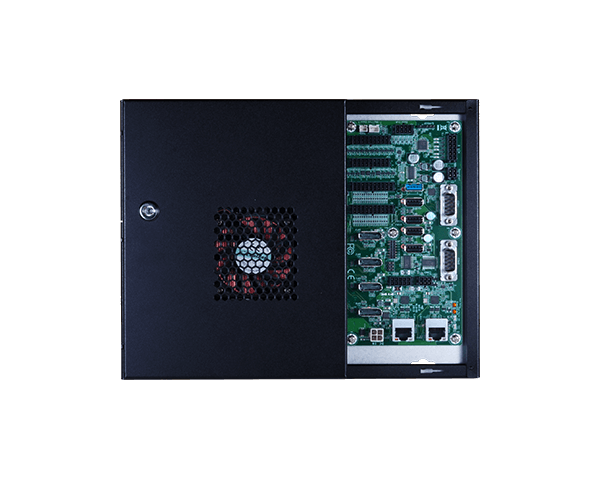

GM341-GHF
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Application-Specific System Gaming Embedded System GM341-GHF
  • AMD® Ryzen™ Embedded V1000/R1000 processors
  • High performance Radeon™ VEGA series graphics
  • 4 DP++ 4K monitor support (V1000)
  • Comprehensive gaming features
  • 5 COM, 6 USB, 2 LAN and M.2 support
  • 12V DC single input
  • 10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)

Status : Launched BUY ONLINE (US)

4K2K Display
1G Ethernet
DP
12V DC-in
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
DFI Proprietary Motherboard

GM341-GHF Related Tags

#AMD#4K2K Display#1G Ethernet#Windows#Linux#DDR4#RoHS Certification#Gaming
GM341-GHF | AMD Ryzen V1000/R1000 Series | Industry-Specific Embedded System | DFI
GM341-GHF | AMD Ryzen V1000/R1000 Series | Industry-Specific Embedded System | DFI

Related Products:

Select All - Clear
System
Processor
AMD® Ryzen™ Embedded V1807, Quad Core, 2MB Cache, 11 CU, 3.35GHz (3.8GHz), 35-54W
AMD® Ryzen™ Embedded V1756, Quad Core, 2MB Cache, 8 CU, 3.25GHz (3.6GHz), 35-54W
AMD® Ryzen™ Embedded V1605, Quad Core, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W
AMD® Ryzen™ Embedded V1202, Dual Core, 1MB Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W
AMD® Ryzen™ Embedded R1000 series
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 3200MHz
BIOS
AMI BIOS (supports hash and public key validation)
Graphics
Controller
AMD® Radeon™ Vega Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
4 x DP++
DP++: resolution up to 4096x2160 @ 60Hz
Storage
External/Internal
2 x SATADOM with 7-pin VCC Support
Expansion
Interface
1 x M.2 M Key (2280, PCIe x2, only support for V1000)
Note: No SATA support
Audio
Audio Codec
5.1 Channel Audio Output
S/PDIF Digital Output
Stereo 10W+10W Class D Audio AMP Output
Ethernet
Controller
2 x Realtek Ethernet LAN Controller (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232
1 x RS-232/422/485
1 x RS-232 (Tx, Rx)/ccTalk
2 x RS-232 (Tx, Rx)/SAS/BACTA
USB
2 x USB 3.0
4 x USB 2.0
Display
4 x DP++ (V1000)
3 x DP++ (R1000)
Buttons
1 x Power Button
1 x Reset Button
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 1.2/2.0
Gaming
Intrusion Detection
8 x Intrusion Detections
Operates With and Without AC Power
Logs Date/Time of Last 64 Events
5 Years Data Retention during AC off
NVRAM
Supports up to 16Mbyte
Coin Battery Backup to Retain Data for 5 Years during AC off
Supports Battery Voltage Monitoring & Warning
DI/DO
32-bit Digital Input
32-bit OC output (29-bit x 500mA, support 8 meter with disconnect detection; 3-bit x 3A)
Power
Type
12V
Connector
4-pin Vertical Connector
OS Support
OS Support
Windows 10 (64-bit)
Linux
Environment
Operating Temperature
0 to 45°C
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Mounting
Wall Mount
Dimensions (W x H x D)
270mm x 63mm x 200mm
Weight
2.6 kg
Standards and Certifications
Shock
Operation:
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Non-Operation:
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
Operation:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min.
Non-Operation:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep sine, 3Grms @ 10~500Hz, 30min.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    GM341-GHF-1807     Part Number :
     750-GM3410-000G     Description :
    AMD Ryzen Embedded V1807B, 4 DP++, 5 COM, 6 USB, 8MB NVRAM, 12V DC, half cover, CPU FAN
  • Model Name :
    GM341-GHF-1756     Part Number :
     750-GM3410-100G     Description :
    AMD Ryzen Embedded V1756B, 4 DP++, 5 COM, 6 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN
  • Model Name :
    GM341-GHF-1605     Part Number :
     750-GM3410-200G     Description :
    AMD Ryzen Embedded V1605B, 4 DP++, 5 COM, 6 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN
  • Model Name :
    GM341-GHF-1202     Part Number :
     750-GM3410-300G     Description :
    AMD Ryzen Embedded V1202B, 4 DP++, 5 COM, 6 USB, 4MB NVRAM, 12V DC, half cover, CPU FAN
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power Adapter and Cable     Part Number :
     671-115001-000G
    A81-004110-009G     Description :
    150W adapter; Input:100~240V; Output:12V/12.5A
    Power Cable, DC 5.5*2.5 to 2*2P/4.2mm, L=200mm
  • Item Name :
    SATADOM     Part Number :
     638-706410-100G
    638-703212-110G     Description :
    64GB, MLC, Pin7 VCC
    32GB, MLC, Pin7 VCC
  • Item Name :
    M.2     Part Number :
     638-706411-100G
    638-703213-100G     Description :
    64GB M.2 P80 3ME2
    32GB M.2 P80 3ME2
  • Item Name :
    Memory     Part Number :
     138-540002-101G
    138-580004-101G
    138-5G0163-100G     Description :
    4GB DDR4 2400 SO-DIMM
    8GB DDR4 2400 SO-DIMM
    16GB DDR4 2400 SO-DIMM
  • Item Name :
    Win 10 License     Part Number :
     921-151150-000G
    921-151160-000G     Description :
    Win10 IoT Ent LTSB 2016 MultiLang OEI Value EPKEA
    Win10 IoT Ent LTSB 2016 MultiLang OEI Entry EPKEA
  • Item Name :
    Gaming Testing Kit     Part Number :
     770-GM9001-080G






    Description :
    GM900 Testing Board (774-GM9001-080G)
    6 x Intrusion detection; 2x4p cable (A81-009231-016G)
    1 x Intrusion detection; 1x2p cable (A81-009232-016G)
    16 x DI; 2x10p cable (A81-009233-016G)
    16 x DI; 2x10p cable, (A81-009234-016G)
    16 x DO; 2x9p cable (A81-009235-016G)
    16 x DO; 2x9p cable (A81-009236-016G)
    USB type B to type A cable (A81-001073-016G)
