CS170-H310｜Intel®｜Industrial Motherboards｜DFI

CS170-H310
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards Mini-ITX CS170-H310
  • 8th/9th Generation Intel® Core™ Processors
  • 2 DDR4 2400/2666MHz SODIMM up to 32GB
  • Dual independent display: LVDS + VGA, LVDS + DP++, VGA + DP++, DP++ + DP++
  • DP++ resolution supports up to 4096x2304 @ 60Hz
  • Multiple Expansions: 1 PCIe x16 Gen 3, 1 M.2 2230 E Key, 1 M.2 2280 M Key
  • Storage: 2 SATA 3.0
  • Rich I/O: 2 Intel GbE, 2 COM, 4 USB 3.1 Gen 1, 2 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q3' 34 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

4K2K Display
ECC Memory
Multiple Expansion
12V DC-in
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

CS170-H310 Related Tags

#IoT#Intel#4K2K Display#PCIe x16#Windows#Linux#VGA#DP#Multiple Expansion#DDR4#RoHS Certification

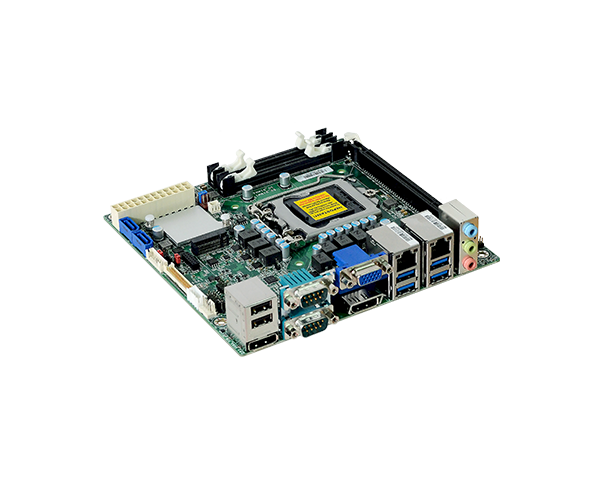

Mini IX Motherboard Front
Mini IX Motherboard Side

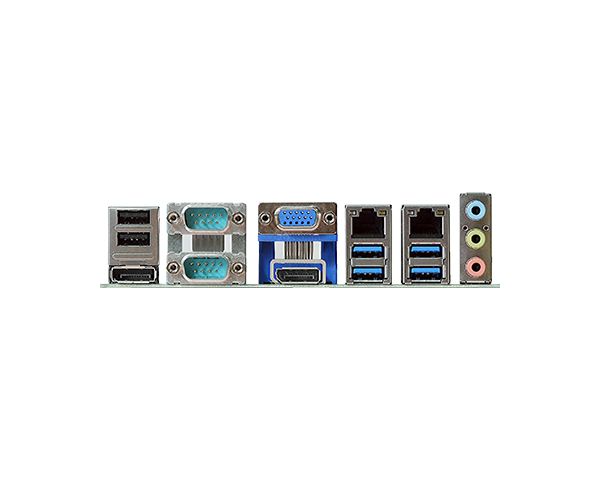

Mini IX Motherboard I/O

Related Products:

Select All - Clear
System
Processor
9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 95W
Intel® Xeon E-2278GE Processor (Core 8; Max speed 4.7 GHz; TDP 80W) (support ECC memory)
Intel® Core i9-9900K Processor (Core 8, Max speed 5.0 GHz; TDP 95W) (Non-LTS)
Intel® Core i7-9700E Processor (Core 8; Max speed 4.4 GHz; TDP 65W)
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W) (support ECC memory)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W) (support ECC memory)
8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 95W
Intel® Xeon E-2176G Processor (Core 6; Max speed 4.7 GHz; TDP 80W) (support ECC memory)
Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6 GHz; TDP 65W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1 GHz; TDP 65W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6 GHz; TDP 65W) (support ECC memory)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W) (support ECC memory)
Intel® Pentium G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W) (support ECC memory)
Intel® Celeron G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W) (support ECC memory)
Chipset
Intel® H310 Chipset
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2400/2666MHz
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® UHD Graphics 630 (Pentium G5400 and Celeron G4900 support Intel® UHD Graphics 610)
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x LVDS
1 x VGA
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
VGA: resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
Dual Displays
LVDS + VGA, LVDS + DP++, VGA + DP++, DP++ + DP++
Expansion
Interface
1 x PCIe x16 (Gen3) (Max. 75W)
1 x M.2 2280 M Key (PCIe x1 Gen2) (support NVMe)
1 x M.2 2230 E Key (USB/PCIe x1 Gen2)
Audio
Audio Codec
Realtek ALC888/887
Ethernet
Controller
1 x Intel® I219V PHY (10/100/1000Mbps)
1 x Intel® I210AT PCIe (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
2 x RS-232 (DB-9)
USB
4 x USB 3.1 Gen1
2 x USB 2.0
Display
1 x VGA (DB-15)
2 x DP++
Audio
1 x Line-out
1 x Mic-in
1 x Line-in
Internal I/O
USB
2 x USB 2.0
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio
1 x Front Audio (2.00mm pitch)
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
1 x DIO Power
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM2.0 (default)
Power
Type
ATX
Connector
4-pin ATX 12V power
24-pin ATX power
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 20mm, Bottom Side: 3mm
Packing List
Packing List
1 CS170 motherboard
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-CVL000-A10G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CS170-H310DB     Part Number :
     770-CS1702-000G     Description :
    2 HDMI/DP++, 2 DDR4, 2 LAN, 2 COM, LVDS, 1 M.2 M key, 1 M.2 E key, 2 SATA3.0, 24-pin ATX, 4 USB3.1 Gen1, 2 USB 2.0, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB port cable     Part Number :
     A81-001032-016G     Description :
    Length: 200mm
  • Item Name :
    Serial ATA data with power cable     Part Number :
     332-553001-005G     Description :
    Length: 500mm
  • Item Name :
    Thermal solution     Part Number :
     A71-103004-000G
    A71-101158-000G
    761-103001-000G     Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
    For 95W, Height: 77.2mm

Based on 8th Gen Intel® Core™ Processors
