KD171|Intel®|Industrial Motherboards|DFI

KD171
Home Industrial Motherboards Mini-ITX KD171
  • 7/6th Gen Intel® Core™ with Intel® Q170/H110
  • Rich I/O: 2 GbE, 6 COM, 3 USB 3.0, 6 USB 2.0
  • Expansion: 1 PCIe x16
  • Three independent displays: DP++ + DP++ + HDMI (Q170)
  • 2 DDR4 UDIMM up to 32GB
  • Storage: 2 SATA 3.0
  • 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
4K2K Display
PCIe x16
12V DC-in
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

KD171 Related Tags

#Intel#4K2K Display#PCIe x16#Windows#Linux#HDMI#DP#DDR4#RoHS Certification#CE Certification#FCC Certification
KD171
KD171
System
Processor
6th/7th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® CoreTM i7-7700T Processor, Quad Core, 8M Cache, 2.9GHz (3.8GHz), 35W
Intel® CoreTM i5-7500T Processor, Quad Core, 6M Cache, 2.7GHz (3.3GHz), 35W
Intel® CoreTM i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 54W
Intel® CoreTM i3-7101TE Processor, Dual Core, 3M Cache, 3.4GHz , 35W
Intel® Celeron® G3930, Dual Core, 3M Cache, 2.9GHz, 51W
Intel® Celeron® G3930E, Dual Core, 3M Cache, 2.9GHz, 54W
Intel® CoreTM i7-6700TE, Quad Core, 2.4GHz (3.4GHz), 35W
Intel® CoreTM i5-6500TE, Quad Core, 2.3GHz (3.3GHz), 35W
Intel® CoreTM i3-6100, Dual Core, 3.7GHz, 51W
Intel® CoreTM i3-6100TE, Dual Core, 2.7GHz, 35W
Intel® Pentium® G4400, Dual Core, 3.3GHz, 54W
Intel® Pentium® G4400TE, Dual Core, 2.4GHz, 35W
Intel® Celeron® G3900, Dual Core, 2.8GHz, 51W
Intel® Celeron® G3900TE, Dual Core, 2.3GHz, 35W
Chipset
Intel® Q170/H110
Memory
Two 288-pin UDIMM up to 32GB
Dual Channel DDR4 2133/2400 MHz
BIOS
Insyde SPI
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
2 x Full Size DP++
1 x HDMI 1.4 (optional)
Full Size DP++: resolution up to 4096x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
Triple Displays
Q170: DP++ + DP++ + HDMI
H110: DP++ + DP ++, DP++ + HDMI
Expansion
Interface
1 x PCIe x16 (Gen 3) (Max. 75W)
Ethernet
Controller
2 x GbE (10/100/1000Mbps)
2 x Realtek® 8111HN or 8119 (opt.)

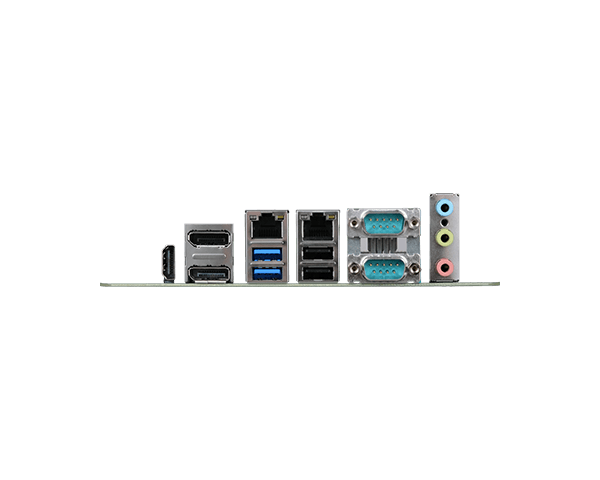

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
2 x RS-232 (DB-9)
USB
2 x USB 3.0
2 x USB 2.0
Display
2 x Full Size DP++
1 x HDMI 1.4 (optional)
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
Internal I/O
Serial
4 x RS-232 (Tx, Rx only)
USB
1 x Vertical USB 3.0
4 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM 2.0 (opt.)
Power
Type
12V DC
Connector
Vertical Type Connector (4-pin)
DC-Jack (optional)
Consumption
Idle: i7-7700 65W: 12V @ 0.85A (10.2W)
Max: i7-7700 65W: 12V @ 9.16A (109.92W)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 LTSB (64 bits)
Window 7 (32/64bit) for 6th Generation Processors
Linux
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
KD171-Q170: 1,454,376 hrs @ 25°C; 737,553 hrs @ 45°C ; 447,012 hrs @ 60°C
KD171-H110: 1,454,376 hrs @ 25°C; 737,553 hrs @ 45°C ; 447,012 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Standards and Certifications
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 KD171-Q170/H110 motherboard
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 Serial ATA power cable (Length: 260mm) A81-000008-018G
1 COM port cable (Length: 300m) A81-015041-018G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KD171-H110
    Part Number :
    770-KD1711-000G
    Description :
    2 DDR4 UDIMM, 2 LAN, 6 COM, 9 USB, 0 to 60°C
  • Model Name :
    KD171-Q170
    Part Number :
    770-KD1711-100G
    Description :
    2 DDR4 UDIMM, 2 LAN, 6 COM, 9 USB, 0 to 60°C
  • Model Name :
    KD171-H110
    Part Number :
    770-KD1711-200G
    Description :
    2 DDR4 UDIMM, 2 LAN, 6 COM, 9 USB, 12V 4-pin vertical, 0 to 60°C
  • Model Name :
    KD171-Q170
    Part Number :
    770-KD1711-300G
    Description :
    2 DDR4 UDIMM, 2 LAN, 6 COM, 9 USB, 12V 4-pin vertical, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm
  • Item Name :
    Serial ATA power cable
    Part Number :
    A81-000008-018G
    Description :
    Length: 260mm
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm
  • Item Name :
    Thermal solution
    Part Number :
    A71-103004-000G
    A71-101158-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
  • Item Name :
    I/O shield
    Part Number :
    A49-KD1710-010G
    Description :

Best Budget 7th Generation Core™ Processor Based Motherboards
