KU171/KU173
Home Industrial Motherboards Mini-ITX KU171/KU173
  • 7th Gen Intel® Core™ Thin Mini-ITX
  • 2 DDR4 1866/2133MHz SODIMM up to 32GB
  • Three independent displays: LVDS*/eDP + DP++ + DP++
  • Multiple expansion: 1 PCIe x4, 1 M.2 M Key (SATA/PCIe)
  • 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
Wide Voltage: 12V~36V DC-in
4K2K Display
Multiple Expansion
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

KU171/KU173 Related Tags

#IoT#Intel#Mini PCIe#4K2K Display#Windows#Linux#DP#Multiple Expansion#DDR4#RoHS Certification
KU171-173 Mini-ITX
KU171-173 Mini-ITX
KU171-173 Mini-ITX
System
Processor
7th Generation Intel® Core™ Processors, BGA 1356 Socket
Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.80 GHz (3.90 GHz), 15W
Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.60 GHz (3.50 GHz), 15W
Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.40 GHz, 15W
Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.20 GHz, 15W
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Graphics GT Series
Feature
OpenGL 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1 x LVDS/eDP (eDP available upon request)
2 x DP++
LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
Triple Displays
LVDS + DP++ + DP++
eDP + DP++ + DP ++
Expansion
Interface
1 x PCIe x4 (Gen 3)
1 x Full-size Mini PCIe (PCIe/USB)
1 x M.2 2242/2260/2280 M key (SATA3.0/PCIe Gen3 x2 NVMe)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.6 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

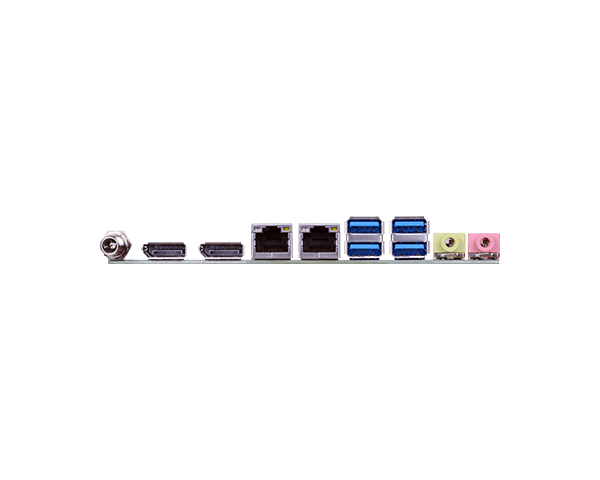

Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB 3.0
Display
2 x DP++
Audio
1 x Line-out
1 x Mic-in
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
1 x RS-232 (2.0mm pitch)
Note: The internal RS232 extension cable should not exceed 10cm in length.
USB
4 x USB 2.0 (2.0mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
1 x eDP LCD Panel Connector
(available upon request)
Audio
1 x S/PDIF
SATA
2 x SATA 3.0 (up to 6Gb/s)
2 x SATA Power
1 x SATA Connector (right angle)
RAID 0/1/5
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0 (Opt.)
Power
Type
Single 12V +/-10% DC (KU171)
Wide Range 9~36V (KU173)
Connector
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Vertical Type Connector (4-pin) (available upon request)
Consumption
Typical: i7-7600U: 12V @ 0.39A (4.68Watt); 19V @ 2.79A (33.48Watt)
Max.: i7-7600U:12V @0.28A (5.32Watt); 19V @ 1.94A (36.86Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux
Environment
Temperature
Operating: 0 to 60°C / -20 to 70°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
KU171 : 433,836 hrs @ 25°C; 252,953 hrs @ 45°C ; 161,770 hrs @ 60°C
KU173 : 416,214 hrs @ 25°C; 241,863 hrs @ 45°C ; 154,716 hrs @ 60°C
Calculation model: Telcordia Issue 2
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 16.5mm
Bottom Side: 3.5mm
Packing List
Packing List
1 KU171/KU173 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports)
1 Serial ATA data with power cable (Length: 300mm)
1 Heat sink (Height: 25mm) A71-010033-000G(0 to 60°C)/A71-010037-000G(-20 to 70°C)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KU171-NE-7300U
    Part Number :
    770-KU1711-000G
    Description :
    Fanless, Intel® Core™ i5-7300U, 2 DDR4 SODIMM, 1 LVDS, 2 DP++, 2 LAN, 2 COM, 8 USB, 2 SATA 3.0, -20 to 70°C
  • Model Name :
    KU171-NB-7100U
    Part Number :
    770-KU1711-200G
    Description :
    Fanless, Intel® Core™ i3-7100U, 2 DDR4 SODIMM, 1 LVDS, 2 DP++, 2 LAN, 2 COM, 8 USB, 2 SATA 3.0, 0 to 60°C
  • Model Name :
    KU171-NE-7600U
    Part Number :
    770-KU1711-300G
    Description :
    Fanless, Intel® Core™ i7-7600U, 2 DDR4 SODIMM, 1 LVDS, 2 DP++, 2 LAN, 2 COM, 8 USB, 2 SATA 3.0, -20 to 70°C
  • Model Name :
    KU171-NB-3965U
    Part Number :
    770-KU1711-400G
    Description :
    Fanless, Intel® Core™ 3965U, 2 DDR4 SODIMM, 1 LVDS, 2 DP++, 2 LAN, 2 COM, 8 USB, 2 SATA 3.0, 0 to 60°C
  • Model Name :
    KU173-NE-7600U
    Part Number :
    770-KU1731-000G
    Description :
    Fanless, Intel® Core™ i7-7600U, 2 DDR4 SODIMM, 1 LVDS, 2 DP++, 2 LAN, 2 COM, 8 USB, 2 SATA 3.0, -20 to 70°C
  • Model Name :
    KU173-NB-3965U
    Part Number :
    770-KU1731-200G
    Description :
    Fanless, Intel® Core™ 3965U, 2 DDR4 SODIMM, 1 LVDS, 2 DP++, 2 LAN, 2 COM, 8 USB, 2 SATA 3.0, 0 to 60°C
  • Model Name :
    KU173-NE-7300U
    Part Number :
    770-KU1731-300G
    Description :
    Fanless, Intel® Core™ i5-7300U, 2 DDR4 SODIMM, 1 LVDS, 2 DP++, 2 LAN, 2 COM, 8 USB, 2 SATA 3.0, -20 to 70°C
  • Model Name :
    KU173-NB-7100U
    Part Number :
    770-KU1731-400G
    Description :
    Fanless, Intel® Core™ i3-7100U, 2 DDR4 SODIMM, 1 LVDS, 2 DP++, 2 LAN, 2 COM, 8 USB, 2 SATA 3.0, 0 to 60°C

* If you would like to have the CPU configuration which is not listed on our ordering, please contact our sales representative

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power adapter
    Part Number :
    671-110006-100G
    671-112009-100G
    Description :
    100W, 12V
    120W, 19V
  • Item Name :
    Serial ATA data with power cable
    Part Number :
    A81-002013-000G
    Description :
    Length: 300mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015011-001G
    Description :
    Length: 250mm, 1 x COM ports
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm
  • Item Name :
    I/O shield
    Part Number :
    A49-SU1710-000G
    A49-SU1710-010G
    A49-SU1710-020G
    Description :

    Thin Type
    Thin Type Non Audio
  • Item Name :
    Heat sink
    Part Number :
    A71-010037-000G
    Description :
    Height: 32mm
