  • Intel® Pentium®/Celeron® N3000 2.5" Pico-ITX
  • 1 DDR3L SODIMM up to 8GB
  • Dual independent displays: VGA*/HDMI + LVDS
  • Expansion and Storage: 1 Mini PCIe, 1 mSATA, 1 SATA 3.0
  • Rich I/O: 1 Intel GbE, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q1' 30 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

COM ESD Protection: Air Gap ±15kv
HDMI
Mini PCIe
12V DC-in
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

BW051 Related Tags

#IoT#Intel#Mini PCIe#Windows#Linux#HDMI#VGA#DDR3L#RoHS Certification
Pico-ITX Front

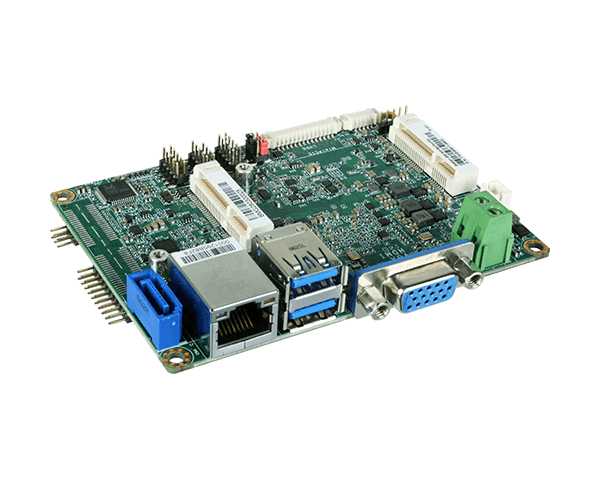

Pico-ITX Side
System
Processor
Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170
Intel Atom® Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W
Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W
Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W
Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W
Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W
Memory
One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1600MHz
BIOS
Insyde SPI 64Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display
1 x VGA/HDMI
1 x LVDS
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 1920x1080 @ 60Hz
LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
Dual Displays
VGA + LVDS, HDMI + LVDS
Expansion
Interface
1 x Half-size mSATA (SATA)
1 x Full-size Mini PCIe (PCIe/USB)
1 x Extension I/O connector (available upon request)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I211AT PCIe (10/100/1000Mbps)
Rear I/O
Ethernet
1 x GbE (RJ-45)
USB
2 x USB 3.0
Display
1 x VGA/HDMI
Internal I/O
Serial
1 x RS-232/422/485 (2.0mm pitch, right angle type)
1 x RS-232 (2.0mm pitch, right angle type)
USB
2 x USB 2.0 (2.0mm pitch)
Display
1 x LVDS LCD Panel Connector
Audio
1 x Audio (Line-out/Mic-in)
SATA
1 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
Single 12V +/-10% DC
Connector
2-pin Terminal Block
Consumption
BW051
Typical: N3710:12V @ 0.47A (5.64Watt)
Max.: N3710:12V @ 1.0864A (13.037Watt)
RTC Battery
Lithium 3V (210mAH)
OS Support
OS Support
Windows 7 (WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 32/64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
Mechanism
Dimensions
2.5" Pico-ITX Form Factor
100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6mm
Top Side: 15.5mm
Bottom Side: 8.0mm
Packing List
Packing List
1 BW051 board
1 COM port cable (Length: 300mm, 2 x COM ports) A81-015020-001G
1 Serial ATA data cable (Length: 152mm) A81-002000-000G
1 Y cable for SATA and inverter power (Length: 155mm) A81-020016-018G
1 Heat sink (Height: 19mm) A71-011065-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    BW051-BB-N3060
    Part Number :
    770-BW0512-200G
    Description :
    Fanless, Intel® Pentium®/Celeron® N3060, 1 DDR3L SODIMM, 1VGA, 1 LAN, 2 COM, 4 USB, 0 to 60°C
  • Model Name :
    BW051-BB-N3160
    Part Number :
    770-BW0512-000G
    Description :
    Fanless, Intel® Pentium®/Celeron® N3160, 1 DDR3L SODIMM, 1VGA, 1 LAN, 2 COM, 4 USB, 0 to 60°C
  • Model Name :
    BW051-BB-E8000
    Part Number :
    770-BW0512-100G
    Description :
    Fanless, Intel Atom® x5-E8000, 1 DDR3L SODIMM, 1VGA, 1 LAN, 2 COM, 4 USB, 0 to 60°C
  • Model Name :
    BW051-BB-N3160
    Part Number :
    770-BW0512-300G
    Description :
    Fanless, Intel Atom® N3160, 1 DDR3L SODIMM, 1HDMI, 1 LAN, 2 COM, 4 USB, 0 to 60°C

* N3710 and N3010 are supported upon request with MOQ requirement.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    1 Audio cable
    Part Number :
    A81-022007-016G
    Description :
    Length: 160mm
  • Item Name :
    Power adapter
    Part Number :
    671-106012-000G
    Description :
    60W, 12V, DC jack
  • Item Name :
    USB port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm
  • Item Name :
    Heat spreader
    Part Number :
    A71-808301-000G
    Description :
    Height: 11mm
  • Item Name :
    2-pole terminal to DC Jack cable
    Part Number :
    A81-004013-000G
    Description :

*

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
