FS053|NXP|Industrial Motherboards|DFI

FS053
Home Industrial Motherboards 2.5" Pico-ITX FS053
  • NXP i.MX6 Processor 2.5" Pico-ITX
  • Expansion: 1 Mini PCIe, 1 SD
  • DDR3L SDRAM memory down , up to 4GB.
  • Dual independent displays: HDMI + LVDS
  • Rich I/O: 2 GbE, 2 COM, 4 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q4' 32 (Based on NXP Roadmap)

Status : Launched QUOTE NOW

COM ESD Protection: Air Gap ±15kv
Wide-temp: -20~70°C
Wide Voltage: 9~36V DC-in
HDMI
Mini PCIe
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

FS053 Related Tags

#ARM#Mini PCIe#Android#HDMI#DDR3L#RoHS Certification#CE Certification#FCC Certification
Pico-ITX Front

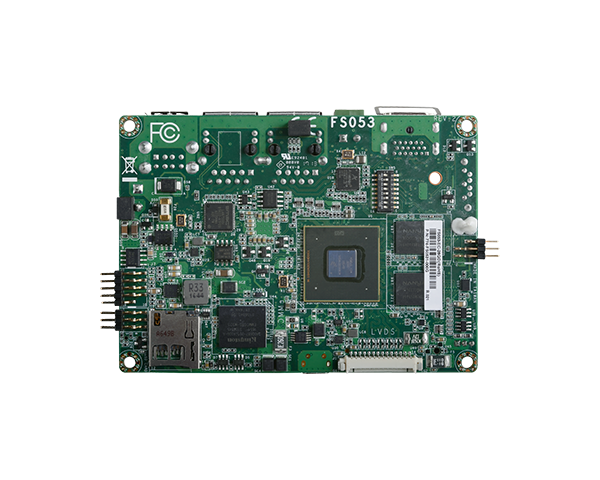

Pico-ITX Back

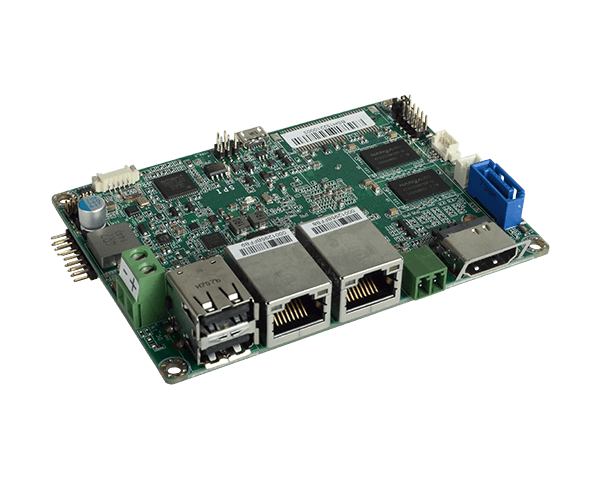

Pico-ITX Side
System
Processor
NXP i.MX6 Cortex-A9 Dual Lite, 1.0 GHz
NXP i.MX6 Cortex-A9 Quad, 1.0 GHz
Memory
1GB/2GB SDRAM Memory Down (default), 4GB (available upon request)
Single Channel DDR3L 1600MHz/1866MHz
BIOS
4MB NOR Flash
Graphics
Display
1 x HDMI
1 x LVDS
HDMI: resolution up to 1920x1080 @ 60 Hz
LVDS: single channel, resolution up to 1366x768 @ 60Hz
Single/Dual Displays
Yocto: HDMI or LVDS (Default)
Android: HDMI + LVDS (available upon request)
Expansion
Interface
1 x Full-size Mini PCIe (PCIe/USB)
Ethernet
Controller
1 x ATHEROS AR8033 Ethernet (10/100/1000Mbps)
1 x LAN7500 Ethernet (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-485 (2-wire)
USB
2 x USB 2.0
1 x USB 2.0 OTG Port
Display
1 x HDMI
I/O
eMMC
Supports 8GB, 16GB and 32GB eMMC onboard
Internal I/O
Serial
1 x RS-232/422/485 (8-wire)
USB
1 x USB 2.0
Display
1 x LVDS LCD Panel Connector
SATA
1 x SATA 2.0 (up to 3Gb/s) (Quad processor only)
DIO
1 x 8-bit DIO
SD
1 x Micro SD Slot
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
9~36V DC
Connector
Terminal block (2-pin)
Consumption
Typical: 12V @ 0.355A (4.26Watt)
Max.: 12V @ 0.631A (7.58Watt)
OS Support
OS Support
Yocto (1.8, Default Preloaded on eMMC)
Android (5.1.1)
Environment
Temperature
Operating: -20 to 70°C/0 to 60°C Storage: -40 to 85°C
Humidity
Operating: 5 to 95% RH Storage: 5 to 95% RH
MTBF
486,335 hrs @ 25°C; 342,613 hrs @ 45°C ; 237,430 hrs @ 60°C
Mechanism
Dimensions
2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
Height
PCB: 1.6mm Top Side: 16.15mm, Bottom Side: 4mm
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 FS053 board
1 terminal block for RS485 342-361021-000
1 Heat spreader (Height: 11mm) A71-808303-000G
Note: Please choose "FS053 product page > Download button" to download the Driver.
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    FS053-EC-28QD
    Part Number :
    770-FS0532-000G
    Description :
    Fanless, i.MX6 Quad Lite 1.0GHz, 2GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, -20 to 70°C
  • Model Name :
    FS053-EC-18DL
    Part Number :
    770-FS0532-100G
    Description :
    Fanless, i.MX6 Dual Lite 1.0GHz, 1GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, -20 to 70°C
  • Model Name :
    FS053-BC-28QD
    Part Number :
    770-FS0532-200G
    Description :
    Fanless, i.MX6 Quad 1.0GHz, 2GB DDR3L SDRAM, 8GB eMMC, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, 0 to 60°C
  • Model Name :
    FS053-BC-18DL
    Part Number :
    770-FS0532-300G
    Description :
    Fanless, i.MX6 Dual Lite 1.0GHz, 1GB DDR3L SDRAM, 8GB Emmc, 2 LAN, 2 COM, 4 USB, 9~36V DC in terminal block, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat sink
    Part Number :
    A71-008105-000G
    Description :
    Height: 16.8mm
  • Item Name :
    COM cable
    Part Number :
    A81-015044-001G
    Description :
    Length: 250mm, 1x COM ports
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001058-016G
    Description :
    Length: 200mm, 1x USB ports
  • Item Name :
    Power cable for SATA and LCD backlight
    Part Number :
    A81-020016-018G
    Description :
    Length: 155mm
  • Item Name :
    Power adapter
    Part Number :
    671-106012-000G
    Description :
    60W, 12V, DC Jack
