Name: EC200-BT
Brand: DFI

US Store

EC200-BT

Overview

Home Industrial Computers Embedded Fanless PC EC200-BT

Intel Atom® Processor E3800 Modular-Designed System

Fanless, compact design for industrial applications

Supports DDR3L SODIMM up to 8GB

2x 2.5" SATA drive bays

1 Vertical USB for securing data from unauthorized access (optional)

15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

+Compare +Quotation

Product Comparison
You have 0 items. up to 3 products.
COMPARE NOW

Quotation
You have 0 items. up to 3 products.
QUOTE NOW

EC200-BT Embedded Solution Powered by: DFI Proprietary Motherboard

EC200-BT Related Tags

#IoT#Intel#Mini PCIe#Fanless Design#Windows#Linux#DVI-I#DVI-D#VGA#DDR3L#Low Power Consumption#RoHS Certification#UL Certification#FCC Certification#UL-US Certification

System

Processor

Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W
22nm Process Technology

Memory

Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1333MHz

Graphics

Controller

Intel® HD Graphics

Display

1 x DVI (DVI-D signal)
1 x VGA
Supports 2 Independent Displays
VGA: resolution up to 2560x1600 @ 60Hz
DVI: resolution up to 1920x1080 @ 60Hz

Dual Displays

1 x VGA + 1 x DVI

Storage

External/Internal

1 or 2 x 2.5" SATA 2.0 Drive Bay
Standard: 1 single drive bay for 1 SATA drive
Option: Single drive bay for second SATA drive

Expansion

Interface

1 x Full-size Mini PCIe (PCIe/USB/SATA)

Audio

Audio Codec

Realtek ALC888 High Definition Audio
2 watt, 4Ω Power Amplifier

Ethernet

Controller

2 x Intel® WGI210AT PCIe (10/100/1000Mbps)

LED

Indicators

1 x Power LED
1 x HDD LED
1 x Alert LED

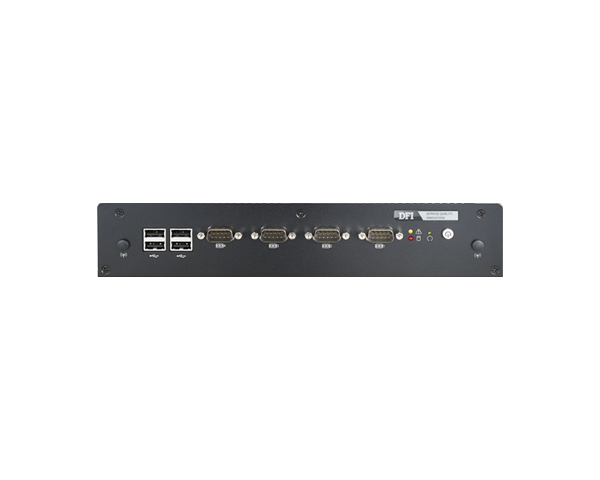

Front I/O

Serial

4 x RS-232/422/485 (DB-9)

USB

4 x USB 2.0 (type A)

Buttons

1 x Power Button
1 x Reset Button

Wi-Fi Antenna

2 x Wi-Fi Module Antenna Hole

Rear I/O

Ethernet

2 x GbE (RJ-45)

Serial

EC200-BTA881

2 x RS-232 (DB-9)

EC200-BTA881

4 x RS-232/422/485 (DB-9)

EC200-BTAG60

2 x RS-232 (DB-9)

EC200-BTAG60

4 x RS-232/422/485 (DB-9)

EC200-BT6060

2 x RS-232 (DB-9)

USB

EC200-BTA881

1 x USB 3.0 (type A)

EC200-BTA881

3 x USB 2.0 (type A)

EC200-BTAG60

1 x USB 3.0 (type A)

EC200-BTAG60

1 x USB 2.0 (type A)

EC200-BT6060

1 x USB 3.0 (type A)

EC200-BT6060

1 x USB 2.0 (type A)

DIO

EC200-BTA881

1 x 8-bit DIO (9-pole terminal block)

EC200-BTAG60

2 x 8-bit DIO (9-pole terminal block)

EC200-BT6060

Display

EC200-BTA881

1 x VGA (DB-15)

EC200-BTA881

1 x DVI-I (DVI-D signal)

EC200-BTAG60

1 x VGA (DB-15)

EC200-BT6060

1 x VGA (DB-15)

Audio

1 x Speaker-out

Buttons

1 x Reset Button

Watchdog Timer

Output & Interval

System Reset, Programmable via Software from 1 to 255 Seconds

Power

Type

Wide Range 9~36V DC-in

Connector

3-Pole Terminal Block

OS Support

Windows 7, WES 7, Windows 8.1, WES 8, Windows 10 IoT (64-bit)
Linux (Distribution available upon request)

Environment

Operating Temperature

0°C ~ 55°C (SSD/mSATA)
0°C ~ 50°C (HDD)
-10°C ~ 70°C (wide-temp SSD, for EC200-BT6060 only)

Storage Temperature

-20°C ~ 85°C

Mechanism

Construction

Aluminum + SGCC

Mounting

Wall/VESA mount

Dimensions (W x H x D)

275mm x 59mm x 203mm

Weight

3 kg

Standards and Certifications

Shock

Half Sine Wave 15G, 11ms, 3 Shock Per Axis

Vibration

IEC68-2-64 (HDD)

Certifications

CE
FCC Class A
RoHS
UL compliance

Packing List

1 EC200 system unit
1 HDD drive bay kit: 2 Brackets, 1 SATA data/power cable, 4 Bracket screws, 4 HDD screws
Terminal blocks
1 Quick Installation Guide

Country of Origin

Taiwan (TAA Compliant Country)

Ordering Information

Model Name Part Number Description
Model Name :
EC200-BTA881-45 Part Number :
750-EC2000-F00G Description :
Fanless, E3845, 2 LAN, 1 DVI, 1 VGA, 10 COM, 8-bit GPIO, 8 USB, RoHS
Model Name :
EC200-BT6060-45 Part Number :
750-EC2000-H00G Description :
Fanless, E3845, 2 LAN, 1 VGA, 6 COM, 6 USB, RoHS
Model Name :
EC200-BTAG60-45 Part Number :
750-EC2000-G00G Description :
Fanless, E3845, 2 LAN, 1 VGA, 10 COM, 16-bit GPIO, 6 USB, RoHS

Optional Items

Item Name Part Number Description
Item Name :
4GB DDR3L Part Number :
785-RSOD34G-L Description :
SODIMM, DDR3L Module, 4GB, RoHS
Item Name :
2GB DDR3L Part Number :
785-RSOD32G-L Description :
SODIMM, DDR3L Module, 2GB, RoHS
Item Name :
500GB HDD Part Number :
785-H25500G Description :
2.5” SATA HDD, 500GB, RoHS
Item Name :
320GB HDD Part Number :
785-H25320G Description :
2.5” SATA HDD, 320GB, RoHS
Item Name :
1TB SSD Part Number :
785-S251TBG Description :
2.5" SATA SSD, 1TB MLC, RoHS
Item Name :
512GB SSD Part Number :
785-S25512G Description :
2.5" SATA SSD, 512GB MLC, RoHS
Item Name :
256GB SSD Part Number :
785-S25256G Description :
2.5" SATA SSD, 256GB MLC, RoHS
Item Name :
128GB SSD Part Number :
785-S25128G Description :
2.5" SATA SSD, 128GB MLC, RoHS
Item Name :
64GB SSD Part Number :
785-S25064G Description :
2.5" SATA SSD, 64GB MLC, RoHS
Item Name :
Wide-temp 1TB SSD Part Number :
785-S251TBG-W Description :
2.5" SATA SSD, 1TB MLC, Wide Temp, RoHS
Item Name :
Wide-temp 512GB SSD Part Number :
785-S25512G-W Description :
2.5" SATA SSD, 512GB MLC, Wide Temp, RoHS
Item Name :
Wide-temp 256GB SSD Part Number :
785-S25256G-W Description :
2.5" SATA SSD, 256GB MLC, Wide Temp, RoHS
Item Name :
Wide-temp 128GB SSD Part Number :
785-S25128G-W Description :
2.5" SATA SSD, 128GB MLC, Wide Temp, RoHS
Item Name :
Wide-temp 64GB SSD Part Number :
785-S25064G-W Description :
2.5" SATA SSD, 64GB MLC, Wide Temp, RoHS
Item Name :
Wide-temp 32GB SSD Part Number :
785-S25032G-W Description :
2.5" SATA SSD, 32GB MLC, Wide Temp, RoHS
Item Name :
Wide-temp 16GB SSD Part Number :
785-S25016G-W Description :
2.5" SATA SSD, 16GB MLC, Wide Temp, RoHS
Item Name :
Wide-temp 8GB SSD Part Number :
785-S25008G-W Description :
2.5" SATA SSD, 8GB MLC, Wide Temp, RoHS
Item Name :
120W Power Adapter Part Number :
671-110003-100G Description :
120W, 19V/6.31A, Level 6, RoHS
Item Name :
60W Power Adapter Part Number :
671-106013-000G
671-106011-000G Description :
60W, 12V/5A (-30 to 70°C), Level 6, RoHS
60W, 19V/3.15A, Level 6, RoHS
Item Name :
128GB mSATA Part Number :
785-MS128GMF Description :
mSATA Card, 128GB MLC, RoHS
Item Name :
64GB mSATA Part Number :
785-MS64GMF Description :
mSATA Card, 64GB MLC, RoHS
Item Name :
32GB mSATA Part Number :
785-MS32GMF Description :
mSATA Card, 32GB MLC, RoHS
Item Name :
16GB mSATA Part Number :
785-MS16GMF Description :
mSATA Card, 16GB MLC, RoHS
Item Name :
8GB mSATA Part Number :
785-MS08GMF Description :
mSATA Card, 8GB MLC, RoHS
Item Name :
4GB mSATA Part Number :
785-MS04GMF Description :
mSATA Card, 4GB MLC, RoHS
Item Name :
Power Cord Part Number :
785-PWRD Description :
Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
Item Name :
Wi-Fi Part Number :
761-110091-000G Description :
Wi-Fi Kit, RoHS
Item Name :
VESA Mount Part Number :
785-EC2VAK Description :
VESA Mount Kit
Item Name :
Wall Mount Part Number :
785-EC3WMK Description :
Wall Mount Kit
