CR902-BL

System-On-Modules COM Express Basic CR902-BL
  • 3rd/2nd Gen Intel® Core™, Intel® HM76 Chipset
  • Dual channel DDR3L 1600MHz SODIMM up to 16GB
  • 1 VGA, 1 LVDS, 2 DDI (HDMI/DVI/DP/SDVO)
  • Multiple expansion: 1 PCIe x16, 4 SATA, 1 LPC, 1 IDE, 1 SMBus
  • Rich I/O: 1 Intel GbE, 8 USB 2.0
  • 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

Status : EOL

1G Ethernet
VGA
Multiple Expansion
15 Years CPU Life Cycle Support
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

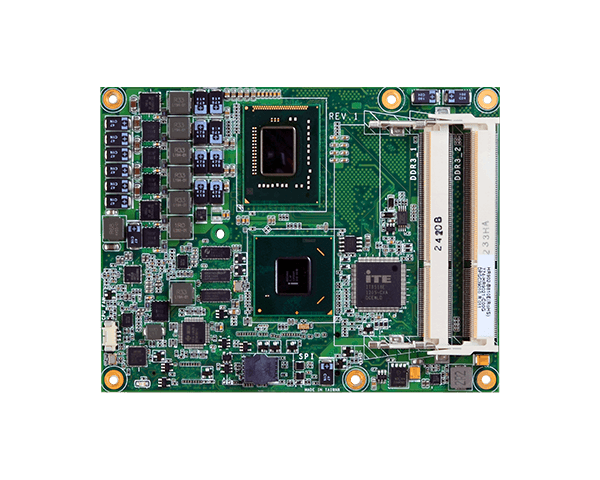

COM Express Basic, CR902-BL

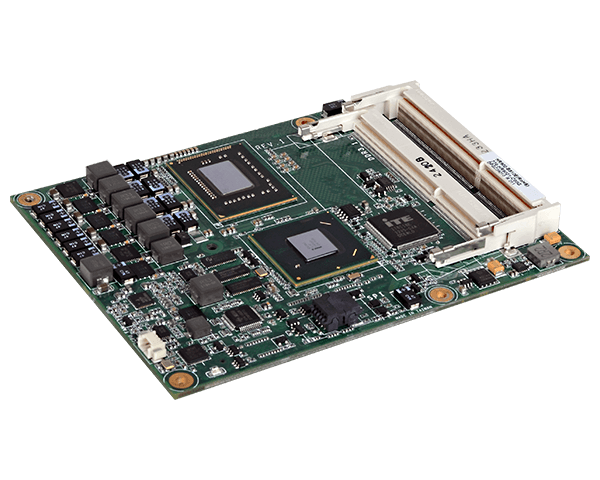

COM Express Basic, CR902-BL

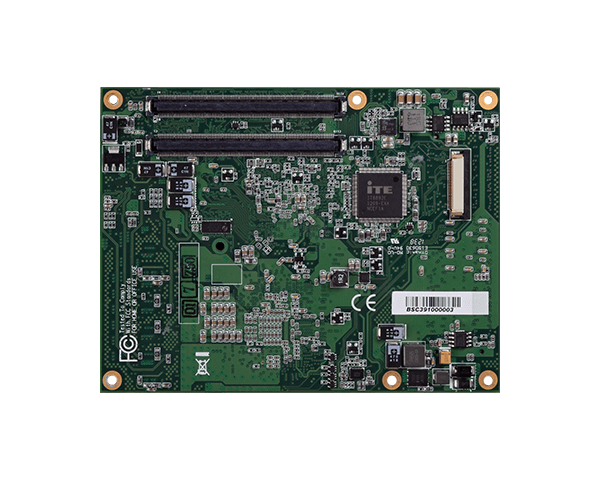

COM Express Basic, CR902-BL
System
Processor
BGA 1023 packaging technology
- 3rd generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i5-3610ME, 3M Cache, 2.7GHz (3.3GHz), 35W
Intel® Celeron™ 1020E, 2M Cache, 2.20 GHz, 35W
- 2nd generation Intel® Core™ processors (32nm process technology)
Intel® Celeron™ B810E, 2M Cache, 1.6GHz, 35W
Intel® Celeron™ 847E, 2M Cache, 1.1GHz, 17W
Intel® Celeron™ 827E, 1.5M Cache, 1.4GHz, 17W
Chipset
Intel® HM76 Chipset
Memory
Two 204-pin SODIMM up to 16GB
Dual Channel DDR3L 1600MHz
BIOS
64Mbit SPI
Graphics
Feature
DirectX Video Acceleration (DXVA) for accelerating video processing
- Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 3.0 (3rd generation processors)
Supports DirectX 10.1/10/9 and OpenGL 3.0 (2nd generation processors)
Intel® HD Graphics 4000 (3rd generation processors)
Intel® HD Graphics 3000 (2nd generation processors)
Intel® HD Graphics (Intel® Celeron™ processors)
Display
1 x VGA
1 x LVDS
2 x DDI (HDMI/DVI/DP/SDVO)
VGA: resolution up to 2048x1536 @ 75Hz
LVDS: dual channel 36/48-bit, resolution up to 1920x1200 @ 60Hz
HDMI/DVI/DP/SDVO: resolution up to 1920x1200 @ 60Hz
Expansion
Interface
1 x PCIe x16
1 x PCIe x4 and 1 x PCIe x1 or 5 x PCIe x1
4 x PCI
1 x LPC
1 x IDE
1 x SMBus
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® 82579LM (10/100/1000Mbps)
I/O
USB
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
2 x SATA 2.0 (up to 3Gb/s)
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
12V, 5VSB, VCC_RTC
Consumption
TBD
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit)
Windows XP Professional x64 & SP2 (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
TBD
Mechanism
Dimensions
COM Express® Basic 95mm (3.74") x 125mm (4.9")
Compliance
PICMG COM Express® R2.1, Type 2
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 CR902 board
Heat spreader with heat sink and fan: 761-HR9020-300G
(CR902-BL3120ME, CR902-BL810E, CR902-BL847E, CR902-BL827E)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CR902-BL3120ME
    Part Number :
    777-CR9021-500G
    Description :
  • Model Name :
    CR902-BL810E
    Part Number :
    777-CR9021-C00G
    Description :
  • Model Name :
    CR902-BL847E
    Part Number :
    777-CR9021-D00G
    Description :
  • Model Name :
    CR902-BL827E
    Part Number :
    777-CR9021-E00G
    Description :

* More configurations are available for ODM project. Please contact your sales representative for more information.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM330-B carrier board kit
    Part Number :
    770-COM330-000G
    Description :
