BT968
Home System-On-Modules COM Express Compact BT968
  • Intel Atom® E3800 Series
  • Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
  • Multiple expansions: 3 PCIe x1, 2 SATA 2.0
  • Support Dual Displays: 1 VGA, 1 LVDS, 1 DDI (HDMI/DVI/DP)
  • Dual Channel DDR3L 1333MHz SODIMM up to 8GB
  • 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide-temp: -40°C~85°C
Fanless Design
Compact Size
1G Ethernet
Multiple Expansion
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

BT968 Related Tags

#Intel#Fanless Design#Compact Size#1G Ethernet#Windows#HDMI#VGA#Multiple Expansion#DDR3L#RoHS Certification#CE Certification#FCC Certification

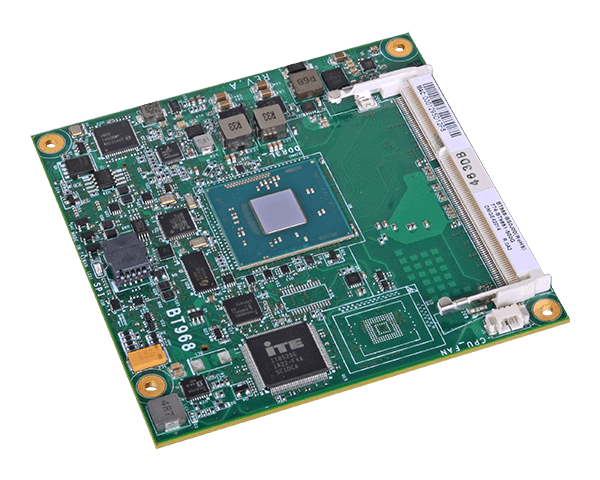

COM Express Type 6, BT968

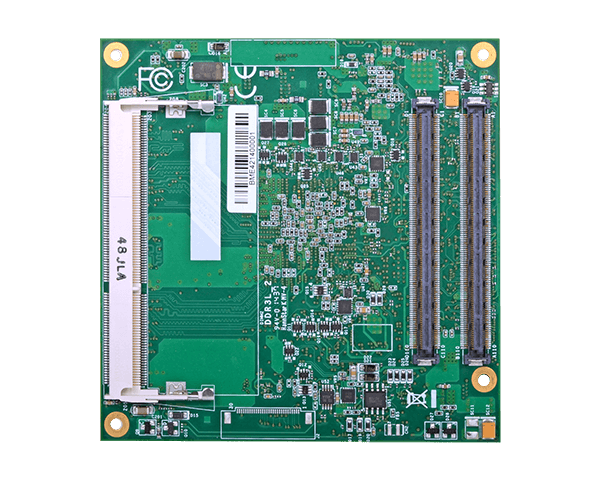

COM Express Type 6, BT968
COM Express Type 6, BT968
System
Processor
Intel Atom® Processor E3800 Series, BGA 1170
Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom® E3827, Dual Core, 1M Cache, 1.75GHz, 8W
Intel Atom® E3815, Single Core, 0.5M Cache, 1.46GHz, 5W
Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
Intel® Celeron® N2930, Quad Core, 2M Cache, 1.83GHz (2.16GHz), 7.5W
Memory
Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1333MHz
BIOS
AMI 64Mbit BIOS
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 3.2, DirectX 11, OpenCL 1.2
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
Display
1 x DDI (HDMI/DVI/DP)
1 x LVDS/DDI* (HDMI/DVI/DP)
1 x VGA
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
HDMI/DVI: resolution up to 1920x1080 @ 60Hz
DP: resolution up to 2560x1600 @ 60Hz
VGA: resolution up to 1920x1200 @ 60Hz
Expansion
Interface
3 x PCIe x1 or 1 PCIe x4
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I210AT (10/100/1000Mbps)
I/O
USB
1 x USB 3.0
8 x USB 2.0
SATA
2 x SATA 2.0
eMMC
1 x 4GB/8GB/16GB/32GB eMMC (available upon request)
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption
BT968-TS0-E45: 15.88W with E3845 at 1.91GHz and 2 x 4GB DDR3L SODIMM
OS Support
OS Support
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Windows 8.1 Enterprise x86 (32-bit)
Windows 8.1 Enterprise x64 (64-bit)
Windows 10 Enterprise x86 (32-bit)
Windows 10 Enterprise x64 (64-bit)
Environment
Temperature
Operating: 0 to 60°C, -20 to 70°C, -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
777,906 hrs @ 25°C; 394,833 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Compact 95mm (3.74") x 95mm (3.74")
Compliance
PICMG COM Express® R2.1, Type 6
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 BT968 board
1 Heat spreader: A71-011039-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    BT968-TS0-E45
    Part Number :
    770-BT9681-000G
    Description :
    Fanless, Intel Atom E3845, 2 DDR3L SODIMM, -40 to 85°C
  • Model Name :
    BT968-TS8-E27
    Part Number :
    770-BT9681-100G
    Description :
    Fanless, Intel Atom E3827, 2 DDR3L SODIMM, 8GB eMMC, -40 to 85°C
  • Model Name :
    BT968-TS0-E27
    Part Number :
    770-BT9681-800G
    Description :
    Fanless, Intel Atom E3827, 2 DDR3L SODIMM, -40 to 85°C
  • Model Name :
    BT968-TS4-E15
    Part Number :
    770-BT9681-400G
    Description :
    Fanless, Intel Atom E3815, 1 DDR3L SODIMM, 4GB eMMC, -40 to 85°C
  • Model Name :
    BT968-BS0-J00
    Part Number :
    770-BT9681-500G
    Description :
    Fanless, Intel Celeron J1900, 2 DDR3L SODIMM, 0 to 60°C
  • Model Name :
    BT968-BS0-N30
    Part Number :
    770-BT9681-600G
    Description :
    Fanless, Intel Celeron N2930, 2 DDR3L SODIMM, 0 to 60°C

* The following specifications will be available upon request. Please contact your sales representative for more information.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat spreader with heat sink and fan
    Part Number :
    761-BT9681-000G
    Description :
  • Item Name :
    COM331-B carrier board kit
    Part Number :
    770-COM331-000G
    Description :
  • Item Name :
    Heat sink
    Part Number :
    A71-011054-000G
    Description :

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
