RPSPIC|Intel®|Industrial Motherboards|DFI

RPSPIC
Home Industrial Motherboards PICMG 1.3 RPSPIC
  • 14th Gen Intel® Core™ with Intel® R680E/H610E chipset
  • 4/2 DDR5 UDIMM up to 192GB
  • Supports 3 independent displays: DVI-I(colay VGA),2 DFI display module
  • Supports up to 2K resolution
  • Multiple expansion: 1 M.2 E Key (USB/PCIe/CNVi), 1 M.2 M Key (PCIe), 1 M.2 A Key for M2A-OOB
  • Rich I/O: 2 Intel 2.5GbE, 4 COM, 6 USB 3.2 Gen2, 2 USB 2.0, 6 SATA 3.0
  • Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.

Status : Preliminary QUOTE NOW

Multiple Expansion
Triple Independent Display
DDR5
Rich I/O
10 Years CPU Life Cycle Support
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RPSPIC Related Tags

#12th Gen Intel® Core™ Processor#DDR5#13th Gen Intel® Core™ Processor#Windows 10#M.2#Out-Of-Band (OOB)#14th Gen Intel® Core™ Processor#IoT#Windows 11#Intel#Windows#Linux#HDMI#DVI-I#VGA#DP#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet

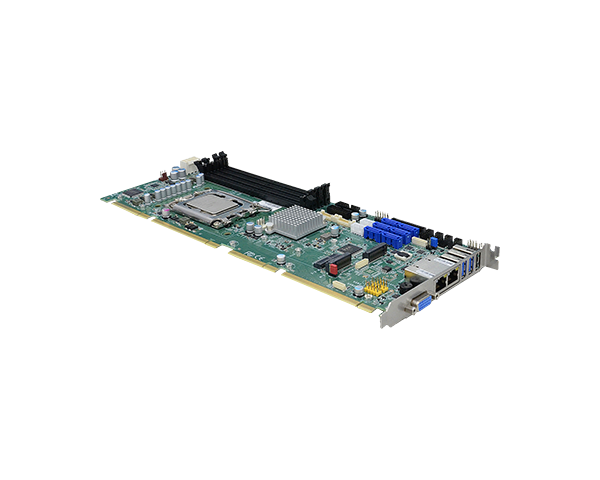

RPSPIC-R680E|Intel®|Industrial Motherboards|DFI

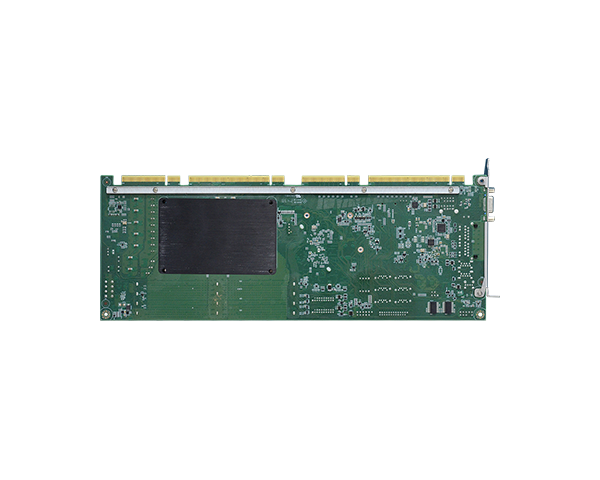

RPSPIC-R680E|Intel®|Industrial Motherboards|DFI

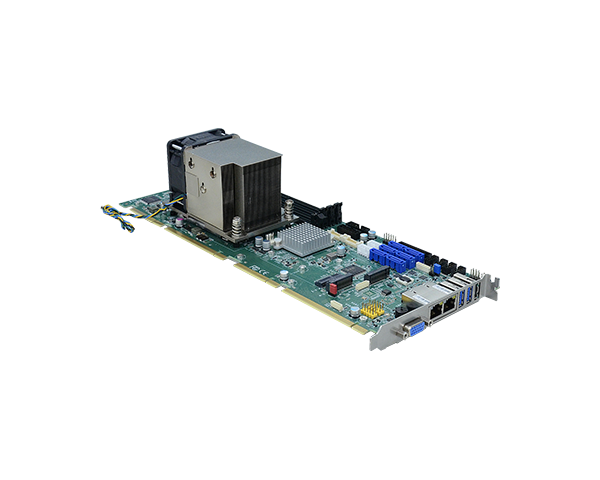

RPSPIC-R680E|Intel®|Industrial Motherboards|DFI
RPSPIC-R680E|Intel®|Industrial Motherboards|DFI

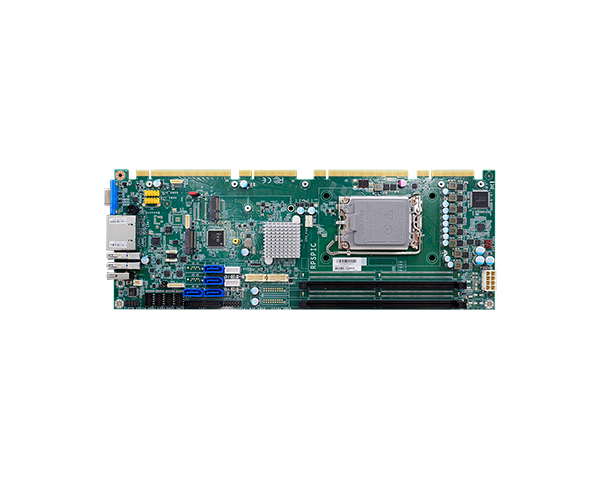

RPSPIC-H610E|Intel®|Industrial Motherboards|DFI

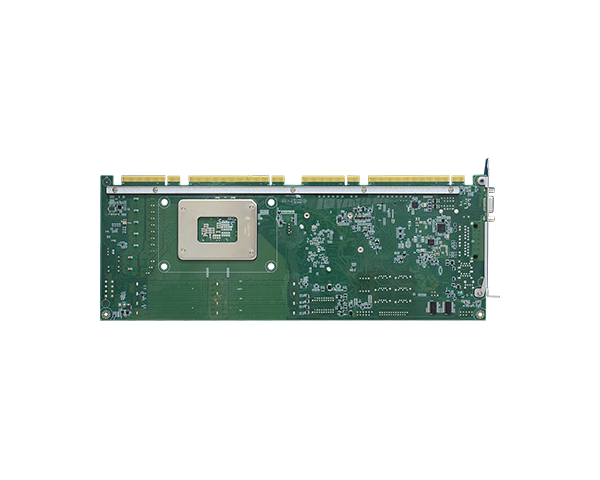

RPSPIC-H610E|Intel®|Industrial Motherboards|DFI
RPSPIC-H610E|Intel®|Industrial Motherboards|DFI
RPSPIC-H610E|Intel®|Industrial Motherboards|DFI
System
Processor
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I9-13900 (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700 (16 Cores, 30M Cache, up to 5.2 GHz); 65W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500 (14 Cores, 24M Cache, up to 4.8 GHz); 65W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13400 (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100 (4 Cores, 12M Cache, up to 4.5 GHz); 65W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i9-12900(16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.7 GHz); 35W
Intel® Core™ i7-12700 (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i5-12500 (6 Cores, 18M Cache, up to 4.6 GHz); 65W
Intel® Core™ i5-12400 (6 Cores, 18M Cache, up to 4.4 GHz); 65W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i3-12100 (4 Cores, 12M Cache, up to 4.3 GHz); 60W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset
[RPSPIC-R680E] Intel® R680E Chipset
[RPSPIC-H610E] Intel® H610E Chipset
Memory
[RPSPIC-R680E] 2/4 288-pin UDIMM up to 96G/128GB (ECC/Non-ECC)
[RPSPIC-R680E] Dual Channel DDR5 4000 MHz

[RPSPIC-H610E] 2/4 288-pin UDIMM up to 96G/128GB (Non-ECC)
[RPSPIC-H610E] Dual Channel DDR5 4000 MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
· 3D graphics HW acceleration:
DX12, Open GL 4.6, Vulkan 1.2
· HW Video Decode:
8K60 12b 4:2:0 HEVC/VP9/SCC
8K30 10b 4:2:0 AV1
5K60 10b 4:4:4 HEVC/VP9/SCC
4K60 8b 4:2:0 AVC
· HW Video Encode:
8K30 or 5K60 8b/10b 4:2:0 HEVC/VP9/SCC
4K60 10b 4:4:4 HEVC/VP9/SCC
4K60 8b 4:2:0 AVC
Display
1 x DVI-I (colay VGA)
2 x DFI display extension port (DP/HDMI/VGA available)

DVI-I /VGA: resolution up to 1920x1200 @ 60Hz
HDMI /VGA: resolution up to 1920x1080 @ 60Hz
DP: resolution up to 1920x1200 @ 60Hz
Triple Displays
DVI-I (colay VGA) +DFI display extension port (DP/HDMI/VGA available)
Expansion
Interface
[RPSPIC-R680E] 1 x M.2 2230 E Key (USB 2.0x1/CNVix1/PCIe3.0 x1)
[RPSPIC-R680E] 1 x M.2 2280 M Key (PCIe 4.0x4)
[RPSPIC-R680E] 1 x M.2 3042 A Key for M2A-OOB
[RPSPIC-H610E] 1 x M.2 2230 E Key (USB 2.0x1/CNVix1/PCIe3.0 x1)
[RPSPIC-H610E] 1 x M.2 3042 A Key for M2A-OOB
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
[RPSPIC-R680E] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
[RPSPIC-R680E] 1 x Intel® I226-V (colay i210AT)

[RPSPIC-H610E] 1 x Intel® I226-V
[RPSPIC-H610E] 1 x Intel® I226-V (colay i210AT)
Rear I/O
Ethernet
2 x 2.5GbE (RJ-45)
USB
2 x USB 3.2 Gen2
Display
1 x DVI-I (colay VGA)
Internal I/O
Serial
2 x RS232/422/485 w/o Power (2.0 pitch BOX) by BIOS select
2 x RS232 w/o Power, 2.0 pitch BOX
USB
[RPSPIC-R680E] 4 x USB 3.2 Gen 2 BOX
[RPSPIC-R680E] 2 x USB 2.0 (2x5 2.0mm pitch header)
[RPSPIC-H610E] 2 x USB 2.0 (2x5 2.0mm pitch header)
Display
2 x DFI display extension port (DP/HDMI/VGA available)
Audio
1 x Front Audio Header (1 x Line-out, 1 x Mic-in)
SATA
[RPSPIC-R680E] 6 x SATA 3.0 (up to 6Gb/s)
[RPSPIC-R680E] RAID 0/1/5/10

[RPSPIC-H610E] 4 x SATA 3.0 (up to 6Gb/s)
[RPSPIC-H610E] RAID 0/1/5/10
DIO
1 x 8-bit DIO BOX
SMBus
1 x SMBus
PS/2
1 x PS/2 (2.54mm pitch)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Nuvoton TPM 2.0
Power
Type
ATX
Connector
8-pin ATX 12V power
Expansion Goldfinger
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11 Enterprise
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
Full Size PICMG 1.3
338mm (13.3") x 126.39mm (4.98")
Height
PCB: TBD
Top Side: TBD
Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
• 1 RPSPIC-R680E/H610E board
• 1 Dual USB2.0 port cable (with bracket) A81-001066-016G
• 2 COM port cable (with bracket) TBD
• 2 Serial ATA data cable 332-553001-005G
• 1 I/O shield TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPSPIC-R680E
    Part Number :
    770-RPSPIC1-000G
    Description :
    Intel® R680E Chipset, 2 2.5GbE, 4 ECC/Non ECC DDR5 UDIMM, 6 USB 3.2 Gen2, 2 USB 2.0, 4 COM, 6 SATA 3.0, dTPM, 8-pin ATX 12V power Expansion Goldfinger, Operating Temp.: -5 to 65°C
  • Model Name :
    RPSPIC-H610E
    Part Number :
    770-RPSPIC1-100G
    Description :
    Intel® H610E Chipset, 4 2.5GbE, 2 Non ECC DDR5 UDIMM, 2 USB 3.2 Gen2, 2 USB 2.0, 4 COM, 4 SATA 3.0, dTPM, 8-pin ATX 12V power Expansion Goldfinger, Operating Temp.: -5 to 65°C
