COM836|System-On-Modules|DFI

COM836
Home System-On-Modules Carrier Board COM836
  • PICMG COM HPC® R2.0 Carrier Board
  • Support Client size A, B, C
  • Extend ATX Form Factor
  • Multiple Displays: HDMI, DP, eDP
  • Multiple Expansion: 1 PCIe x16, 4 PCIe x4, 1 M.2 B Key, 1 M.2 E Key, 1 M.2 M key
  • Rich I/O: 2 2.5 GbE, 2 USB 3.1, 2 USB 3.2, 4 USB 2.0

Status : Preliminary QUOTE NOW

PCIe x16
Multiple Expansion
Rich I/O
Multiple Displays
2.5G Ethernet
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

COM836 Related Tags

#eDP#M.2#SIM Slot#PCIe x16#HDMI#DP#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet

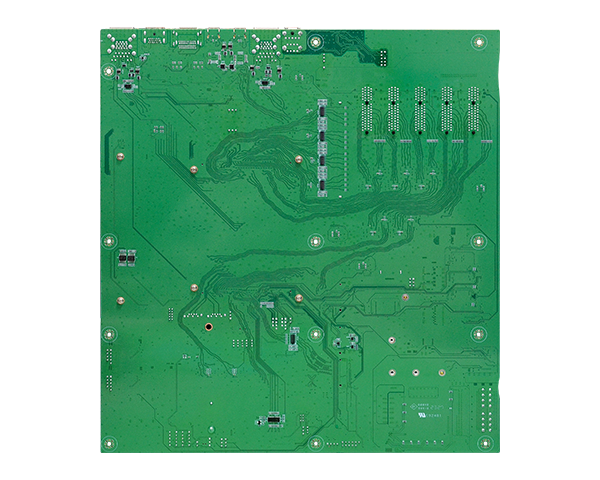

COM836|System-On-Modules|DFI

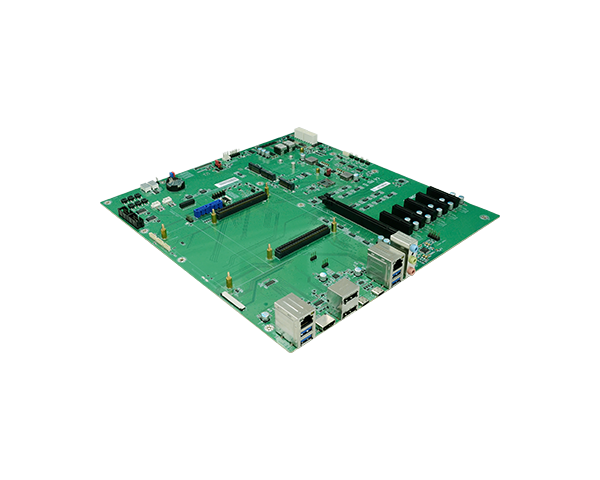

COM836|System-On-Modules|DFI

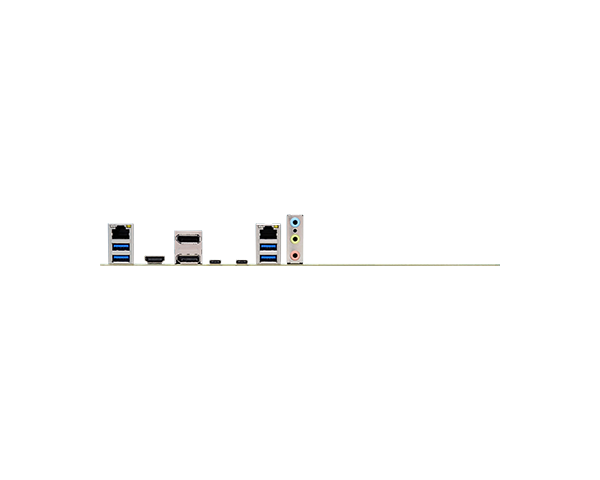

COM836|System-On-Modules|DFI
COM836|System-On-Modules|DFI
Graphics
Display
1 x HDMI
2 x DP++
1 x eDP
Expansion
Interface
1 x PCIe x16
5 x PCIe x4
1 x M.2 B Key 3052
1 x M.2 E Key 2242
1 x M.2 M key 2242/2260/2280
Audio
Audio Codec
Realtek ALC888
I/O
Ethernet
2 x 2.5 GbE (RJ-45)
USB
2 x USB 3.2 Gen1 type A
2 x USB 3.2 Gen2x2 type C
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
Internal I/O
Serial
2 x COM (TX/RX/CTS/RTS)
Display
1 x eDP LCD Panel Connector
Audio
1 x Audio (Line-out/Line-in/Mic-in)
1 x S/PDIF
SATA
2 x SATA 3.0
GPIO
1 x 8-bit GPIO
1 x 4-bit GPIO
SMBus
1 x SMBus
eSPI
1 x eSPI expansion
NBASET SDP
2 x NBASET SDP
GP SPI
1 x GP SPI
SIM
1 x SIM slot
Power
Type
8-20V, 5VSB, VCC_RTC (ATX mode)
8-20V, VCC_RTC (AT mode)
Connector
2x 4-pin power connector
RTC Battery
CR2032 Coin Cell
Environment
Temperature
Operating: 0°C ~ 60°C
Storage: -40°C ~ 85°C
Humidity
Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH
MTBF
TBD
Mechanism
Dimensions
Extend ATX Form Factor
325mm x 340mm
Compliance
PICMG COM HPC® R2.0 carrier board
Client size A, B, C
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
• 1 COM836 board
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    COM836
    Part Number :
    770-COM8361-000G
    Description :
    2 2.5 GbE, 4 USB 3.2, ATX/AT Power, Operating Temp.: 0°C ~ 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm
