RM641-CS

Overview

Home Industrial Computers Mini-ITX/ATX System & Chassis RM641-CS

9th/8th Gen Intel® Core™ Rackmount 4U Box IPC

Up to 1x 3.5"/2.5" SATA drive bay and 3x optical drive bays

Front-accessible system fan and USB interfaces

Supports 7 expansion slots: 1 PCIe x16, 3 PCIe x4, 2 PCI, 1 Mini PCIe

Designed for industrial server application

15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

+Compare +Quotation

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW

Quotation
You have ,Up to 3 items.
QUOTE NOW

RM641-CS Embedded Solution Powered by:

CS632-C246

ATX, 9th/8th Gen Intel® Core™, 4 DDR4, 1 PCIe x16, 3 PCIe x4, 2 PCI, 1 Mini PCIe, 1 M.2 M key, 1 M.2 M key, 1 VGA, 2 DP++

RM641-CS Related Tags

#8th Gen Intel® Core™ Processor #4K2K Display#Windows#Linux#VGA#DP#Multiple Expansion#DDR4#RoHS Certification#CE Certification#FCC Certification#High-Performance#UKCA Certification

System

Processor

8th/9th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket
Processors: Intel® Core™, Xeon®, i7/i5/i3, Pentium® and Celeron®, TDP up to 80W

Chipset

Intel® C246 Chipset

Memory

Four 288-pin DIMM up to 128GB Dual Channel DDR4 2400/2666MHz (ECC/non ECC)

BIOS

Insyde SPI 128Mbit

Graphics

Controller

Intel® HD Gen 9 Graphics

Feature

OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

Display

1 x VGA
2 x DP++
VGA: resolution up to 1920x1200@60Hz
DP++: resolution up to 4096x2160@60Hz

Triple Displays

VGA + 2 x DP++

Storage

External

3 x 5.25" Optical drive bays (Front Accessible)
1 x 3.5" SATA 3.0 drive bay (Front Accessible)

Expansion

Interface

1 x PCIe x16 (Gen 3) (x8/x8 signals as opt., MOQ required)
3 x PCIe x4 (Gen 3)
2 x PCI
1 x Mini PCIe (PCIe/mSATA, share w/SATA conn. as opt./USB2.0)
1 x M.2 2242/2280 M key (PCIe x4 NVMe, Intel optane memory support)

Audio

Audio Codec

Realtek ALC887 (ALC888 as opt.)

Interface

1 x Line-in (available upon request)
1 x Line-out
1 x Mic-in

Ethernet

Controller

1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT12.0 (10/100/1000Mbps)
(only Xeon/Core i7/i5 supports iAMT)

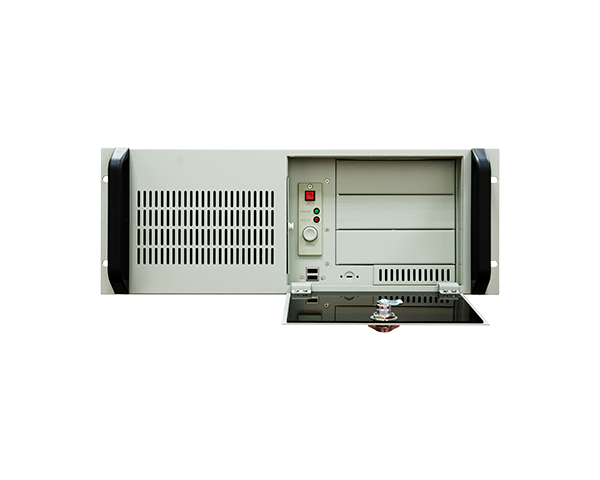

Front I/O

USB

2 x USB 2.0 (available upon request)

Buttons

1 x Power Button
1 x Reset Button

LED Indicators

1 x Power LED
1 x HDD LED

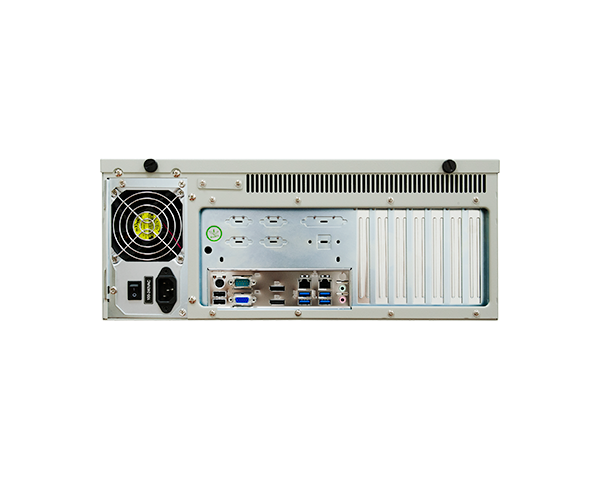

Rear I/O

Ethernet

2 x GbE (RJ-45)

Serial

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

USB

4 x USB 3.1 Gen1
2 x USB 2.0

PS/2

1 x PS/2 (mini-DIN-6)

Display

1 x VGA
2 x DP++

Audio

1 x Line-in (available upon request)
1 x Line-out
1 x Mic-in

Cutout

DB-9 x 4, DB-25, USB x 2

Cooling

Fan

2 x 92cm System fan with quick access filter

Watchdog Timer

Output & Interval

System Reset, Programmable via Software from 1 to 255 Seconds

Power

Supply

ATX PS/2 power supply 500W AC power input : 90~264V

OS Support

Microsoft

Windows 10 IoT Enterprise 64-bit

Linux

Environment

Operating Temperature

0 to 45°C

Storage Temperature

-20 to 60°C

Relative Humidity

0 to 90% RH (non-condensing)

Mechanism

Construction

SECC

Mounting

Flexible hold down bar

Dimensions (W x H x D)

483 x 177 x 451mm

Weight

14.3kg

Standards and Certifications

Shock

Operating: 3G
Non-operating: 5G

Vibration

Operating: random 5~500Hz 1G
Non-operating: sweep sine 10~500Hz 1.5G

Package Drop

ISTA Project 1A

Certifications

CE, FCC, RoHS, UKCA

Packing List

· 1 RM641-CS System Unit
· 1 CPU Cooler (LGA115x, 95-125W)
· 2 SATA Cable (500mm, with Lock)
· 2 System Fan (92mm, 51.0CFM ea)

Country of Origin

Taiwan (TAA Compliant Country)

Product Collaterals

Embedded Systems Product Catalog (PDF) 7.23MB 2024/04/02

RM641-CS Datasheet (PDF) 663.48KB 2024/02/03

Certifications

RM641-CS UKCA Certification (PDF) 258.98KB 2022/04/07

RM641-CS CE Certification (PDF) 219.48KB 2022/04/07

RM641-CS FCC Certification (PDF) 200.66KB 2022/04/07

Ordering Information

Model Name Part Number Description
Model Name :
RM641-CS632 Part Number :
750-RM6413-000G Description :
RM641-CS632: 4U Rackmount System CS632-C246CRM, 500W, CPU cooler (95W), 3.5" to 2.5" bracket F/G RoHS
