ICX610-C621A|Intel®|Industrial Motherboards|DFI

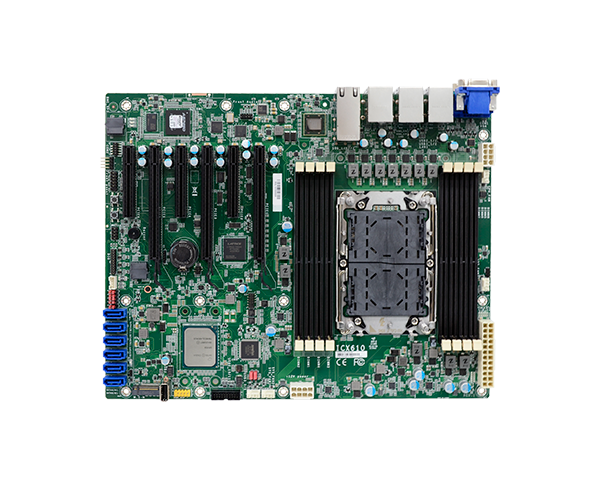

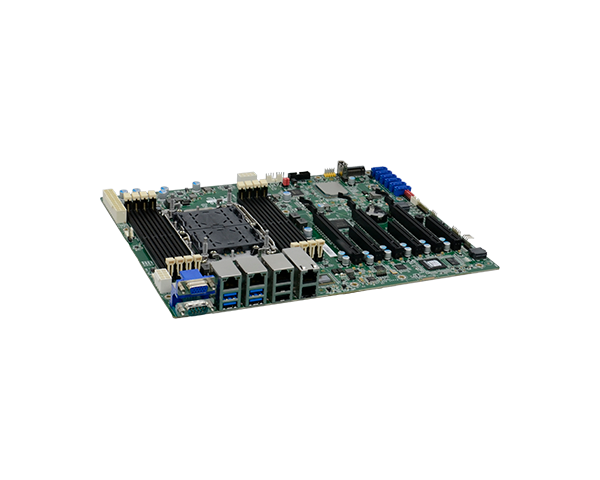

ICX610-C621A
Home Industrial Motherboards ATX ICX610-C621A
  • 3rd Gen Intel® Xeon® Scalable Processor Family
  • 8 ECC-RDIMM up to 512GB
  • 2 x 10GbE
  • IPMI OOB Remote Management
  • Single Display: VGA resolution up to 1920x1200 @ 60Hz
  • Multiple Expansion: 3 PCIe x16, 2 PCIe x8, 1 x M.2 M key
  • Rich I/O: 2 Intel GbE, 1 Dedicated IPMI, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0
  • 10-Year CPU life Cycle Support Until Q2' 30 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

PCIe x16
VGA
Multiple Expansion
10G Ethernet
DDR4
10 Years CPU Life Cycle Support
Out-of-band (OOB)
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

ICX610-C621A Related Tags

#Edge AI Computing#Out-Of-Band (OOB)#Server Boards#IoT#Intel#1G Ethernet#PCIe x16#Windows#VGA#Multiple Expansion#10G Ethernet#DDR4#RoHS Certification#CE Certification#FCC Certification#Medical#Intel® 3rd Gen Xeon Ice Lake-SP Processor#UKCA Certification
ICX610-C621A
ICX610-C621A
ICX610-C621A
System
Processor
3rd Gen Intel® Xeon® Scalable Processor Family, LGA 4189 (Socket P+)
Intel® Xeon® Gold 6338N ( 32 Cores, 48 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 6338T ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6336Y ( 24 Cores, 36 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 6330 ( 28 Cores, 42 MB Cache, up to 3.10 GHz )
Intel® Xeon® Gold 6330N ( 28 Cores, 42 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6326 ( 16 Cores, 24 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 6314U ( 32 Cores, 48 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6312U ( 24 Cores, 36 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 5320T ( 20 Cores, 30 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 5318N ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 5318Y ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 5317 ( 12 Cores, 18 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 5315Y ( 8 Cores, 12 MB Cache, up to 3.60 GHz )
Intel® Xeon® Silver 4316 ( 20 Cores, 30 MB Cache, up to 3.40 GHz )
Intel® Xeon® Silver 4314 ( 16 Cores, 24 MB Cache, up to 3.40 GHz )
Intel® Xeon® Silver 4310 ( 12 Cores, 18 MB Cache, up to 3.30 GHz )
Intel® Xeon® Silver 4310T ( 10 Cores, 15 MB Cache, up to 3.40 GHz )
Chipset
Intel® C621A Chipset
Memory
8 x 288-pin ECC-RDIMM up to 512GB
Single Channel DDR4 up to 3200 MHZ
BIOS
Insyde SPI 128Mbit
Graphics
Controller
BMC AST2500
Display
1 x VGA
VGA: resolution up to 1920x1200 @ 60Hz
Single Display
VGA
Expansion
Interface
1 x M.2 2280 M key (SATA/PCIe Gen3 x4 NVMe)
3 x PCIe x16 Gen4 slot (#1/#3/#5), 3 x PCIe x8 Gen4 slot (#2/#4/#6)
*Note: PCIe#1#2 can be auto detected as (x16/0) or (x8/x8)
*Note: PCIe x8 slot is OPEN edge.
Audio
Audio Codec
ALC888S
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
2 x Intel® X550-AT2 PCIe (10Gbps)
IPMI: RTL8211F

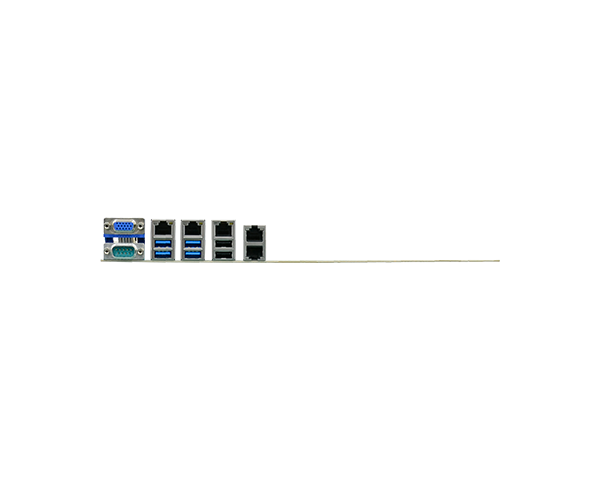

Rear I/O
Ethernet
2 x GbE (RJ-45)
2 x 10GbE (RJ-45)
1 x Dedicated IPMI LAN
Serial
1 x RS-232 (DB-9)
USB
4 x USB 3.1 Gen1 (w/ RJ45 + USB 3.1 stack)
2 x USB 2.0 (w/ RJ45 + USB 2.0 stack)
Display
1 x VGA (DB-15)
Internal I/O
Serial
1 x RS-232 (2x5-pin)
USB
2 x USB 3.1 Gen1
2 x USB 2.0
1 x USB 2.0 Vertical Type A
Audio
1 x Front Audio Header
SATA
6 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
1 x 16-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM2.0
Power
Type
ATX
Connector
8-pin ATX 12V CPU power
24-pin ATX power
Consumption
TBD
Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise LTSB RS5(64-bit)
Windows Server 2019
Linux
Ubuntu 20.04
Environment
Temperature
Operating: 0 to 55°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH, Non-condensing
Storage: 5 to 90% RH, Non-condensing
MTBF
TBD
Mechanism
Dimensions
ATX Form Factor 305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 37.34mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
1 ICX610-C621A Motherboard, 770-ICX6101-000G
1 M.2 screw, A32-112016-041G
1 M.2 standoff, A33-725019-090G
1 IO Shield, A49-ICX610-000G
1 Serial ATA data cable (Length: 500mm), 332-553001-005G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ICX610-C621A
    Part Number :
    770-ICX6101-000G
    Description :
    2 10GbE, 2 GbE, 1 IPMI, 1 VGA, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0 to 55°C
  • Model Name :
    ICX610-C621A
    Part Number :
    770-ICX6101-100G
    Description :
    2 10GbE, 2 GbE, 1 VGA, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0 to 55°C
  • Model Name :
    ICX610-C621A
    Part Number :
    770-ICX6101-200G
    Description :
    2 10GbE, 2 GbE, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0 to 55°C
  • Model Name :
    ICX610-C621A
    Part Number :
    770-ICX6101-300G
    Description :
    2 GbE, 1 VGA, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0 to 55°C
  • Model Name :
    ICX610-C621A
    Part Number :
    770-ICX6101-400G
    Description :
    2 GbE, 1 IPMI, 1 VGA, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0 to 55°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350mm
  • Item Name :
    USB 3.1 Gen1 cable
    Part Number :
    A81-001052-023G
    Description :
    Length: 320mm
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm
  • Item Name :
    2U CPU cooler
    Part Number :
    A71-101141-000G
    Description :
    LGA 4189 113 x 84 x 71.6mm
  • Item Name :
    4U CPU cooler
    Part Number :
    A71-101142-000G
    Description :
    LGA 4189 116.7 x 92.5 x 125.5mm

Empowering AI with Edge Computing

The server-grade ICX610-C621A motherboard powered by Intel® Ice Lake platform is designed to deliver high scalability and exceptional fast computing capability. ICX610-C621 offers multiple expansions and enables high-performance computing, especially for AI workload, deep learning, and high-end inspection equipment, such as AOI, CT, and MRI applications.

High-Performance Server-Grade Processors

The ICX610-C621A motherboard supports 3rd Generation Intel® Xeon® Scalable processors and is equipped with ultra-high speed computing that can support up to TDP 205W. The combination of Intel® Speed Select Technology (Intel® SST) can improve the controls for CPU performance, improving average performance by 1.46 times compared to the previous generation. The ICX610-C621A can optimize the performance of highly complex and heavy computing workloads.

Astounding AI Deep Learning Capabilities

With the acceleration by Deep Learning Boost (DL Boost) and Vector Neural Network Instructions (VNNI), the AI inference capabilities of ICX610-C621A has been improved by 1.56 times for image classification compared to the previous generation, improving the accuracy and reliability of production line and medical inspection device inference.

Unprecedented Read and Write Speeds

The new generation ICX610-C621A is designed for new generation, high-end devices. It is equipped with PCI Express 4.0 to provide 16GT/s transmission speeds and support ECC memory up to 512 GB 3200 MHZ, enhances high-end performance for advanced inspection equipment, and improves efficiency to develop empower 3D surgery training to develop mature smart surgical technologies.

Bring the Industrial Connectivity to Next Level

For high precision computing devices for flaw detection and machine vision, the 10GLAN high-speed network can quickly handle the transmission of high-resolution images, accelerating M2M communication and further realizing true Industry 4.0 automation.

Smart Remote Management for Edge Devices

ICX610-C621A supports the Intelligent Platform Management Interface (IPMI). The IPMI LAN and Board Management Control (BMC) out-of-band remote management equipment can help users remotely monitor, control, and automatically report the power capacity, temperature, fan speed, and other operating statuses of edge devices. Users can remotely install BIOS and update firmware with one click, greatly reducing the time and standby cost of maintenance personnel handling problems onsite.

Expansion Interfaces Tailored for HPC at the Edge

The scalability of ICX610-C621A can allow the connection of more peripherals. Data transmission is realized through PCI Express Gen 4 to provide double the speed compared to the previous generation. In addition to PCIe x16, PCIe x8, COM, USB 3.1, LPC, and other expansion interfaces designed for high-end flaw detection and medical imaging, the expansion of SSD can be implemented through Intel® 3D NAND SSD and Intel Optane SSD with M.2 M key and SATA interfaces, safely storing important data.

Dual OS Support

The ICX610-C621A supports both Windows and Ubuntu operating systems so that developers can create applications in familiar environments.

Industrial-grade Long Term Support

Long life cycle support, no risk occurred. With product life cycle support up to 15 years, DFI guarantees the performance, quality and future repair and replacement.
