CS103-H310
Home Industrial Motherboards Mini-ITX CS103-H310
  • 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)
  • Multiple Expansions: 1 PCIe x4 Gen 3, 1 M.2 2280 M Key, 1 M.2 2230 E Key
  • Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 1, 4 USB 2.0
  • Dual independent displays: LVDS + DP++, DP++ + DP++
  • 2 DDR4 SODIMM up to 32GB
  • 8th Gen Intel® Core™ with Intel® H310

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
4K2K Display
Windows
Mini PCIe
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

CS103-H310 Related Tags

#IoT#Intel#4K2K Display#Windows#Linux#DP#DDR4#RoHS Certification
Mini IX Motherboard Front

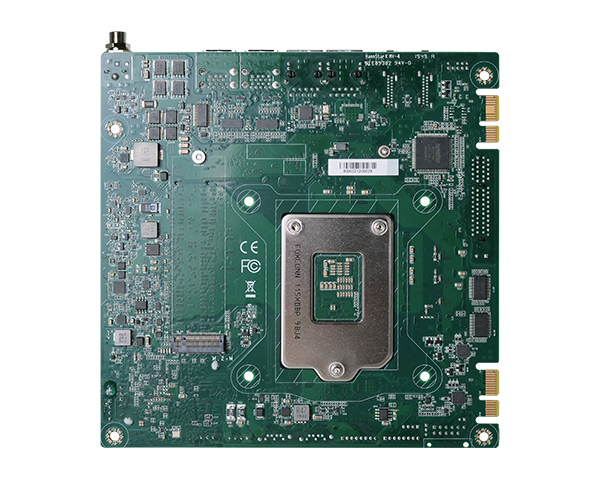

Mini IX Motherboard Back

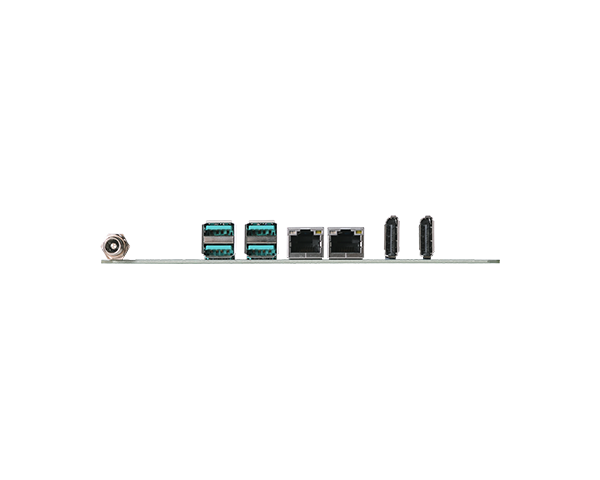

Mini IX Motherboard I/O

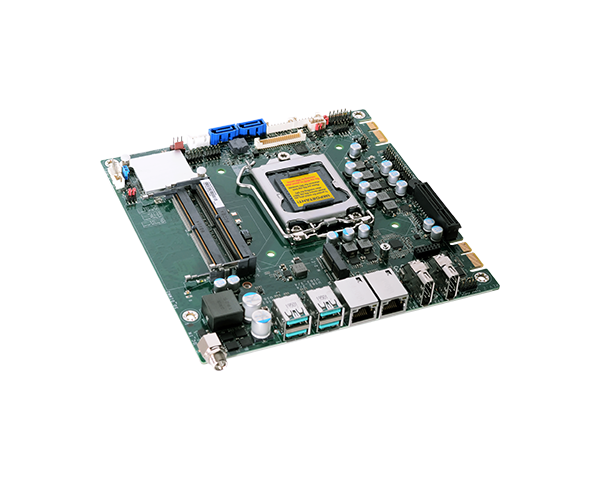

Mini IX Motherboard Side
System
Processor
9th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8GHz; TDP 35W)
Intel® Core i5-9500E Processor (Core 6; Max speed 4.2GHz; TDP 65W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6GHz; TDP 35W)
Intel® Core i3-9100E Processor (Core 4; Max speed 3.7GHz; TDP 65W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2GHz; TDP 35W)
8th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6GHz; TDP 65W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0GHz; TDP 35W)
Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1GHz; TDP 65W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5GHz; TDP 35W)
Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6GHz; TDP 65W)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1GHz; TDP 35W)
Intel® Pentium G5400 Processor (Core 2; Max speed 3.7GHz; TDP 58W)
Intel® Celeron G4900 Processor (Core 2; Max speed 3.1GHz; TDP 54W)
Intel® Celeron G4900T Processor (Core 2; Max speed 2.9GHz; TDP 35W)
Chipset
Intel® H310 Chipset
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 2666MHz
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® UHD Graphics 630 (only Pentium G5400, Celeron G4900 support 610 )
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
1x LVDS
2 x DP++
LVDS: resolution up to 1920x1200 @ 60Hz
DP1.2: resolution up to 4096x2304 @ 60Hz
Dual Displays
DP++ + LVDS, DP++ + DP++
Expansion
Interface
1 x PCIe x4 (Gen 3)
2 x DFI proprietary extension bus for PCIe/PCI expansion
1 x M.2 2230 E Key (USB/PCIe)
1 x M.2 2280 M Key (PCIe Gen2 x1)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I219LM PHY (10/100/1000Mbps)
1 x Intel® I211AT PCIe (10/100/1000Mbps)
Rear I/O
Ethernet
2 x GbE (RJ-45)
USB
4 x USB3.1 Gen1
Display
2 x DP++
Internal I/O
Serial
2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (2.0mm pitch)
USB
4 x USB 2.0 (2.0mm pitch)
Display
1 x LVDS
Audio
1 x Front Audio (2.0mm pitch)
SATA
2 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM 2.0
Power
Type
9-36V DC-in
Connector
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)
Consumption
Idle: i7-8700 65W: 19V @ 0.61A (11.59W)
Max: i7-8700 65W: 19V @ 5.74A (109.06W)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
607,574 hrs @ 25°C; 361,791 hrs @ 45°C; 234,097 hrs @ 60°C; 173,560 hrs @ 70°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
Height PCB: 1.6mm
Top Side: 20mm, Bottom Side: 3mm
Packing List
Packing List
• 1 CS103 motherboard
• 1 Serial ATA data with power cable (Length: 300mm) A81-002013-000G
• 1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CS103-H310
    Part Number :
    770-CS1032-000G
    Description :
    2 DDR4 SODIMM, 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 1, 4 USB 2.0, 2 SATA 3.0, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015011-001G
    Description :
    Length: 250mm, 1 x COM ports
  • Item Name :
    Serial ATA data with power cable
    Part Number :
    A81-002013-000G
    Description :
    Length: 300mm
  • Item Name :
    I/O shield
    Part Number :
    A49-CS1031-000G
    Description :
  • Item Name :
    I/O shield (Thin Type)
    Part Number :
    A49-CS1031-100G
    Description :
  • Item Name :
    Thermal solution
    Part Number :
    A71-103004-000G
    A71-101158-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
  • Item Name :
    Serial ATA power cable
    Part Number :
    A81-002044-016G
    Description :

Based on 8th Gen Intel® Core™ Processors

DFI’s brand new board series with 8th Generation Intel® Core™ processors are ideally designed for what’s coming in the new era. We have a full form factor lineup from Mini-ITX, micro-ATX, ATX, to SOM integrated with better CPU performance support with up to 6 processor cores increasing 10% performance than previous generation even when multitasking.

Complete Product Line

DFI offers a complete product series from different form factor motherboards like ATX, microATX, Mini-ITX, and system-on-modules based on 8th Generation Intel® Core™ Processor Family with high-performance design. It is able to be perfectly fitted into different applications.

Optimized Productivity & Responsiveness

DFI’s product series are supported with Intel® Optane™ memory to accelerate computer’s responsiveness to multitask workloads without wasting too much time. Additionally, our products support with 64 GB DDR4 RAM memory up to 2666 MHz to enhance better memory bandwidth and memory transfer speeds. DFI’s motherboard comes with an M.2 (2280) to support NVMe drives with write speeds up to 3500MB/s which are 7 times over SATA SSDs.

Improved and Multiple I/O Options

Our product series with 8th gen processors adopt the newest technology USB Type-C and USB 3.1 Gen2 to benefit data transfer rates of up to 10 Gbps. It’s two times faster than USB 3.0. Furthermore, our ATX motherboard series come with Intel Q370 chipset and 24 PCIe lanes, which have 4 more PCIe lanes than the Intel Q170 chipset motherboard. This enables rich I/Os and multiple expansions, making it an ideal solution for machine vision and industrial automation application.

Fantastic Visual Performance

DFI’s completed product series with Intel 8th gen processors have the capability of delivering advanced 4K video experiences supported with resolution higher than 1080p and high quality UHD streaming media for applications such as digital signage, digital security, and surveillance.

Enhanced Security Protection

For defending equipment from external threats of security awareness, DFI’s motherboards are available with the advanced feature of iAMT 12.0 for remote management and repair of systems. Aside from iAMT 12.0, DFI’s motherboards are supported with TPM 2.0 for protecting confidential data and improving system integrations.
