COM630-B

System-On-Modules Carrier Board COM630-B
  • COM Express® R1.0, Pin-out Type 2
  • Supports Compact/Basic modules
  • Multiple displays: 1 LVDS, 1 VGA
  • Rich I/O: 1 GbE, 8 USB 2.0, 4 COM
  • ATX form factor

Status : Launched

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

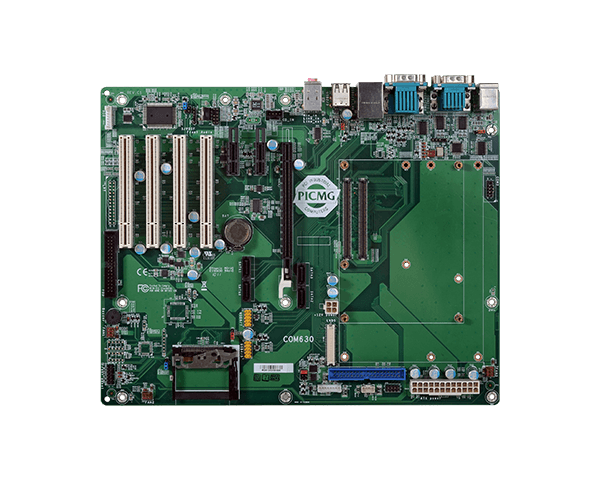

COM Express Basic/Compact Modules, COM630-B

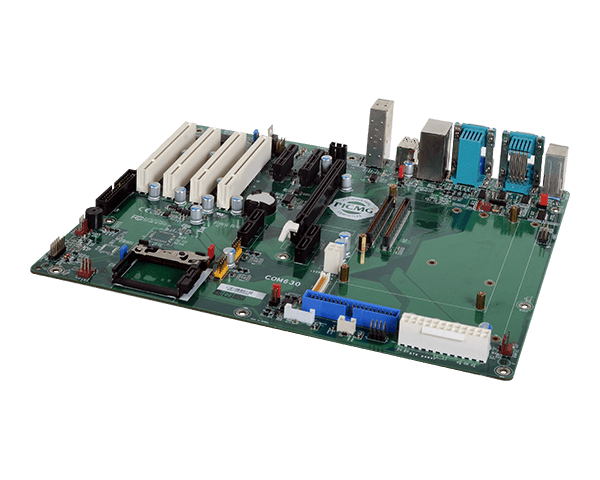

COM Express Basic/Compact Modules, COM630-B
COM Express Basic/Compact Modules, COM630-B
COM Express Basic/Compact Modules, COM630-B
Graphics
Display
1 x VGA
1 x LVDS
Expansion
Interface
1 x PCIe x16
4 x PCIe x1
2 x PCI
1 x CompactFlash Socket
Audio
Audio Codec
Realtek ALC262

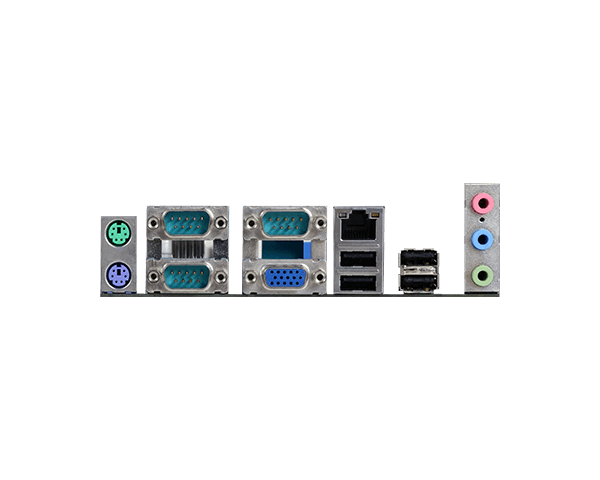

Rear I/O
Ethernet
1 x GbE (RJ-45)
Serial
3 x DB-9 Serial Interface Connector
USB
4 x USB 2.0
PS/2
2 x PS/2
Display
1 x VGA
Audio
1 x Line-in
1 x Line-out
1 x Mic-in
Internal I/O
Serial
1 x DB-9 Serial Interface Connector
USB
4 x USB 2.0
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio
1 x Audio (Line-out/Mic-in)
1 x CD-in
1 x S/PDIF
SATA
4 x SATA 2.0
DIO
1 x 8-bit DIO
Other I/O
1 x IDE
1 x FDD
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Connector
4-pin ATX 12V power
24-pin ATX power
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
ATX Form Factor 305mm (12") x 244mm (9.6")
Compliance
PICMG COM Express® R1.0, Type 2 Basic, Compact Modules
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UL
Packing List
Packing List
1 COM630-B board
1 USB port cable
1 Serial ATA data cable
1 Serial ATA power cable
1 IDE cable
1 FDD cable
1 I/O shield
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Serial ATA data cable
    Part Number :
    TBD
    Description :
  • Item Name :
    Serial ATA power cable
    Part Number :
    TBD
    Description :
  • Item Name :
    USB port cable
    Part Number :
    TBD
    Description :
  • Item Name :
    IDE cable
    Part Number :
    TBD
    Description :
  • Item Name :
    I/O shield
    Part Number :
    TBD
    Description :
