PR611-C621

Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE

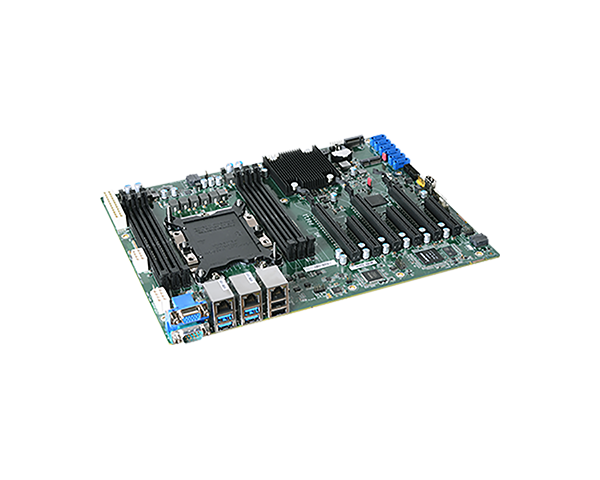

Industrial Motherboards ATX PR611-C621
  • 1st/2nd Gen Intel® Xeon® Scalable Family
  • 6 DDR4 RDIMM up to 192GB
  • Multiple expansion: 3 PCIe x16, 3 PCIe x8 (shared w/ PCIe x16), 2 M.2
  • Rich I/O: 2 Intel GbE, 1 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1
  • 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)

Status : Launched

PCIe x16
VGA
Multiple Expansion
12V DC-in
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

Related Tags

#IoT #Intel #PCIe x16 #Windows #Linux #VGA #Multiple Expansion #DDR4
PR611-C621
PR611-C621
PR611-C621
System
Processor
1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W
Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W
Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W
Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W
Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W
2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket:
Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W
Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W
Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W
Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W
Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W
Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W
Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W
Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W
Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W
Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W
Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W
Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W
Chipset
Intel® C621 Chipset
Memory
6 x 288-pin RDIMM up to 192GB
Single Channel DDR4 up to 2933 MHZ
BIOS
Insyde SPI 128Mbit
Graphics
Display
1 x VGA (opt.)
Single Display
VGA (opt.)
Expansion
Interface
3 x PCIe x16 (Gen 3)
3 x PCIe x8 (Gen 3)(share w/ PCIe x16)
1 x M.2 M key 2280 (SATA/PCIe Gen3 x4 NVMe)
1 x M.2 E key 2230 (USB 2.0/PCIe Gen3 x2)
Audio
Audio Codec
ALC887
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
IPMI: RTL8211F (opt.)
Rear I/O
Ethernet
2 x GbE (RJ-45)
1 x dedicated IPMI LAN (opt.)
Serial
1 x RS-232 (DB-9)
USB
4x USB 3.1 Gen1
2x USB 2.0 stack (opt.w/ RJ45+USB2.0 stack)

Internal I/O
USB
2x USB 2.0 header (2x USB 2.0)
1x USB 2.0 vertical Type A
1x USB 3.1 Gen1 header (2x USB 3.1 Gen1)
SATA
6 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10

SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 sec/Min
Security
TPM
TPM 2.0 (opt.)
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Idle: Xeon Gold 5218 - 3.3V @ 0.06A (0.198Watt); 5V @ 1.75A (8.75Watt); 12V @ 1.67A (20.04Watt)
Max.: Xeon Gold 5218 - 3.3V @ 0.08A (0.264Watt); 5V @ 2.94A (14.7Watt); 12V @ 11.53A (138.36Watt)
Idle: Xeon Platinum 8276M - 3.3V @ 0.03A (0.099Watt); 5V @ 1.65A (8.25Watt); 12V @ 1.63A (19.56Watt)
Max.: Xeon Platinum 8276M - 3.3V @ 0.05A (0.165Watt); 5V @ 2.65A (13.25Watt); 12V @ 18.43A (221.16Watt)
Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 IoT Enterprise LTSB RS5(64-bit)
Windows Server 2019
Windows Server 2016
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH, Non-condensing
Storage: 5 to 90% RH, Non-condensing
MTBF
PR611-C621: 558,025 hrs @ 25°C; 339,879 hrs @ 45°C ; 224,136 hrs @ 60°C
PR611-C621 w/ IPMI-Mgnt: 510,709 hrs @ 25°C; 306,113 hrs @ 45°C ; 200,130 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
Mechanism
Dimensions
ATX Form Factor 305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 37.34mm
Packing List
Packing List
1 PR611-C621 motherboard
1 I/O shield A49-PR6110-020G
2 M.2 screw A32-112016-041G
1 CPU Clip 348-436471-100G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    PR611-C621DRI     Part Number :
     770-PR6111-000G     Description :
    2 LAN, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 1 VGA, 1 IPMI-Mgnt, -5 to 65°C
  • Model Name :
    PR611-C621DR     Part Number :
     770-PR6111-100G     Description :
    2 LAN, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable     Part Number :
     A81-001066-016G     Description :
    Length: 350mm
  • Item Name :
    Cooler     Part Number :
     A71-101400-000G     Description :
    Narrow ILM LGA 3647
  • Item Name :
    USB 3.1 Gen1 cable     Part Number :
     A81-001052-023G     Description :
    Length: 320mm
  • Item Name :
    Serial ATA data cable     Part Number :
     332-553001-005G     Description :
    Length: 500mm
