SD170|Intel®|Industrial Motherboards|DFI

SD170
Home Industrial Motherboards Mini-ITX SD170
  • 6th/7th Gen Intel® Core™ with Intel® H110
  • 2 DDR4 SODIMM up to 32GB
  • Three independent displays: VGA + HDMI 1.4 + DP++
  • Rich I/O: 4 Intel GbE, 4 COM, 4 USB 3.0, 5 USB 2.0
  • Multiple expansion: 1 PCIe x16, 1 Mini PCIe, 1 M.2 M key
  • 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

4K2K Display
PCIe x16
Windows
Mini PCIe
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

SD170 Related Tags

#IoT#Intel#Mini PCIe#4K2K Display#PCIe x16#Windows#Linux#HDMI#DVI-I#DVI-D#VGA#DP#DDR4#RoHS Certification#CE Certification#FCC Certification
Mini IX Motherboard Front

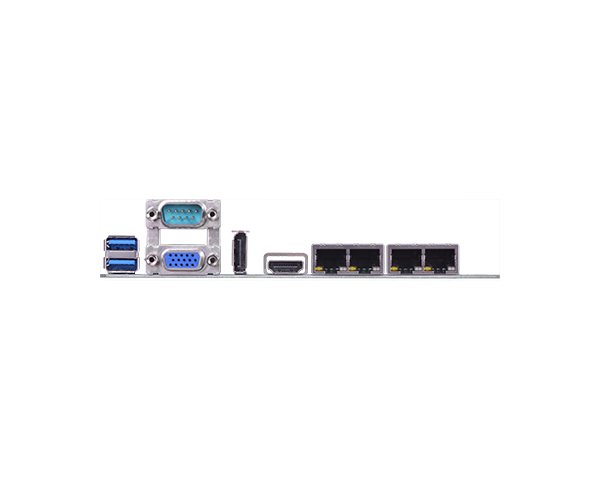

Mini IX Motherboard I/O

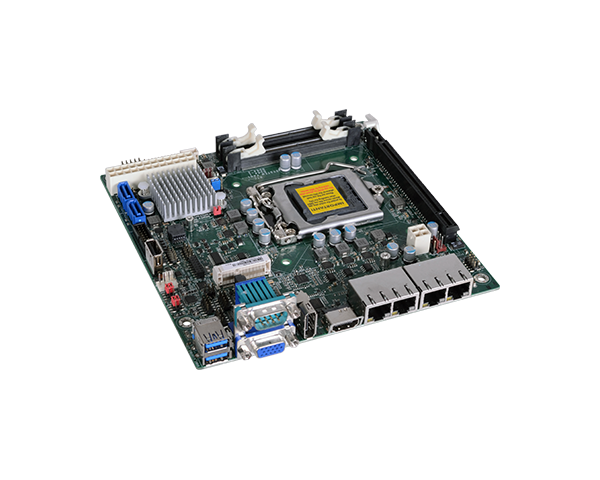

Mini IX Motherboard Side
System
Processor
7th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-7700 Processor, Quad Core, 8M Cache, 3.6GHz (4.2GHz), 65W
Intel® Core™ i5-7500 Processor, Quad Core, 6M Cache, 3.4GHz (3.8GHz), 65W
Intel® Core™ i3-7101E Processor, Dual Core, 3M Cache, 3.9GHz , 65W
6th Generation Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-6700, Quad Core, 8M Cache, 3.4GHz (4.0GHz), 65W
Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
Intel® Core™ i5-6500, Quad Core, 6M Cache, 3.2GHz (3.6GHz), 65W
Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
Intel® Core™ i3-6100, Dual Core, 3M Cache, 3.7GHz, 47W
Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
Intel® Pentium® G4400, Dual Core, 3M Cache, 3.3GHz, 47W
Intel® Pentium® G4400TE, Dual Core, 3M Cache, 2.4GHz, 35W
Intel® Celeron® Processor G3900, Dual Core, 2M Cache, 2.8GHz, 65W
Intel® Celeron® Processor G3900TE, Dual Core, 2M Cache, 2.6GHz, 35W
Chipset
Intel® H110
Memory
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x HDMI 1.4
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
HDMI 1.4: resolution support 4K @ 30Hz
DP: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + HDMI + DP++
Expansion
Interface
1 x PCIe x16 (Gen 3)
1 x Full-size Mini PCIe (USB2.0/SATA, PCIe x1 opt. and share with M.2) (support SIM slot)
1 x M.2 2280 M key (PCIe x1/SATA, PCIe x1 opt. and shared with Mini PCIe)
Audio
Audio Codec
Realtek ALC888S-VD2-GR (Realtek ALC262 opt.)
Ethernet
Controller
4 x Intel® I210AT PCIe (10/100/1000Mbps) or Intel® I211AT PCIe (10/100/1000Mbps) (opt.)
Rear I/O
Ethernet
4 x GbE (RJ-45)
Serial
1 x RS-232/422/485
USB
2 x USB 3.0 Type A connector
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power)
2 x RS-232
USB
2 x USB 3.0
4 x USB 2.0
1 x USB 2.0 Type A connector for Watchdog Timer
Audio
1 x S/PDIF
1 x Line-out
1 x Mic-in
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 16-bit DIO
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
fTPM 2.0/dTPM 2.0 (opt.)
Power
Type
ATX
Connector
4-pin ATX 12V power
24-pin ATX power
Consumption
dle: i7-7700 65W: 12V @ 1.28A (15.36W), 5V @ 0.54A (2.7W), 3.3V @ 0.47A (1.55W)
Max: i7-7700 65W: 12V @ 6.78A (81.36W), 5V @ 0.72A (3.6W), 3.3V @ 0.58A (1.91W)
Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 7 (/WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 64-bit
Note: 7th Gen Intel Core processors only support Win 10. Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
SD170: 661,927 hrs @ 25°C; 395,601 hrs @ 45°C ; 253,051 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: 20mm
Bottom Side: 3mm
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 SD170 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports) A81-015011-001G
1 Serial ATA data cable (Length: 300mm) A81-002013-000G
I/O shiled A49-SD1700-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SD170
    Part Number :
    770-SD1701-000G
    Description :
    2 DDR4 SODIMM, 4 LAN, 4 COM, 9 COM, 10 USB, ATX, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001032-016G
    Description :
    Length: 200mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015001-000G
    Description :
    Length: 250mm, 1 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    A81-002013-000G
    Description :
    Length: 300mm
  • Item Name :
    Thermal solution
    Part Number :
    A71-103004-000G
    A71-101158-000G
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
