WM343|Industrial Computers|DFI

WM343
Home Industrial Computers Mini-ITX/ATX System & Chassis WM343
  • Wallmount Chassis for microATX motherboard
  • Designed for ATM application
  • Up to 2x 3.5"/2.5" SATA drive bays
  • Optional optical drive bay
  • Supports up to 4 expansion slots
  • Color : no coating or black coating

Status : Launched QUOTE NOW

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

WM343 Related Tags

#RoHS Certification#CE Certification#FCC Certification

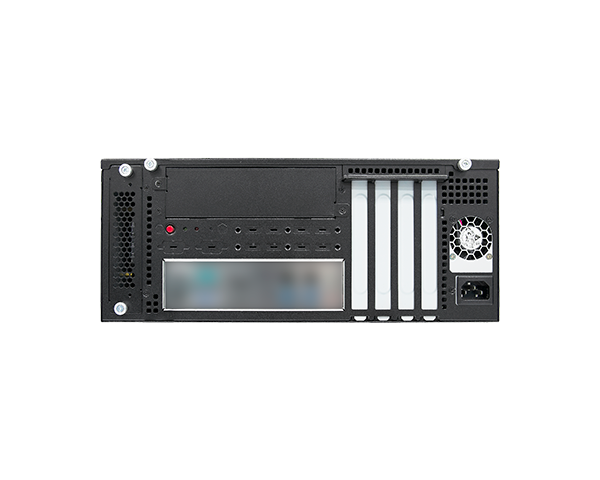

WM343 Wallmount Chassis

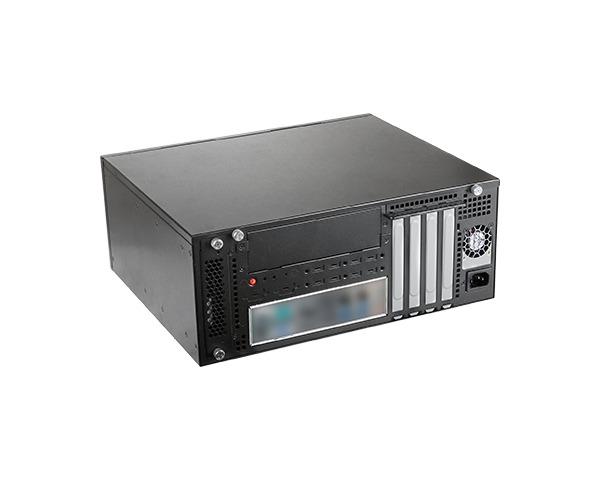

WM343 Wallmount Chassis

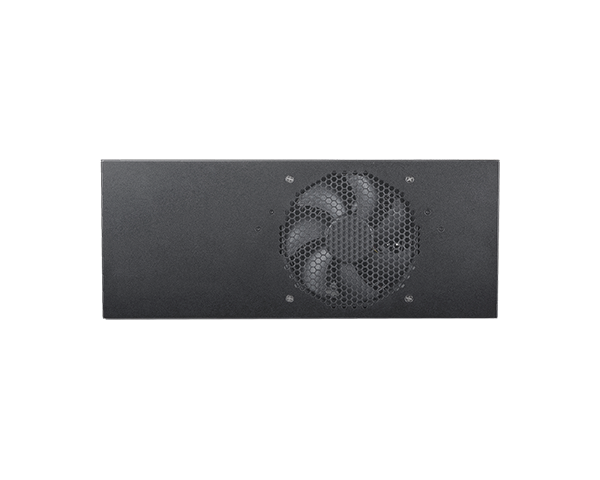

WM343 Wallmount Chassis

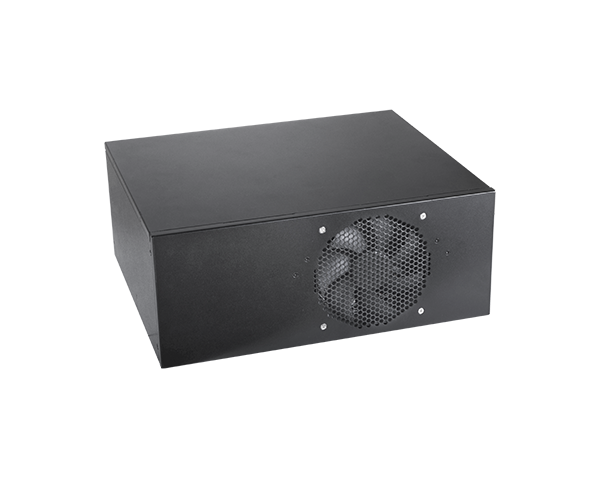

WM343 Wallmount Chassis
Storage
External/Internal
1 or 2 x 3.5"/2.5" SATA Drive Bays (1 x 3.5" SATA drive bay, by default)
1 x 5.25" Optical Drive Bay (available upon request)
Expansion
Interface
4 x Expansion Slot
LED
Indicators
1 x Power LED
1 x HDD LED
I/O
Rear
2 x DB-9 Cutout
8 x USB 2.0 Cutout
Buttons
1 x Power Button
Cooling
Fan
1 x System Fan
Power
Supply
Flex ATX 250W
Environment
Operating Temperature
0 to 50°C
Storage Temperature
0 to 60°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Sheet Metal
Mounting
Wall Mount
Dimensions (W x H x D)
349mm x 140.2mm x 290.9mm (13.74" x 5.52" x 11.45")
Weight
7kg
Color
no coating or black coating
Standards and Certifications
Shock
Operating: 3G
Non-operating: 5G
Vibration
Operating: Random 5~500Hz 0.5G
Non-operating: Sine 10~500Hz 1.5G
Package Drop
ISTA Project 1A
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
1 WM343 Chassis
1 SATA Data Cable (Length: 650mm)
4 HDD Screws
1 250W PSU
1 System Fan
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    WM343
    Part Number :
    7A0-WM3430-000G
    Description :
    WM343:uATX Chassis, no coating, W/Flex Power 250W F/G RoHS
  • Model Name :
    WM343
    Part Number :
    7A0-WM3430-001G
    Description :
    WM343:uATX Chassis, no coating, W/O Power F/G RoHS
  • Model Name :
    WM343
    Part Number :
    7A0-WM3430-100G
    Description :
    WM343:uATX Chassis, no coating, W/Flex Power 250W, 2 x 3.5" HDD bracket F/G RoHS
  • Model Name :
    WM343
    Part Number :
    7A0-WM3430-200G
    Description :
    WM343:uATX Chassis, Black, W/Flex Power 250W F/G RoHS
  • Model Name :
    WM343
    Part Number :
    7A0-WM3430-300G
    Description :
    WM343:uATX Chassis, Black, W/O Power F/G RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Wall Mount
    Part Number :
    761-WM3410-000G
    Description :
    WM343/WM341 Wall Mount Kit, RoHS
  • Item Name :
    2.5” HDD/SSD Support
    Part Number :
    531-510360-000G
    Description :
    One F3 x5 Copper Standoff, RoHS (note: one bay needs 4 pcs of standoff)
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
