RPS631-H610|Intel®|Industrial Motherboards|DFI

RPS631-H610
Home Industrial Motherboards ATX RPS631-H610
  • 14th/13th/12th Gen Intel® Core Processors
  • 2 DDR5 UDIMM up to 96GB
  • Dual Displays: VGA, HDMI
  • Supports 4K High Resolution
  • Multiple Expansion: 1 PCIe x16, 2 PCIe x4, 4 PCI, 1 M.2 M key
  • Rich I/O: 1 Intel 2.5GbE, 1 Intel 1GbE, 4 USB 3.2 Gen1, 6 USB 2.0, 4 SATA 3.0, 6 COM

Status : Sample Available QUOTE NOW

4K2K Display
PCIe x16
Multiple Expansion
Dual Display
DDR5
Rich I/O
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

RPS631-H610 Related Tags

#12th Gen Intel® Core™ Processor#DDR5#13th Gen Intel® Core™ Processor#Windows 10#Edge AI Computing#14th Gen Intel® Core™ Processor#IoT#Windows 11#Intel#4K2K Display#1G Ethernet#PCIe x16#Windows#Linux#HDMI#VGA#Multiple Expansion#12V DC-in#CE Certification#FCC Certification#2.5G Ethernet

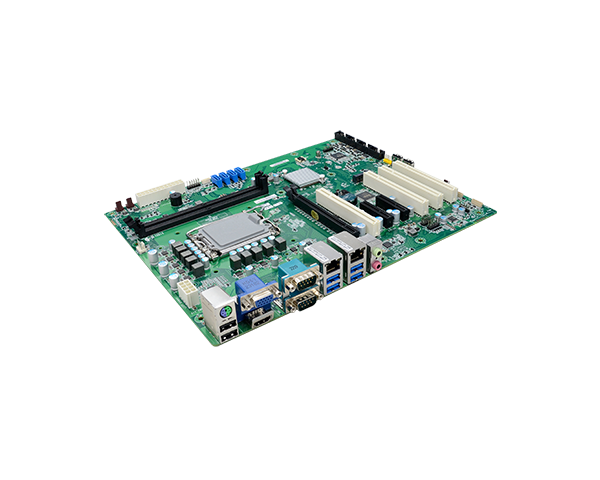

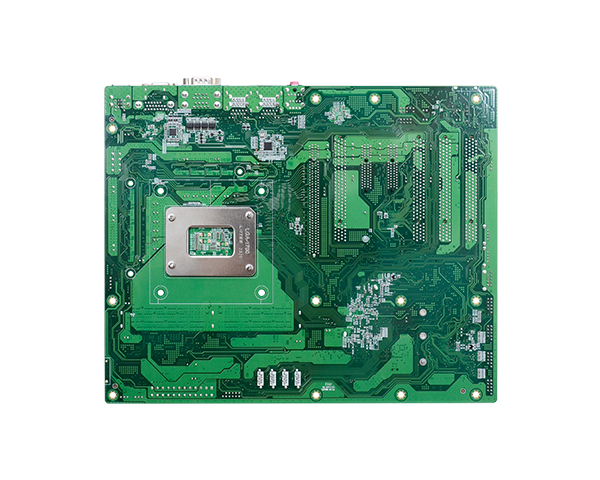

RPS631-H610|Intel®|Industrial Motherboards|DFI
RPS631-H610|Intel®|Industrial Motherboards|DFI
RPS631-H610|Intel®|Industrial Motherboards|DFI
RPS631-H610|Intel®|Industrial Motherboards|DFI
System
Processor
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 2.0 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 1.1 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 2.1 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 1.3 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 2.6 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 1.7 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 2.5 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 1.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 3.5 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 2.7 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset
Intel® H610 Chipset
Memory
Two 288-pin UDIMM up to 96GB (Non-ECC)
Dual Channel DDR5 up to 5600 MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x HDMI 2.0a
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
Expansion
Interface
1 x PCIe x16 (Gen 4)
2 x PCIe x4 (Gen 3, x2)
4 x PCI
1 x M.2 M key (PCIe x2 NVMe)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
1 x Intel® I226V
1 x Intel® I219V

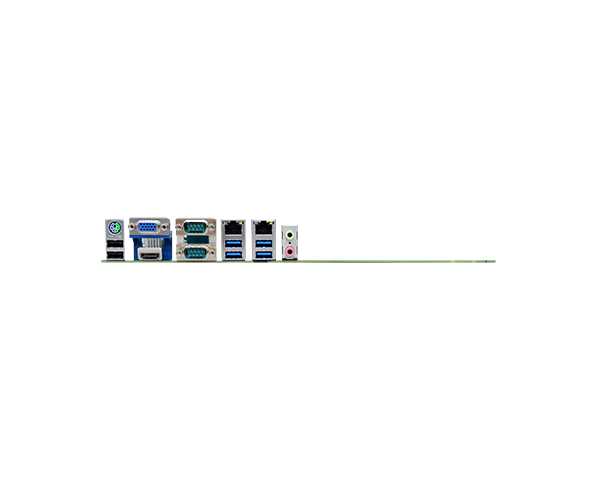

Rear I/O
Ethernet
1 x 2.5GbE (RJ-45)
1 x 1GbE (RJ-45)
Serial
2 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.2 Gen 1
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt.)
Internal I/O
Serial
4 x RS-232
USB
2 x USB 2.0 Type A
1 x USB 2.0 (2.54mm pitch, colay vertical Type A, opt.: MOQ required)
Audio
1 x Front Audio
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
DIO
4-IN / 8-OUT DIO
SMBus
1 x SMBus
eSPI
1 x eSPI
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i9-12900K: 3.3V @ 0.4A (1.32W); 5V @ 0.85A (4.25W); 12V @ 1.09A (13.08W)
Max.: i9-12900K: 3.3V @ 0.63A (2.08W); 5V @ 3.02A (15.1W); 12V @ 26.39A (316.68W)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11 Enterprise
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
ATX Form Factor
305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 33.3mm
Bottom Side: 4mm
Standards and Certifications
Certifications
CE, FCC Class B
Packing List
Packing List
1 RPS631 motherboard
1 COM port cables (Length: 300mm, 2 x COM ports)
1 Serial ATA data cable (Length: 500mm)
1 I/O shield
1 M.2 screw/standoff
Country of Origin
Country of Origin
China
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPS631-H610E
    Part Number :
    770-RPS6311-000G
    Description :
    2 DDR5 UDIMM, 1 1GbE, 1 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen1, 6 USB 2.0, 1 TPM 2.0, Power 24-pin ATX/8-pin ATX 12V, With Fan, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350/398mm
  • Item Name :
    USB 3.2 Gen1 port cable
    Part Number :
    A81-001052-023G
    Description :
    Length: 320mm
  • Item Name :
    USB 3.2 Gen2 port cable
    Part Number :
    A81-001075-017G
    Description :
    Length: 300mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    A81-002128-017G
    Description :
    Length: 500mm, W/LOCK
    Length: 500mm, W/LOCK, 90D
  • Item Name :
    Thermal solution
    Part Number :
    A71-101136-000G
    A71-101137-000G
    A71-101145-000G
    Description :
    For 35W, Height: 29.39mm
    For 65W, Height: 46mm
    For 95W/125W, Height: 110mm
  • Item Name :
    DP to HDMI Dongle
    Part Number :
    612-D2H13M-000G
    Description :
  • Item Name :
    M.2-COM4
    Part Number :
    770-M2COM1-000G
    Description :
    M.2 serial port module
  • Item Name :
    M.2-2LAN
    Part Number :
    770-M22LN2-000G
    Description :
    M.2 LAN port module
  • Item Name :
    M.2-2PSE
    Part Number :
    770-M22PS2-000G
    Description :
    M.2 PSE module
