RPS310-R680E/Q670E|Intel®|Industrial Motherboards|DFI

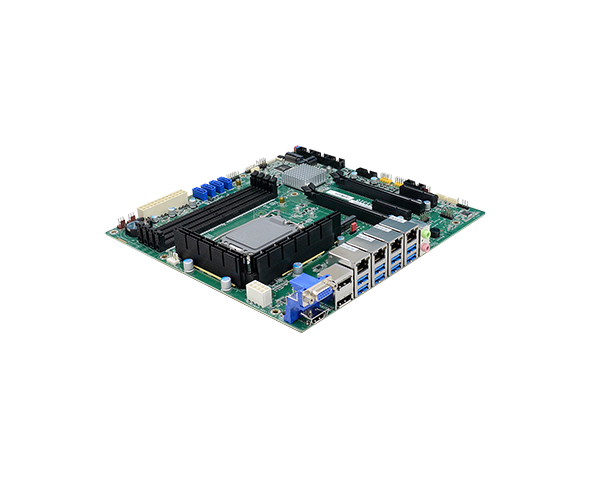

RPS310-R680E/Q670E
Home Industrial Motherboards microATX RPS310-R680E/Q670E
  • 14th/13th/12th Gen Intel® Core™ with Intel® R680E/Q670E chipset
  • 4 DDR5 UDIMM up to 192GB
  • Supports 4 independent displays: VGA, 2 DP++, HDMI
  • Supports 4K resolution
  • Multiple expansion: 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0
  • Rich I/O: 4 Intel 2.5GbE, 4 COM, 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 4 USB 2.0
  • Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.

Status : Sample Available QUOTE NOW

4K2K Display
Multiple Expansion
15 Years CPU Life Cycle Support
Quad Independent Display
DDR5
Rich I/O
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RPS310-R680E/Q670E Related Tags

#12th Gen Intel® Core™ Processor#DDR5#13th Gen Intel® Core™ Processor#Windows 10#14th Gen Intel® Core™ Processor#IoT#Intel#4K2K Display#PCIe x16#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
RPS310-R680E/Q670E|Intel®|Industrial Motherboards|DFI
RPS310-R680E/Q670E|Intel®|Industrial Motherboards|DFI
RPS310-R680E/Q670E|Intel®|Industrial Motherboards|DFI
System
Processor
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 2.0 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 1.1 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 2.1 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 1.3 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 2.6 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 1.7 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 2.5 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 1.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 3.5 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 2.7 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset
Intel® R680E/Q670E Chipset
Memory
Four 288-pin UDIMM up to 192GB (ECC/Non-ECC)
Dual Channel DDR5 up to 4400 MHz
*only R680E support ECC memory
*Speed support list follow User’s Manual
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
2 x DP++
1 x HDMI 2.0a
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
Quad Displays
VGA + 2 DP++ + HDMI
Expansion
Interface
2 x PCIe x16 (Gen 4) (1 x16 signals or 2 x8 signals)
2 x PCIe x4 (Gen 4)
1 x M.2 2230 E key (opt. PCIe/USB 2.0/Intel CNVi support) (Discrete Wifi 6E support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe/SATA support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe support)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
1 x Intel® I226-V
2 x Intel® I226-V (only R680E support)

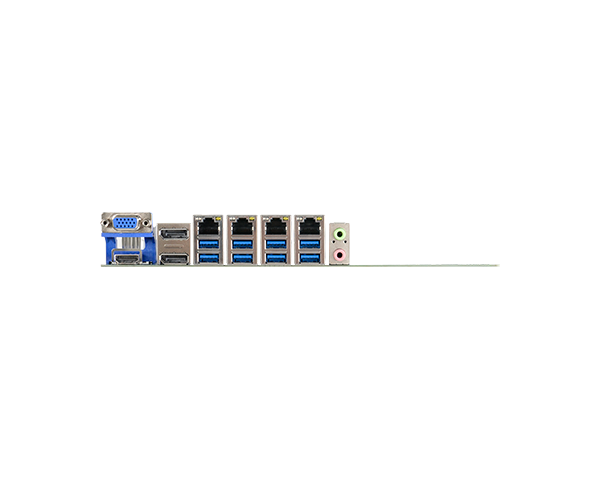

Rear I/O
Ethernet
2 x 2.5GbE (RJ-45) or
4 x 2.5GbE (RJ-45) (only R680E support)
USB
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
Display
2 x DP++
1 x HDMI 2.0a
1 x VGA
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)
Internal I/O
Serial
2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
2 x RS-232 (2.54mm pitch)
USB
2 x USB 3.2 Gen1
4 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 colay vertical Type A)
Audio
1 x Front Audio Header
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
4-IN / 8-OUT DIO
SMBus
1 x SMBus
PS/2
1 x PS/2 (2.54mm pitch)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Nuvoton TPM 2.0
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i9-13900K: 3.3V @ 0.31A (1.023W); 5V @ 1.50A (7.5W); 12V @ 7.78A (93.36W)
Max.: i9-13900K: 3.3V @ 1.16A (3.828W); 5V @ 2.71A (13.55W); 12V @ 26.34A (316.08W)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11 Enterprise
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
477,165 hrs @ 25°C; 271,824 hrs @ 45°C; 171,335 hrs @ 60°C; 124,964 hrs @ 70°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
Mechanism
Dimensions
microATX Form Factor
244mm (9.6") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: TBD Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 RPS310-R680E/Q670E motherboard
1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-RPS310-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPS310-Q670E
    Part Number :
    770-RPS3101-000G
    Description :
    Intel® Q670E Chipset, 4 DDR5 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 4 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, With Fan, -5 to 65°C
  • Model Name :
    RPS310-R680E
    Part Number :
    770-RPS3101-100G
    Description :
    Intel® R680E Chipset, 4 DDR5 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 4 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, With Fan, -5 to 65°C
  • Model Name :
    RPS310-Q670E
    Part Number :
    770-RPS3101-200G
    Description :
    Intel® Q670E Chipset, 4 DDR5 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 4 USB 2.0, TPM 2.0 (fTPM), Power 24-pin ATX/8-pin ATX 12V, With Fan, -5 to 65°C
  • Model Name :
    RPS310-R680E
    Part Number :
    770-RPS3101-300G
    Description :
    Intel® R680E Chipset, 4 DDR5 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 4 USB 2.0, TPM 2.0 (fTPM), Power 24-pin ATX/8-pin ATX 12V, With Fan, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350/398mm
  • Item Name :
    USB 3.2 Gen2 port cable
    Part Number :
    A81-001075-017G
    Description :
    Length: 350mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    A81-002128-017G
    Description :
    Length: 500mm, W/LOCK
    Length: 500mm, W/LOCK, 90D
  • Item Name :
    Thermal solution
    Part Number :
    A71-101136-000G
    A71-101137-000G
    A71-101145-000G
    Description :
    For 35W, Height: 29.39mm
    For 65W, Height: 46mm
    For 95W/125W, Height: 110mm
  • Item Name :
    DP to HDMI Dongle
    Part Number :
    612-D2H13M-000G
    Description :
  • Item Name :
    M.2-COM4
    Part Number :
    770-M2COM1-000G
    Description :
    M.2 serial port module
  • Item Name :
    M.2-2LAN
    Part Number :
    770-M22LN1-000G
    Description :
    M.2 LAN port module
  • Item Name :
    M.2-2PSE
    Part Number :
    770-M22PS1-000G
    Description :
    M.2 PSE module

Industry-leading, Multi-generational Industrial MicroATX Motherboard

The RPS310 is engineered to support multi-generational Intel® 12th, 13th, and 14th Gen (Alder Lake-S, Raptor Lake-S, and Raptor Lake-S Refresh) Core™ processors, ensuring compatibility with the latest advancements in CPU technology. This allows factory automation professionals and production line managers to seamlessly integrate cutting-edge processors into their daily working systems, maximizing production work flow and staying ahead of the curve.

Maximize Graphical Performance in Industrial Computing

With the support of dual PCIe x16 Gen 4 GPU slots, the RPS310 MicroATX motherboard empowers factory automation managers and production line managers to harness higher graphical processing power, enabling smooth operation of graphic-intensive applications, including machine vision for defect inspection in quality assurance and visual data monitoring for production line management. This facilitates next-level efficiency and productivity on the factory floor.

Higher Thermal Power Rating For More Intense Workloads

The RPS310 boasts a robust 125W TDP rating, ensuring reliable performance even in the most demanding industrial environments. Factory automation professionals can trust in the RPS310's ability to withstand rigorous use of higher processing power and complicated computing workloads, minimizing factory production downtime and maximizing productivity in critical manufacturing operations and workflow such as high quality image processing used in quality assurance monitoring, offering better accuracy and avoid less errors.

Robust Expansion Slots & I/O Ports

Featuring a comprehensive expansion slots, including 2x PCIe x16, 2x PCIe x4, 1x M.2 E key, 2x M.2 M key, 4x SATA 3.0, the RPS310 offers ample room for customization and scalability. Factory automation managers can easily expand and upgrade their systems to accommodate additional peripherals, storage devices, and other expansion cards. In addition, a comprehensive array of I/O ports, including 4x Intel 2.5GbE, 4x COM, 4x USB 3.2 Gen 2, 10x USB 3.2 Gen 1 and 13x USB 2.0, facilitating seamless connectivity with industrial devices and peripherals. This enables production line professionals to streamline data collection, communication, and control processes, enhancing factory operational efficiency and flexibility.

Compliance and Certification Ready

Dedicatedly designed for Smart Medical usage, the RPS310 not only has CE and RoHS certifications, but also being the one-and-only within its Medical grade microATX class, FCC and Class B ready as it’s essential for medical devices to ensure electromagnetic compatibility and minimize interference.

Seamless Smart Remote Management – Out-Of-Band (OOB)

RPS310 features DFI’s Out-Of-Band (OOB) remote management service for its edge computing devices. Allowing IT administrators access and control the device remotely, even when edge devices are completely shut down or the operating system (OS) is unresponsive. No matter the device is located locally or remotely, in or outside of enterprise firewalls!
