MDP156｜Industrial Panel PCs & Displays｜DFI

MDP156
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Application-Specific System Medical System MDP156
  • 15.6” Enclosure Display
  • Display Mode VA Type
  • 1920x1080 @60Hz
  • Brightness 250 nits (Typ.)
  • HDMI / VGA / Audio signal Input
  • Response time 25ms
  • Viewing Angle 85/85/85/85
  • Power DC 12V /3A

Status : Launched QUOTE NOW

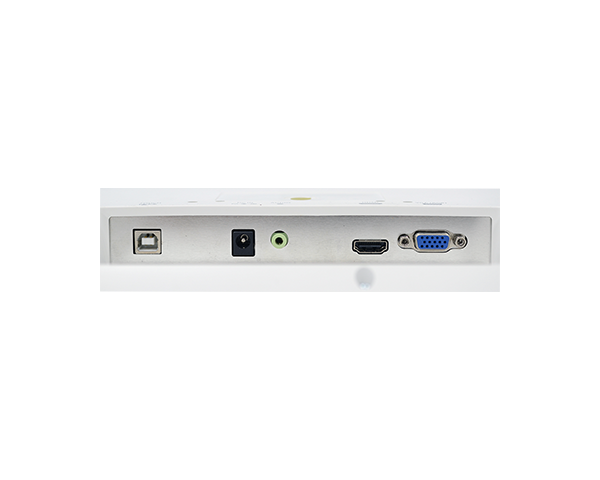

HDMI
VGA
12V DC-in
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UL-US Certification

MDP156 Related Tags

#HDMI#VGA#RoHS Certification#UL Certification#CE Certification#FCC Certification#UL-US Certification#Medical

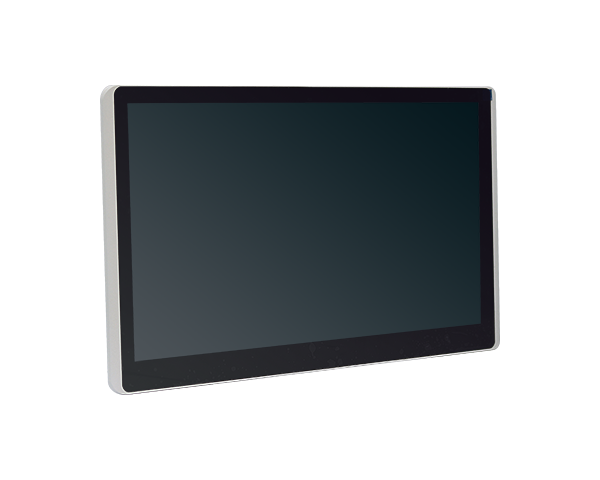

MDP156 15.6" Healthcare Display
MDP156 15.6" Healthcare Display
MDP156 15.6" Healthcare Display
MDP156 15.6" Healthcare Display

Related Products:

Select All - Clear
Display and Touch Screen
Display
1920*1080 @ 60Hz
Brightness
250 nits (Typ.)
Contrast
700:1
View Angle
-85~85(H); -85~85(V)
Max. Color
16.2M
Touch Type
Projected Capacitive Touch
Size/Type
15.6" TFT
I/O
Input ports
1 x VGA
1 x HDMI
1 x Audio
1 x Power

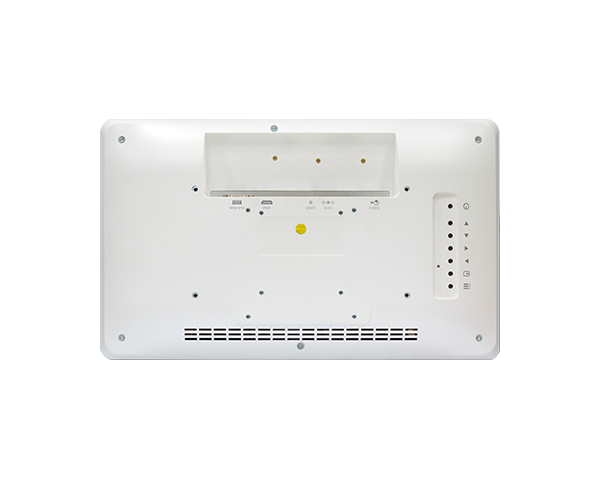

OSD Membrane
Buttons at rear side
Speaker
2 x 2 Watt speaker
Power
Type
DC 12V /3A, < 36 Watt
Consumption
10W typical, normal operation
Environment
Operating Temperature
0 to 40°C
LCD panel life time
50,000 hours
Mechanism
Construction
Sheet Metal
Mounting
VESA Mount 75 x 75
Dimensions (W x H x D)
387.8mm x 232.9mm x 38.45mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UL60601
Packing List
Packing List
1 MDP156 System Unit
1 12V DC in Adapter
1 HDMI cable
1 Quick Installation Guide
COLOR of CASE
COLOR of CASE
White
Viewing Angle
Viewing Angle
170°/170° (CR>10)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
