CS631-C246|Intel®|Industrial Motherboards|DFI

Home Industrial Motherboards ATX CS631-C246
  • 9th/8th Gen Intel® Core™ with Intel® C246
  • 4 DDR4 ECC/Non-ECC DIMM up to 128GB
  • 3 independent displays: VGA + DP++ + DP++
  • Multiple expansion: 2 PCIe x16 (1 x16 signal or 2 x8 signals), 3 PCIe x4, 1 PCIe x1, 1 PCI, 2 Full-sized Mini PCIe, 1 M.2 M key
  • Rich I/O: 2 Intel GbE, 6 COM, 2 USB 3.1 Gen 2, 4 USB 3.1 Gen 1, 6 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

COM ESD Protection: Air Gap ±15kv
4K2K Display
Multiple Expansion
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
You have ,Up to 3 items.
RoHS Certification
CE Certification
FCC Certification

CS631-C246 Related Tags

#IoT#Intel#Mini PCIe#4K2K Display#PCIe x16#Windows#Linux#VGA#DP#Multiple Expansion#DDR4#RoHS Certification#CE Certification#FCC Certification#Legacy ISA/PCI Expansion Port
CS631-C246 | 8th Gen Intel Core | Coffee Lake | ATX | DFI
CS631-C246 | 8th Gen Intel Core | Coffee Lake | ATX | DFI
8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors:
Intel® Xeon® E-2176G (6 Cores, 12M Cache, up to 4.7 GHz); 80W
Intel® Xeon® E-2124G (4 Cores, 8M Cache, up to 4.5 GHz); 71W
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors:
Intel® Xeon® E-2278GEL (8 Cores, 16M Cache, up to 3.9 GHz); 35W
Intel® Xeon® E-2226GE (6 Cores, 12M Cache, up to 4.6 GHz); 80W
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W
Intel® C246 Chipset
Four 288-pin ECC/Non-ECC DIMM up to 128GB
Dual Channel DDR4 2400/2666MHz (Core™ i5/i7 only support non-ECC)
AMI SPI 128Mbit
Intel® HD Gen 9 Graphics
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
1 x VGA
2 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
Triple Displays
VGA + DP++ + DP++
2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signals)
3 x PCIe x4 (Gen 3)
1 x PCIe x1 (Gen 3)
1 x PCI
2 x Full-sized Mini PCIe (1* PCIe/SATA/USB2.0, 1* PCIe/USB2.0)
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x 2 NVMe)
Audio Codec
Realtek ALC888
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i7/i5 supports iAMT)

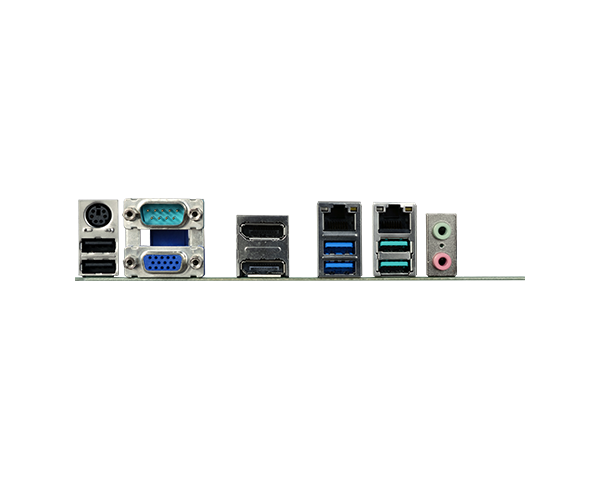

Rear I/O
2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
2 x USB 3.1 Gen2
2 x USB 3.1 Gen1
2 x USB 2.0
1 x PS/2 (mini-DIN-6)
1 x VGA
2 x DP++
1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
Internal I/O
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
2 x USB 3.1 Gen 1 (2.00mm pitch)
4 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 colay vertical Type A) (opt., MOQ required)
1 x Front Audio Header
1 x S/PDIF
5 x SATA 3.0 (up to 6Gb/s, 1 SATA shared with mini PCIe (SATA), default at mini PCIe)
RAID 0/1/5/10
1 x 8-bit DIO
1 x LPC (supports LPC EXT-RS232/RS485 module)
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Infi neon TPM1.2/2.0 (opt., MOQ required)
8-pin ATX 12V power
24-pin ATX power
Typical: i7-8700K: 3.3V @ 0.36A (1.188Watt); 5V @ 0.53A (2.65Watt); 12V @ 0.35A (4.2Watt)
Max.: i7-8700K:3.3V @ 0.65A (2.145Watt); 5V @ 1.44A (7.2Watt); 12V @ 10.59A (127.08Watt)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 10 IoT Enterprise 64-bit
Operating: 0 to 60°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Operating: 5 to 90% RH
Storage: 5 to 90% RH
536,604 hrs @ 25°C; 299,525 hrs @ 45°C; 185,098 hrs @ 60°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
ATX Form Factor
305mm (12") x 244mm (9.6")
PCB: 1.6mm
Top Side: 38.5mm
Bottom Side: 4.4mm
Standards and Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 CS631-C246 motherboard
1 COM port cables (Length: 300mm, 2 x COM ports): A81-015026-023G
1 Serial ATA data cable (Length: 500mm): 332-553001-005G
1 I/O shield: A49-CS6310-000G
1 M.2 2242/2260/half mini PCIe standoff: A33-725019-090G
1 M.2 screw: A32-112016-041G
1 mini PCIe screw: A32-112016-041G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    Part Number :
    Description :
    4 DDR4 DIMM, 2 LAN, 6 COM, 12 USB, 0 to 60°C
  • Model Name :
    Part Number :
    Description :
    4 DDR4 DIMM, 2 LAN, 6 COM, 12 USB, 1 TPM 2.0, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    Description :
    Length: 350mm
  • Item Name :
    USB 3.1 Gen1 port cable
    Part Number :
    Description :
    Length: 320mm
  • Item Name :
    COM port cable
    Part Number :
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    Description :
    Length: 500mm, W/LOCK
  • Item Name :
    Thermal solution
    Part Number :
    Description :
    For 35W, Height: 37.3mm
    For 65W, Height: 74.47mm
    For 95W, Height: 77.2mm
  • Item Name :
    LPC EXT-RS232 module
    Part Number :
    Description :
    4 x RS232 ports
  • Item Name :
    LPC EXT-RS485 module
    Part Number :
    Description :
    4 x RS485 ports
  • Item Name :
    DP to HDMI dongle
    Part Number :
    Description :

Based on 8th Gen Intel® Core™ Processors
