SD330-Q170

Industrial Motherboards microATX SD330-Q170
  • 6th/7th Gen Intel® Core™ with Intel® Q170
  • Rich I/O: 2 Intel GbE, 6 COM, 6 USB 3.0, 6 USB 2.0
  • Multiple expansion: 1 PCIe x16, 1 PCIe x4, 2 PCI, 1 Mini PCIe
  • Four display ports: VGA, LVDS, DVI-I, DP++ Supports three independent displays
  • 4 DDR4 DIMM up to 64GB
  • 15-Year CPU Life Cycle Support

Status : Launched

COM ESD Protection: Air Gap ±15kv
Wide-temp: -40°C~85°C
DP
Multiple Expansion
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

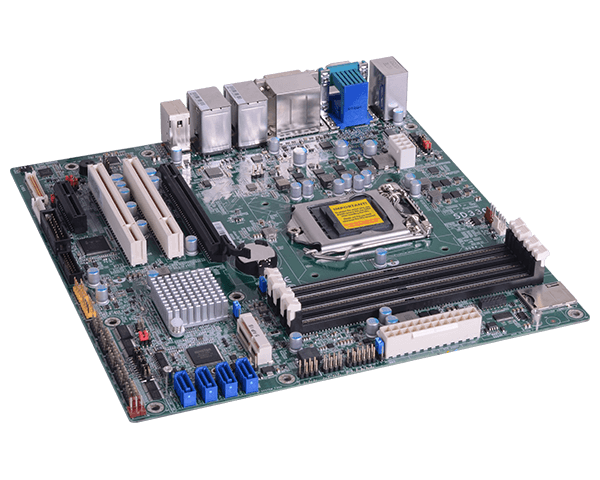

SD330-Q170 microATX
SD330-Q170 microATX
SD330-Q170 microATX
System
Processor
6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 65W
Chipset
Intel® Q170 Chipset
Memory
Four 288-pin DIMM up to 64GB
Dual Channel DDR4 1866/2133MHz
BIOS
Insyde SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x LVDS
1 x DVI-I (DVI-D signal)
1 x DP++
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel, resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2160 @ 60Hz
Triple Displays
VGA + DVI-I (DVI-D signal) + DP++
VGA + LVDS + DP++ VGA + LVDS + DVI-I (DVI-D signal)
LVDS + DVI-I (DVI-D signal) + DP++
Expansion
Interface
1 x PCIe x16 (Gen 3)
1 x PCIe x4 (Gen 3)
2 x PCI
1 x Full-size Mini PCIe (USB/PCIe/mSATA, PCIe by default)
1 x SIM (opt., MOQ required)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
4 x USB 3.0
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x VGA
1 x DVI-I (DVI-D signal)
1 x DP++
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)
Internal I/O
Serial
1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB
2 x USB 3.0 (2.00mm pitch)
4 x USB 2.0 (2.54mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio
1 x Audio (Line-out/Mic-in) (opt., MOQ required)
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
1 x 8-bit DIO
LPC
1 x LPC (supports LPC EXT-RS232/RS485 module)
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
opt., MOQ required
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
OS Support
Windows 7 32/64-bit
Window 8.1 64-bit
Windows 10 64-bit
Ubuntu 16.04
Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Ubuntu 16.04.
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
363,066 hrs @ 25°C; 204,404 hrs @ 45°C; 127,841 hrs @ 60°C
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
microATX form factor
244mm (9.6") x 244mm (9.6")
Height
PCB: TBD
Top Side: TBD
Bottom Side: TBD
Packing List
Packing List
1 SD330-Q170 motherboard
1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G
1 Serial ATA data cable (Length: 500mm) 332-553001-005G
1 I/O shield A49-SD3300-001G
1 DVD
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    SD330-Q170
    Part Number :
    770-SD3301-100G
    Description :
    4 DDR4 DIMM, 2 LAN, 6 COM, 12 USB, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    LPC EXT-RS485 module
    Part Number :
    770-EXTRS1-100G
    Description :
    4 x RS485 ports
  • Item Name :
    Thermal solution
    Part Number :
    552-200049-000G
    A71-103004-000G
    Description :
    For 65W, Height: 72.8mm
    For 35W, Height: 37.3mm
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    USB 3.0 port cable
    Part Number :
    A81-001052-023G
    Description :
    Length: 320mm
  • Item Name :
    USB 2.0 port cable
    Part Number :
    332-253010-026G
    Description :
    Length: 350/398mm
  • Item Name :
    LPC EXT-RS232 module
    Part Number :
    770-EXTRS1-000G
    Description :
    4 x RS232 ports
