EC300

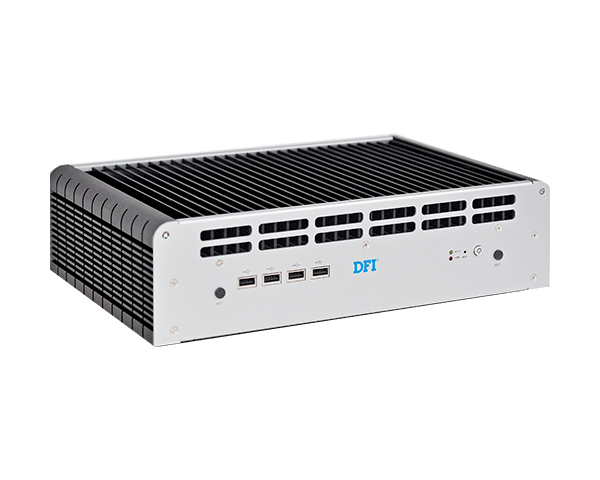

Industrial Computers Fanless Embedded System EC300
  • 3rd/2nd Gen Intel® Core™ Modular-Designed System
  • Supports DDR3/DDR3L SODIMM up to 16GB
  • Up to 2x 2.5" SATA drive bay, 1 CF socket
  • Supports mSATA via the mini PCIe slot
  • Modular-Designed Embedded System
  • 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

Status : Launched

Fanless Design
DVI-D
Mini PCIe
DDR3L
Wide Voltage: 9~30V DC-in
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification
EC300 Modular-Designed System
EC300 Modular-Designed System
EC300 Modular-Designed System
EC300 Modular-Designed System
EC300 Modular-Designed System
System
Processor
3rd Generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i7-3610QE (6M Cache, up to 3.3 GHz); 45W
Intel® Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35W
Intel® Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W
2nd Generation Intel® Core™ processors (32nm process technology)
Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W
Intel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W
Intel® Core™ i3-2330E (3M Cache, 2.2 GHz); 35W
Intel® Celeron® B810 (2M Cache, 1.6 GHz); 35W
Chipset
Intel® QM77 Express Chipset
Memory
Two 204-pin SODIMM up to 16GB
Dual Channel DDR3/DDR3L 1066/1333/1600MHz SODIMM
Graphics
Controller
Intel® HD Graphics 4000
Display
1 x DVI (DVI-D signal)
1 x VGA
VGA display resolution up to 2048x1536 @ 60Hz
DVI display resolution up to 1920x1080 @ 60Hz
Dual Displays
1 x VGA + 1 x DVI
Storage
External/Internal
1 or 2 x 2.5" SATA 3.0 Drive Bay
Standard: 1 single drive bay for 1 SATA drive
Option: Single drive bay for second SATA drive (supports RAID 0/1/5/10)
1 x CompactFlash socket
Expansion
Interface
1 x Mini PCIe (PCIe/USB/SATA)
1 x XCT0-3G Riser Card ( 1 Mini PCIe + 1 SIM, supports 3G) (available upon request)
Audio
Audio Codec
Realtek ALC262 High Definition Audio
2 watt, 4Ω Power Amplifier
Ethernet
Controller
2 x Intel® WG82579LM PCIe with iAMT7.0 (10/100/1000Mbps)
4 x Intel® 82574 PCIe (10/100/1000Mbps) (-CR4G65)
4 x Intel® 82574 PCIe (10/100/1000Mbps) (-CR4866)
- Fully IEEE std 802.3af-2003 compliant (-CR4866)
- Power output: 48V DC 15.4 watts of power per PoE port (Type 1 Mode A 15.4W per port) (-CR4866)
Supports wireless 802.11 b/g/n via the mini PCIe slot
LED
Indicators
1 x Power LED
1 x HDD LED
1 x Alert LED
Front I/O
USB
4 x USB 2.0 (type A)
Buttons
1 x Power Button
1 x Reset Button
Wi-Fi Antenna
2 x Wi-Fi Module Antenna Hole
Rear I/O
Ethernet
EC300-CR6881, EC300-CR6G60, EC300-CRA060
2 x GbE (RJ-45)
EC300-CR4G65:
5 x GbE (RJ-45)
EC300-CR4866:
2 x GbE (RJ-45)
4 x PoE GbE (RJ-45)
Serial
EC300-CR6881, EC300-CR6G60:
6 x RS-232/422/485 (DB-9)
EC300-CRA060:
4 x RS-232/422/485 (DB-9)
6 x RS-232/422/485 (5-pole terminal block)
EC300-CR4G65:
4 x RS-232/422/485 (DB-9)
EC300-CR4866:
2 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9)
USB
EC300-CR6881:
2 x USB 3.0 (type A)
2 x USB 2.0 (type A)
EC300-CR6G60, EC300-CRA060, EC300-CR4G65, EC300-CR4866:
2 x USB 3.0
Display
EC300-CR6881, EC300-CR4866:
1 x 8-bit DIO (9-pole terminal block)
EC300-CR6G60, EC300-CR4G65:
2 x 8-bit DIO (9-pole terminal block)
EC300-CR6881:
1 x VGA (DB-15)
1 x DVI-I (DVI-D signal)
EC300-CR6G60, EC300-CRA060, EC300-CR4G65, EC300-CR4866:
1 x VGA (DB-15)
Audio
1 x Speaker-out
Buttons
1 x Reset Button
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Wide Range 9~30V
Connector
3-Pole Terminal Block
OS Support
OS Support
Windows XP, WES 2009, POSReady 2009, Windows 7, WES 7
Windows 8.1, WES 8
Linux (Distribution available upon request)
Environment
Operating Temperature
0°C ~ 60°C (-CR6881/-CR6G60/-CRA060/-CR4G65)
0°C ~ 55°C (-CR4866)
Storage Temperature
-20°C ~ 65°C
Relative Humidity
5% ~ 90%
Mechanism
Construction
Aluminum + SGCC
Mounting
Wall Mount
Dimensions (W x H x D)
340.5mm x 88mm x 223mm (W x H x D)
Weight
9 kg
Standards and Certifications
Shock
Half Sine Wave 15G, 11ms, 3 Shock Per Axis
Vibration
IEC68-2-64 (HDD)
Certifications
CE, FCC Class A, RoHS
UL (EC300-CR6881)
Packing List
Packing List
1 EC300 system unit
1 SATA data/power cable
1 120W power adapter (-CR6G60/-CRA060/-CR6881/-CR4G65)
1 160W power adapter (-CR4866)
1 Quick Installation Guide
1 CD disk includes: Drivers / Manual
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC300-CR6G60
    Part Number :
    750-EC3000-100G
    Description :
    Fanless, i7/i5/i3, QM77, 1 VGA, 2 LAN, 6 COM, 16-bit GPIO, 6 USB, RoHS
  • Model Name :
    EC300-CR4866
    Part Number :
    750-EC3000-400G
    Description :
    Fanless, i7/i5/i3, QM77, 1 VGA, 4 PoE Gigabit LAN, 2 LAN, 4 COM, 8-bit GPIO, 6 USB, RoHS
  • Model Name :
    EC300-CR4G65
    Part Number :
    750-EC3000-A00G
    Description :
    Fanless, i7/i5/i3, QM77, 1 VGA, 5 LAN, 4 COM, 16-bit GPIO, 6 USB, RoHS
  • Model Name :
    EC300-CR6881
    Part Number :
    750-EC3000-300G
    Description :
    Fanless, i7/i5/i3, QM77, 1 DVI, 1 VGA, 2 LAN, 6 COM, 8-bit GPIO, 8 USB, RoHS
  • Model Name :
    EC300-CRA060
    Part Number :
    750-EC3000-200G
    Description :
    Fanless, i7/i5/i3, QM77, 1 VGA, 2 LAN, 10 COM, 6 USB, RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    CPU
    Part Number :
    785-CP988BML
    Description :
    CPU, Socket 988B, Long-term support, RoHS
  • Item Name :
    8GB DDR3L
    Part Number :
    785-RSOD38G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 8GB, RoHS
  • Item Name :
    4GB DDR3L
    Part Number :
    785-RSOD34G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 4GB, RoHS
  • Item Name :
    2GB DDR3L
    Part Number :
    785-RSOD32G-L
    Description :
    SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 2GB, RoHS
  • Item Name :
    1GB DDR3
    Part Number :
    785-RSOD31G
    Description :
    SODIMM, DDR3 Module, 1GB, RoHS
  • Item Name :
    500GB HDD
    Part Number :
    785-H25500G
    Description :
    2.5” SATA HDD, 500GB, RoHS
  • Item Name :
    320GB HDD
    Part Number :
    785-H25320G
    Description :
    2.5” SATA HDD, 320GB, RoHS
  • Item Name :
    1TB SSD
    Part Number :
    785-S251TBG
    Description :
    2.5" SATA SSD, 1TB MLC, RoHS
  • Item Name :
    512GB SSD
    Part Number :
    785-S25512G
    Description :
    2.5" SATA SSD, 512GB MLC, RoHS
  • Item Name :
    256GB SSD
    Part Number :
    785-S25256G
    Description :
    2.5" SATA SSD, 256GB MLC, RoHS
  • Item Name :
    128GB SSD
    Part Number :
    785-S25128G
    Description :
    2.5" SATA SSD, 128GB MLC, RoHS
  • Item Name :
    64GB SSD
    Part Number :
    785-S25064G
    Description :
    2.5" SATA SSD, 64GB MLC, RoHS
  • Item Name :
    Wi-Fi
    Part Number :
    761-110091-000G
    Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    3G
    Part Number :
    785-EC3G
    Description :
    For EC3xx Series and EC2xx Series 3G Module
  • Item Name :
    128GB mSATA
    Part Number :
    785-MS128GMF
    Description :
    mSATA Card, 128GB MLC, RoHS
  • Item Name :
    64GB mSATA
    Part Number :
    785-MS64GMF
    Description :
    mSATA Card, 64GB MLC, RoHS
  • Item Name :
    32GB mSATA
    Part Number :
    785-MS32GMF
    Description :
    mSATA Card, 32GB MLC, RoHS
  • Item Name :
    16GB mSATA
    Part Number :
    785-MS16GMF
    Description :
    mSATA Card, 16GB MLC, RoHS
  • Item Name :
    8GB mSATA
    Part Number :
    785-MS08GMF
    Description :
    mSATA Card, 8GB MLC, RoHS
  • Item Name :
    4GB mSATA
    Part Number :
    785-MS04GMF
    Description :
    mSATA Card, 4GB MLC, RoHS
  • Item Name :
    HDD Bracket
    Part Number :
    761-EC3000-200G
    Description :
    2nd HDD Bracket kit, RoHS
  • Item Name :
    Power Cord
    Part Number :
    785-PWRD
    Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    8GB CF
    Part Number :
    785-CF08G
    Description :
    CF Card, 8G, Industrial Grade SLC
  • Item Name :
    Wall Mount
    Part Number :
    785-EC3WMK
    Description :
    Wall Mount Kit

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.
