HR908-B
Home System-On-Modules COM Express Compact HR908-B
  • 3rd/2nd Gen Intel® Core™, Intel® QM67 Chipset
  • Rich I/O: 1 Intel GbE, 8 USB 2.0
  • Multiple expansion: 1 PCIe x16, 4 SATA, 1 LPC, 1 I2C, 1 SMBus
  • 1 VGA, 1 LVDS, 3 DDI (HDMI/DVI/DP/SDVO)
  • Single channel DDR3L 1600MHz SODIMM up to 8GB
  • 7-Year CPU Life Cycle Support Until Q3' 18(Based on Intel IOTG Roadmap)

Status : EOL

Compact Size
1G Ethernet
VGA
15 Years CPU Life Cycle Support
DDR3L
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

HR908-B Related Tags

#Intel#Compact Size#1G Ethernet#PCIe x16#Windows#HDMI#VGA#DDR3L#RoHS Certification#CE Certification#FCC Certification

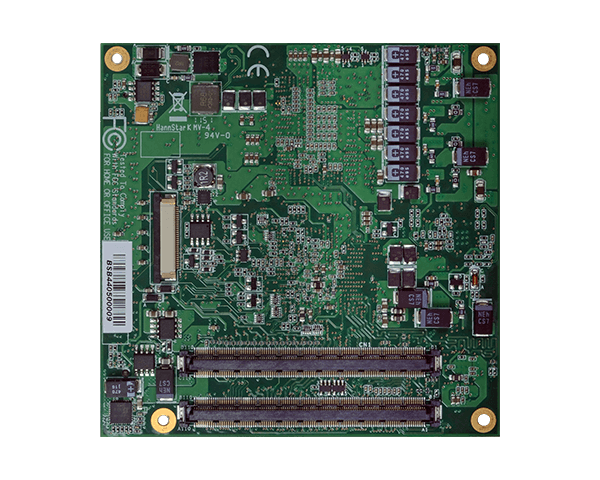

COM Express Type 6, HR908-B

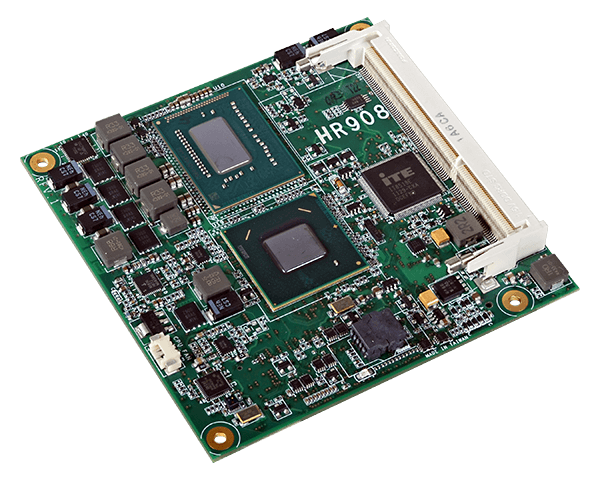

COM Express Type 6, HR908-B
COM Express Type 6, HR908-B
System
Processor
BGA 1023 packaging technology
- 3rd Generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i7-3615QE (6M Cache, up to 3.3 GHz); 45W
Intel® Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35W
Intel® Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W
- 2nd Generation Intel® Core™ processors (32nm process technology)
Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W
Intel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W
Intel® Core™ i3-2330E (3M Cache, 2.2 GHz); 35W
Intel® Celeron® B810 (2M Cache, 1.6 GHz); 35W
Chipset
Intel® QM67 Chipset
Memory
One 204-pin SODIMM up to 8GB
Single Channel DDR3L 1600MHz
BIOS
UEFI SPI 64Mbit
Graphics
Controller
Intel® HD Graphics 4000 (3rd generation processors)
Intel® HD Graphics 3000 (2nd generation processors)
Intel® HD Graphics (Intel® Celeron™ processors)
Feature
DirectX Video Acceleration (DXVA) for accelerating video processing
- Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 3.0 (3rd generation processors)
Supports DirectX 10.1/10/9 and OpenGL 3.0 (2nd generation processors)
Display
1 x VGA
1 x LVDS
3 x DDI (HDMI/DVI/DP)
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 36/48-bit, resolution up to 1920x1200 @ 60Hz
HDMI/DVI/DP: resolution up to 1920x1200 @ 60Hz
Expansion
Interface
1 x PCIe x16 (Gen 3)
1 x PCIe x4 and 3 PCIe x1 or 7 PCIe x1
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® 82579LM (10/100/1000Mbps)
I/O
USB
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
2 x SATA 2.0 (up to 3Gb/s)
GPIO
1 x 8-bit GPIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption
TBD
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit)
Windows XP Professional x64 & SP2 (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Environment
Temperature

Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
TBD
Mechanism
Dimensions
COM Express® Compact 95mm (3.74") x 95mm (3.74")
Compliance
PICMG COM Express® R2.1, Type 6
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
1 HR908 board
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat sink with fan
    Part Number :
    A71-111008-000G
    Description :
  • Item Name :
    Heat spreader
    Part Number :
    A71-011011-000G
    Description :
  • Item Name :
    COM101-BAT carrier board kit
    Part Number :
    TBD
    Description :
  • Item Name :
    COM331-B carrier board kit
    Part Number :
    TBD
    Description :
  • Item Name :
    Heat spreader with heat sink and fan
    Part Number :
    761-CR9680-000G
    Description :
