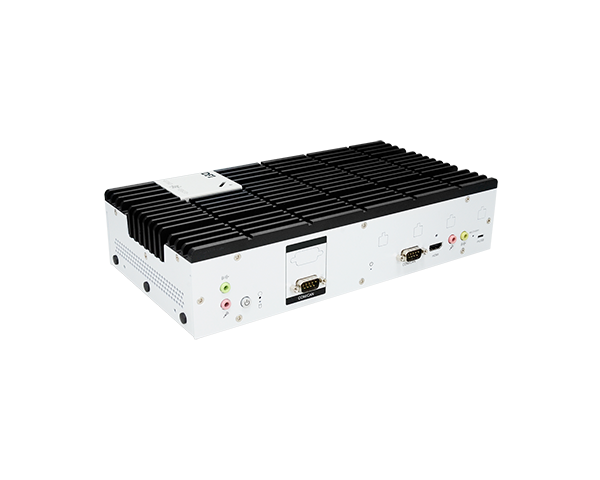

X6-MTH-ORN｜Intel®｜Industrial Computers｜DFI

X6-MTH-ORN
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Computers AI Inference/Training System X6-MTH-ORN
  • Reinforce Nvidia ORIN NX computing power by Intel® Core™ Ultra Processor
  • AI engine NVIDIA Jetson Orin NX, up to 157 TOPS
  • Support Remote management and OTA by DFI OOB module
  • 4 M.2 B, E, M key expansion slots
  • Rich I/O: Audio, COM ports, CAN bus, 8 USB 3.2, HDMI, VGA, PoE LANs
  • Support M2A-OOB

Status : Preliminary QUOTE NOW

Fanless Design
Multiple Expansion
Quad Independent Display
Rich I/O
AI
Out-of-band (OOB)
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
X6-MTH-ORN Embedded Solution Powered by:
MTH968

MTH968

MTH968｜Intel®｜System-On-Modules｜DFI

COM Express Type 6, Intel® Core™ Ultra processors, DDR5, 1 VGA + 1 LVDS/eDP + 2 DDI, 8 PCIe x1, 2 PCIe x4, 1 PCIe x8, 1 I2C, 1 SMBus, 1 LPC/eSPI, 2 UART, 1 Intel 2.5GbE, 2 USB 4.0, 4 USB 3.2, 8 USB 2.0, 2 SATA 3.0

X6-MTH-ORN Related Tags

#DDR5#9~36V DC-in#Edge AI Computing#M.2#Nvidia Orin NX#Nvidia Orin Nano#M2A-OOB#MXM#NVIDIA AI#Out-Of-Band (OOB)#Intel® Core™ Ultra processors #AI#Intel#CAN-Bus#Fanless Design#1G Ethernet#Windows#Linux#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#UKCA Certification
X6-MTH-ORN｜Intel®｜Industrial Computers｜DFI
X6-MTH-ORN｜Intel®｜Industrial Computers｜DFI
X6-MTH-ORN｜Intel®｜Industrial Computers｜DFI
X6-MTH-ORN｜Intel®｜Industrial Computers｜DFI
X6-MTH-ORN｜Intel®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Core™ Ultra 7 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W) / 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Intel® Core™ Ultra 5 125U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12 MB cache, 15W) / 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Memory
Two 260-Pin SO-DIMM up to 64GB / nVidia Jetson Orin NX 16GB
Dual Channel DDR5 5600MHz / nVidia Jetson Orin NX 16GB 128-bit LPDDR5
BIOS
AMI SPI
Graphics
Controller
Intel® Iris® Xe Graphics
Feature
DX12, Open GL 4.6, Vulkan 1.2
HW Decode: HEVC/VP9/AV1/AVC/H.265/MJPEG
HW Encode: HEVC/VP9/AV1/AVC/H.265/MJPEG
Display
Stacked type VGA and HDMI from COMe eDP
HDMI from Jetson module
ITE IT6564FN DP HDMI/VGA converter from eDP
AI Accelerator
Interface
Nvidia Orin NX, up to 157 TOPS (MAXN Super mode supported)
Storage
Internal
M.2 2242/2280 M key for Intel Core Ultra (NVMe)
M.2 2242/2280 M key for Jetson module (NVMe)
Expansion
Interface
Intel Core Ultra:
1 x M.2 Key E 2230 slot (USB 2 +PCIex1 signal) for Wi-Fi 6E
1 x M.2 Key B 3042/3052 slot (USB3 signal) for 5G/LTE with Nano SIM
1 x M.2 2242/2280 M key (SATA 3and PCIe gen3 x1 for NVMe)

Jetson Orin:
1 x M.2 Key E 2230 slot (USB 2 +PCIex1 signal) for Wi-Fi 6E (or 1 x M.2 Key B 3042/3052 slot (USB3 signal) for 5G/LTE with Nano SIM)
1 x M.2 2242/2280 M key (SATA 3and PCIe gen3 x1 for NVMe)
Ethernet
Controller
1 RJ45 GbE from Intel i210
2x2 stacked RJ45 GbE ports from 4x Intel i210
Optional 2x 15W PoE via X103-PE30-48
Hybrid architecture communication: internal GbE interface
LED
Indicators
1 x Power Status
1 x HDD activity

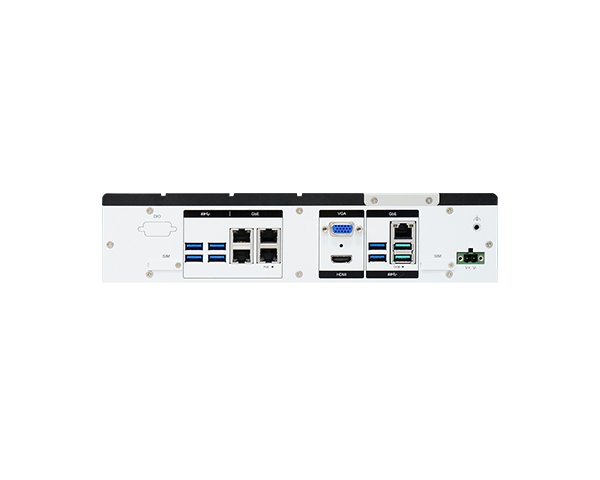

Front I/O
Ethernet
1 x GbE (Intel Core Ultra)
2x2 stacked RJ45 GbE (Jetson)
USB
4 x USB 3.2 from Type 6 (Intel Core Ultra)
4 x USB 3.0 from Jetson module
Display
1 x VGA (Intel Core Ultra)
1 x HDMI port (Intel Core Ultra)
DC in
1 x 2-pin power terminal block

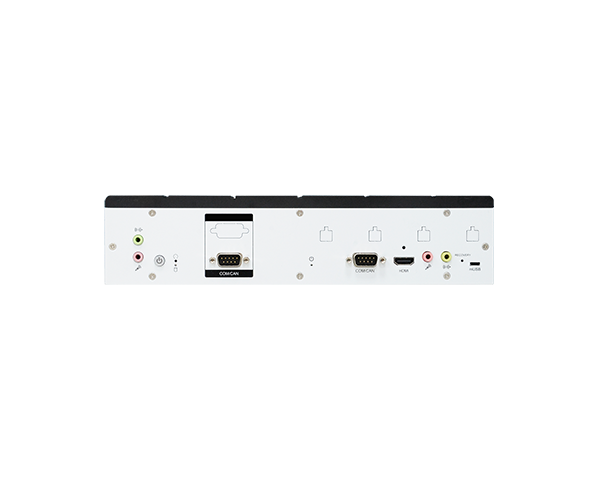

Rear I/O
Serial
1 x DB-9 RS232 port (Intel Core Ultra)
1 combo DB-9 RS232/ CAN bus (Jetson)
USB
1 x micro USB from Jetson module
Display
2 x HDMI port
Side I/O
Antenna Hole
6 x antenna holes
Internal I/O
OOB
Support DFI OOB module
Security
TPM
TPM 2.0 on Intel Core Ultra
Power
Type
9-36V DC
Connector
1x 2-pin terminal block
RTC Battery
Rechargeable battery
OS Support
Microsoft
Windows 10, 11
Linux
Ubuntu 22.04
Environment
Operating Temperature
-20°C to 60°C (sku dependent)
Storage Temperature
-40°C to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Aluminum + SGCC
Mounting
Wall mount (mounting brackets and screws)
DIN mount by optional
Dimensions (W x H x D)
250 x 65 x 150 mm
Weight
< 3.5 kg
Standards and Certifications
Shock
· Operation
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)

· Non- Operation
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
· Operation
IEC 60068-2-64 Test Fh: Vibration board-band random test
Random,2Grms @ 5~500 Hz, 30min.

· Non- Operation
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep sine, 3Grms @ 10~500Hz, 30min.
Certifications
CE, FCC Class A, RoHS, UKCA
IP Rating
IP20
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
