EC600-RPS

Overview

Home Industrial Computers Embedded Fanless PC EC600-RPS

13th/12th Generation Intel® Core™ with Intel® H610E/R680E

Supports DDR5 SODIMM up to 64GB

Rich I/O connectivity: 2 2.5GbE, 4 GbE(or 2 GbE, 2 PoE), 10 COM, 5 USB 3.2(Gen2x1), 1 USB Type-C

Multiple Expansion: 5 M.2 slots

Support 5G Communication

Operating Temperature: -20 to 70°C

15-Year CPU Life Cycle Support Until Q4' 36 (Based on Intel IOTG Roadmap)

Status : Preliminary QUOTE NOW

+Compare +Quotation

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW

Quotation
You have ,Up to 3 items.
QUOTE NOW

EC600-RPS｜Intel®｜Industrial Computers｜DFI

System

Processor

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

Chipset

Intel® H610E/R680E Chipset

Memory

2x 260-pin SODIMM up to 64GB
Dual Channel DDR5 4800MHz

BIOS

AMI SPI 256Mbit

Graphics

Controller

Intel® HD Gen 9 Graphics

Feature

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

Display

1 x VGA
1 x HDMI/DP++ (auto detection)

VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz

Storage

Internal

2 x M.2 2280 M key
[R680E] support RAID 0/1

Expansion

Interface

1 M.2 2280 M key (SATA/PCIe x4)
1 M.2 2280 M key (PCIe x4)
1 M.2 3042/3052 B key (SATA/PCIex1/USB3)
1 M.2 2230 E key (PCIe x1/ USB2.0)
1 M.2 3042 A key(for support DFI OOB module)
1 miniPCIe full size (PCIe x1/ USB2.0)

Ethernet

Controller

2 x Intel® I226IT (10/100/1000/2500Mbps)
1 x Intel® I219LM (10/100/1000Mbps)
3 x Intel® I210IT (10/100/1000Mbps)

LED

Indicators

1 x Status LED
1 x HDD LED

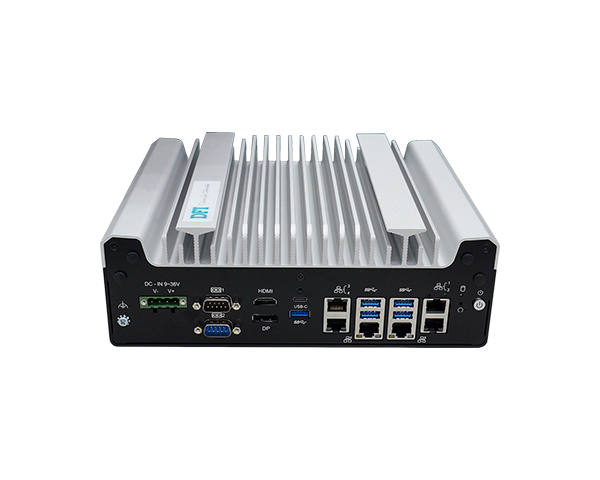

Front I/O

Ethernet

2 x 2.5 GbE (RJ-45)
4 x GbE (RJ-45)

Serial

2 x RS232/422/485 (DB-9, selectable by BIOS, COM1 cab select serial port or DIO by jumper setting)

USB

5 x USB3.2 (Gen2x1)
1 x USB Type-C (Alt. mode)

Display

1 x HDMI/DP++ (auto detection)

DIO

8 bit (DB-9, share with COM1)

Buttons

1 x Power button
1 x Reset button

Antenna

4 x Antenna hole

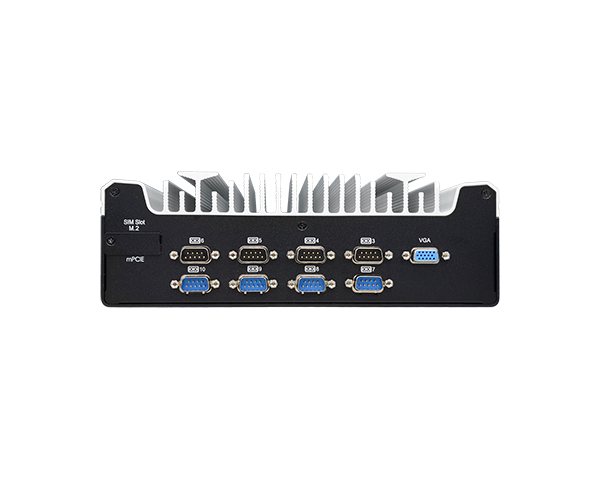

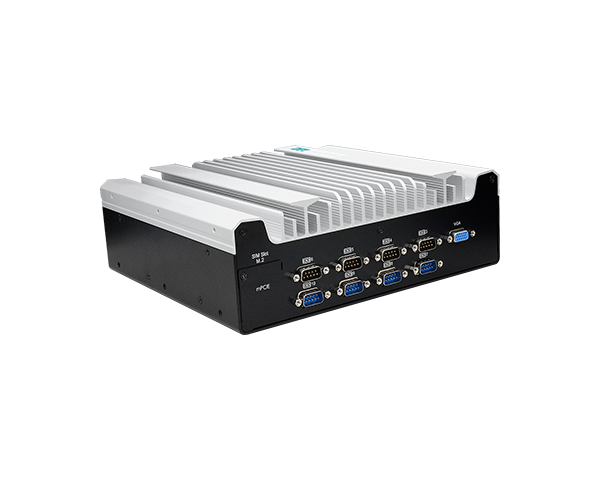

Rear I/O

Serial

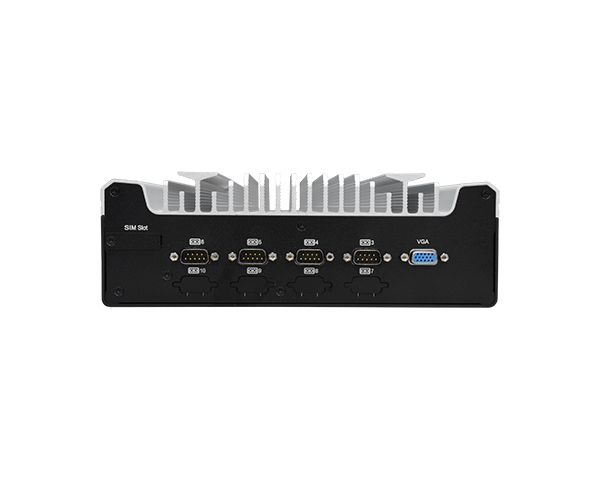

[H610E] 4 x RS232 (DB-9)
[R680E] 8 x RS232 (DB-9)

Display

1 x VGA

SIM

1 x Nano SIM slot (external)

Watchdog Timer

Output & Interval

System reset, programmable via software from 1 to 255 seconds

Security

TPM

TPM 2.0

Power

Type

Wide range 9~36V

Connector

3-pole terminal nlock

OS Support

Microsoft

Windows 10 IoT Enterprise 2021 LTSC

Linux

Linux (available upon request)

Environment

Operating Temperature

TDP 35W CPU: -20 to 70°C (wide temperature M.2 SSD storage & airstream 0.7m/sec)
TDP 65W CPU: -20 to 50°C (wide temperature M.2 SSD storage & airstream 0.7m/sec)

Storage Temperature

-20 to 85°C

Relative Humidity

5 to 95% RH (non-condensing)

Mechanism

Construction

Metal + Aluminum

Mounting

Wall Mount

Dimensions (W x H x D)

249.5 x 85 x 223mm

Weight

4.5 kg

Standards and Certifications

Shock

Half sine wave 3G, 11ms, 3 shock per axis

Vibration

IEC68-2-64

Certifications

CE, FCC Class A

Packing List

· 1 EC600-RPS system unit
· 1 M.2 & miniPCIe slot screws set
· 1 Terminal block 3 pole for DC input
· 1 Cable with 2 wire stripped and tinned to DC jack

Country of Origin

Taiwan (TAA Compliant Country)

Product Collaterals

Embedded Systems Product Catalog (PDF) 7.23MB 2024/04/02

EC600-RPS Datasheet (PDF) 871.97KB 2024/04/29

Ordering Information

Model Name Part Number Description
Model Name :
EC600-RPS:EC600- RPS606C6-H Part Number :
750-EC60000-000G Description :
Fanless, RPS263, H610E, 6 COM, 5 USB, 1 Type-C, 1 VGA, 1 HDMI/DP, 6 LAN, DC9~36V, TPM2.0, F/G SYSTEM RoHS
Model Name :
EC600-RPS:EC600- RPSA06C6-R Part Number :
750-EC60000-100G Description :
Fanless, RPS263, R680E, 10 COM, 5 USB, 1 Type-C, 1 VGA, 1 HDMI/DP, 6LAN, DC9~36V, TPM2.0, F/G SYSTEM RoHS
Model Name :
EC600-RPS:EC600- RPS606C6E-H Part Number :
750-EC60000-200G Description :
Fanless, RPS263, H610E, 6 COM, 5 USB, 1 Type-C, 1 VGA, 1 HDMI/DP, 2PoE, 4 LAN, DC9~36V, TPM2.0, F/G SYSTEM RoHS
Model Name :
EC600-RPS:EC600- RPSA06C6E-R Part Number :
750-EC60000-300G Description :
Fanless, RPS263, R680E, 10 COM, 5 USB, 1 Type-C, 1 VGA, 1 HDMI/DP, 2PoE, 4LAN, DC9~36V, TPM2.0, F/G SYSTEM RoHS
