ADN253｜Intel®｜Industrial Motherboards｜DFI

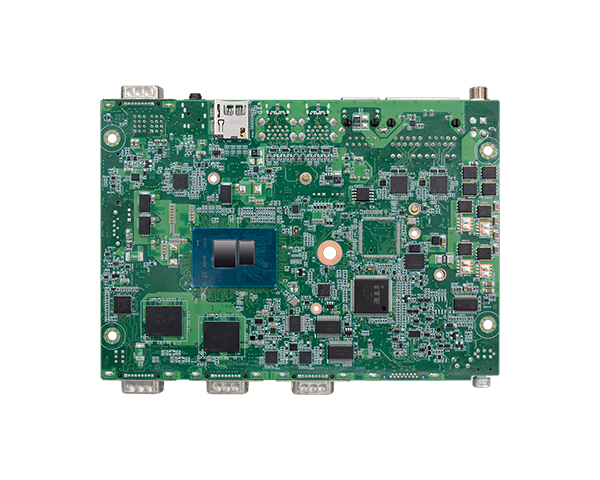

ADN253
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Motherboards 4" SBC ADN253
  • Intel® Processor N-series/Atom® Processor X Series
  • On Board OOB build-in
  • Rich I/O: 2 2.5GbE, 1 GbE, 4 USB 3.2, 3 COM, 1 COM/DIO, Internal: 2 USB 2.0, 2 COM
  • High speed LPDDR5 5200 memory down
  • Up to Quad Display Support via VGA/HDMI/USB-C
  • On Board eMMC /SATA III/ M.2 Storage solution
  • Intel TCC within the system

Status : Preliminary QUOTE NOW

Quad Independent Display
eMMC
Rich I/O
2.5G Ethernet
LPDDR5
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

ADN253 Related Tags

#9~36V DC-in#OOB#LPDDR5#M.2#Intel® Alder Lake-N Series#eMMC#IoT#Intel#Fanless Design#1G Ethernet#Windows#Linux#HDMI#VGA#Multiple Expansion#CE Certification#FCC Certification#2.5G Ethernet#OOB or RemoGuard
ADN253｜Intel®｜Industrial Motherboards｜DFI
ADN253｜Intel®｜Industrial Motherboards｜DFI
ADN253｜Intel®｜Industrial Motherboards｜DFI
ADN253｜Intel®｜Industrial Motherboards｜DFI
ADN253｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Intel Alder Lake-N Series
Intel PC Client Series
Intel® Processor N50 2 Cores, 1.0GHz to 3.4 GHz
Intel® Processor N97 4 Cores, 2.0GHz to 2.9 GHz
Intel® Processor N200 4 Cores, 1.0GHz to 3.2 GHz
Intel® Core™ i3-N305 8 Cores, 1.0GHz to 3.0 GHz
Intel® Embedded Series
Intel® Atom® X7211E 2 Cores, 1.0GHz to 2.9 GHz
Intel® Atom® X7213E 2 Cores, 1.7GHz to 2.9 GHz
Intel® Atom® X7425E 4 Cores, 1.5GHz to 2.7 GHz
Memory
8GB/16GB LPDDR5 5200 Memory down
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
Graphics
Controller
Intel® UHD Graphics
Feature
Execution Units: Up to 32 EUs
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows)
Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8
Compute: OpenCL 3.0
Display
1 x VGA
1 x HDMI 1.4
1 x USB-C Alt. Mode, one more USB-C(opt.)
Storage
Internal
1 x M.2 2280 B+M key (SATA/PCIe)
1 x M.2 2230 A+E key (PCIe)
1 x SATA III
eMMC
eMMC 32GB/64GB
Expansion
Interface
1 x M.2 2242/2280 (SATA)
1 x M.2 2230 (USB/*PCIe)
1 x mPCIe (USB 2.0/*PCIe)
*PCIe: support one of the M.2 2230/mPCIe by BOM Opt.
Audio
Audio Codec
ALC888S
Ethernet
Controller
2 x Intel Ethernet controller i226 2.5GbE (support TSN)
1 x Intel Ethernet controller i210 GbE (support DFI OOB function)

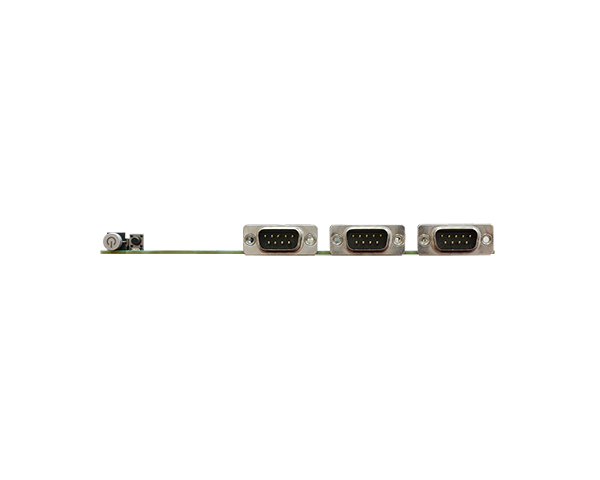

Front I/O
Serial
3 x RS232/422/485 DB9 connector
Display
1 x VGA

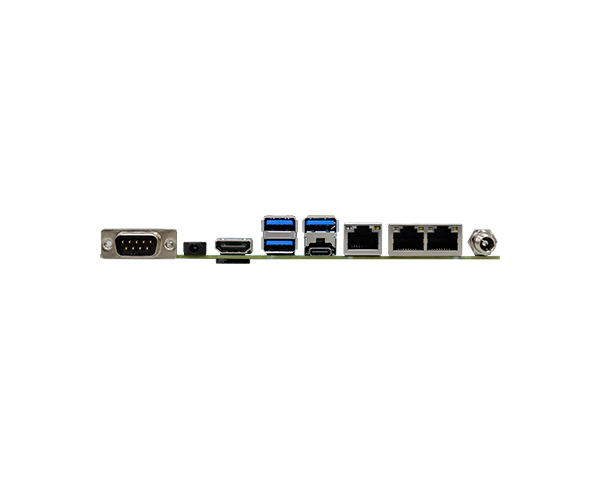

Rear I/O
Ethernet
2 x 2.5GbE RJ45
1 x GbE RJ45 (support DFI OOB)
Serial
1 x COM/DIO port
USB
2 x USB 3.2 type A + 2 x USB-C Ports or 4 x USB 3.2 type A
Display
1 x HDMI
Audio
1 x 3.5mm Line out/Mic In
Storage
1 x MicroSD (configuration options)
Internal I/O
Serial
2 x RS232
Display
1 x 40 pin LVDS/eDP (Default eDP)
SATA
1 x SATA 3.0
1 x 5V SATA Power (support SATA HDD LED via front panel)
SMBus
1 x SMBus
Front Panel
1 x front panel
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0 (Available Upon Request)
Power
Type
Wide Range 9~36VDC
Connector
DC Jack (or vertical type 4pin connector)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 11 IoT Enterprise
Linux
Linux
Environment
Temperature
Operating: 0 to 80°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
Mechanism
Dimensions
4" SBC Form Factor
165mm (6.5") x 115mm (4.53")
Standards and Certifications
Certifications
CE, FCC Class B (TBD in later stage)
Packing List
Packing List
• 1 ADN253 board
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
