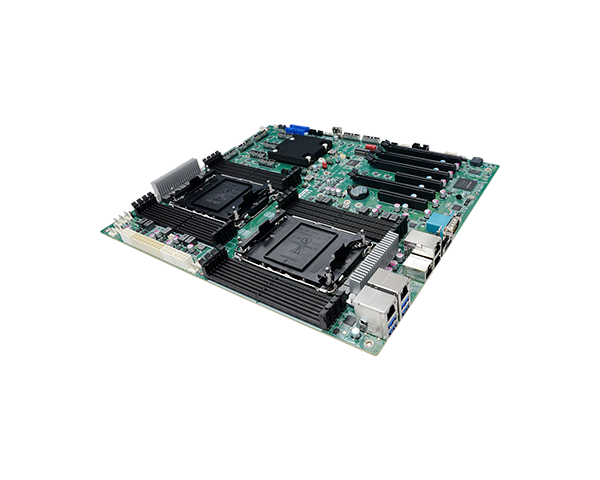

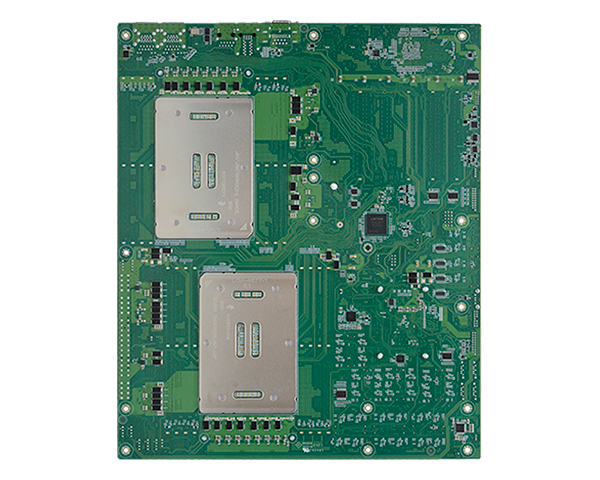

ERX810-C741|Intel®|Industrial Motherboards|DFI

ERX810-C741
Home Industrial Motherboards EATX ERX810-C741
  • 5th/4th Gen Intel® Xeon® Scalable Family
  • 16 DDR5 ECC-RDIMM up to 1024GB
  • IPMI OOB Remote Management
  • Single Display: DP
  • Multiple Expansion: 4 PCIe x16 (Gen 5), 2 PCIe x8 (Gen5), 1 M.2 M key 2280
  • Rich I/O: 4 Intel® GbE, 1 Dedicated IPMI, 2 COM, 4 SATA 3.0, 6 USB 3.2 Gen1, 2 USB 2.0, 1 Vertical USB 2.0

Status : Preliminary QUOTE NOW

DP
Multiple Expansion
DDR5
Rich I/O
Out-of-band (OOB)
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

ERX810-C741 Related Tags

#DDR5#SMBus#M.2#4th Gen Intel Xeon Scalable Family#5th Gen Intel Xeon Scalable Family#Out-Of-Band (OOB)#Server Boards#Intel#1G Ethernet#PCIe x16#DP#Multiple Expansion
ERX810-C741|Intel®|Industrial Motherboards|DFI
ERX810-C741|Intel®|Industrial Motherboards|DFI
ERX810-C741|Intel®|Industrial Motherboards|DFI
ERX810-C741|Intel®|Industrial Motherboards|DFI
System
Processor
5th/4th Gen Intel® Xeon® Scalable Family
Socket: Dual LGA4677
Max. Speed: up to 4.1GHz (Turbo)
TDP: up to 270W
Cache: up to 60MB
Chipset
Intel® C741 Chipset
Memory
16 x ECC-RDIMM up to 1024GB
DDR5 Max. 5600MHz
BIOS
Insyde
Graphics
Controller
BMC AST2600
Display
1 x DP
Single Display
DP
Expansion
Interface
4 x PCIe x16 (Gen 5)
2 x PCIe x8 (Gen5)
1 x M.2 M key 2280
Audio
Audio Codec
ALC888S
Ethernet
Controller
4 x Intel® I210
IPMI: RTL8211F
Rear I/O
Ethernet
4 x GbE
1 x Dedicated IPMI LAN
Serial
1 x RS-232/422/485 (DB-9)
USB
4 x USB 3.2 Gen1
PS/2
1 x PS/2
Display
1 x DP
Internal I/O
Serial
1 x RS-232/422/485
USB
2 x USB 3.2 Gen1
2 x USB 2.0
1 x Vertical USB 2.0
Audio
1 x Front Audio
SATA
4 x SATA 3.0
RAID 0/1/5/10
DIO
16-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
MCIO
2 x MCIO
Security
TPM
TPM 2.0
Power
Type
ATX
Environment
Temperature
Operating: 0 to 60°C
Mechanism
Dimensions
305 x 365 mm
Height
PCB: TBD
Top Side: TBD
Bottom Side: TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
