MPC350-RPS｜Intel®｜Industrial Computers｜DFI

MPC350-RPS
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Application-Specific System Medical System MPC350-RPS
  • Powerful and Scalable Medical-Grade Edge AI Inference Server
  • Supports 14th/13th/12th Gen Intel® Core™ with Intel® R680E chipset
  • Stylish enclosure design for easy cleaning
  • Supports Nvidia PCIexpress GPU Card, (Quadro up to RTX6000 ada) (GeForce up to RTX4070)
  • Supports capture card (2-ch Full HD H.264 PCIe Video Capture Card with SDK)
  • IEC60601-1/IEC60601-1-2 compliance

Status : Preliminary QUOTE NOW

Windows
Linux
Quad Independent Display
DDR5
Powerful Processor
Medical Grade
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
RPS310-R680E/Q670E

RPS310-R680E/Q670E

RPS310-R680E/Q670E｜Intel®｜Industrial Motherboards｜DFI

microATX board, 14th/13th/12th Gen Intel® Core™, 4 DDR5, 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0, 1 VGA, 2 DP++, 1 HDMI, 4 Intel 2.5GbE, 4 COM, 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 3 USB 2.0

MPC350-RPS Related Tags

#12th Gen Intel® Core™ Processor#DDR5#13th Gen Intel® Core™ Processor#Windows 10#Nuvoton#M.2#NVIDIA AI#14th Gen Intel® Core™ Processor#IoT#AI#Windows 11#Intel#Compact PC#Compact Size#Antibacterial Surface Design#PCIe x16#Windows#Linux#HDMI#VGA#DP#RoHS Certification#CE Certification#FCC Certification#High-Performance#Medical#2.5G Ethernet#UKCA Certification
MPC350-RPS｜Intel®｜Industrial Computers｜DFI
MPC350-RPS｜Intel®｜Industrial Computers｜DFI
MPC350-RPS｜Intel®｜Industrial Computers｜DFI
MPC350-RPS｜Intel®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
14th/13th/12th Gen Intel® Core™ with Intel® R680E chipset LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 Processor, 24 Cores, 36M Cache, up to 5.2 GHz, 65W
Intel® Core™ I7-14700 Processor, 16 Cores, 30M Cache, up to 5.1 GHz, 65W
Intel® Core™ I5-14500 Processor, 16 Cores, 30M Cache, up to 5.1 GHz, 65W
Memory
Four 288-pin UDIMM up to 192GB (ECC/Non-ECC)
Dual Channel DDR5 up to 4400 MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
2 x DP++
1 x HDMI 2.0a

VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
Quad Displays
VGA + 2 DP++ + HDMI
Storage
External/Internal
2 x swappable 2.5" SATA drive bays
1 x M.2 2242/2260/2280 (PCIe x4 Gen4 NVMe/SATA support)
1 x M.2 2242/2260/2280 (PCIe x4 Gen4 NVMe support)
Expansion
Interface
2 x PCIe x16 (Gen 4) (1 x16 signals or 2 x8 signals)
2 x PCIe x4 (Gen 4)
1 x M.2 2230 E key (opt. PCIe/USB 2.0/Intel CNVi support) (Discrete Wifi 6E support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe/SATA support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe support)
GPU Card
Interface
1 x PCIe x16 (Gen 4) (up to 300W) (Quadro RTX 6000 Ada or GeForce RTX 4070)
2 x PCIe x16 (Gen 4) (2 x8 signals) (up to 300W) (Quadro RTX A4000 x 2)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
3 x Intel® I226-V
LED
Indicators
1 x Power LED

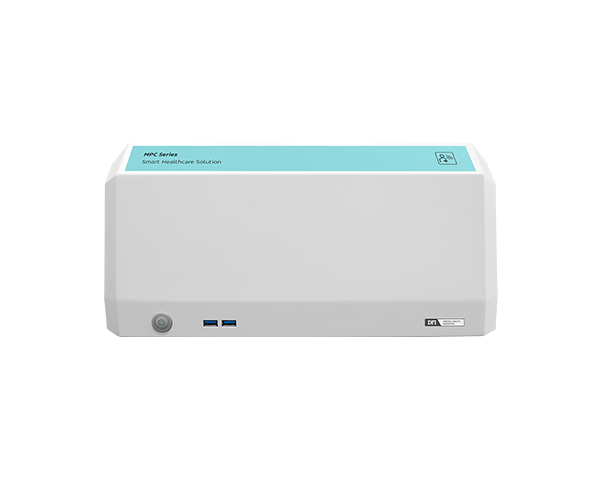

Front I/O
USB
2 x USB 3.2 Gen1
Buttons
1 x Power Button

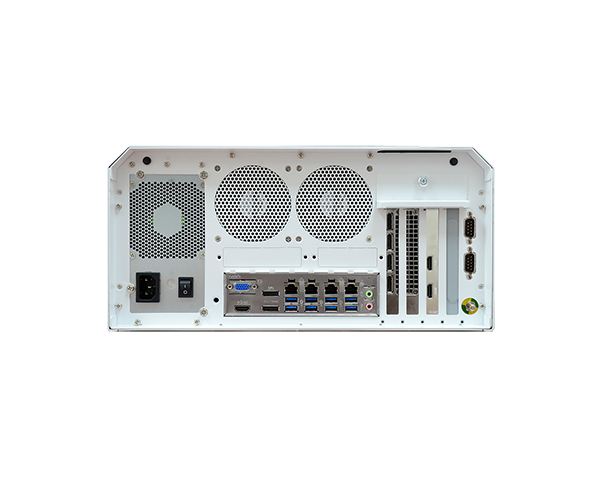

Rear I/O
Ethernet
4 x 2.5GbE (RJ-45)
Serial
2 x RS-232 (DB-9)
USB
4 x USB 3.2 Gen 2 (Type A)
4 x USB 3.2 Gen 1 (Type A)
Display
1 x HDMI 2.0a
2 x DP++
1 x VGA
Audio
1 x Line-out
1 x Mic-in
Wi-Fi Antenna
2 x Wi-Fi Antenna Hole
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Input
Internal PSU 90-264 VAC 5-10A 47-63 Hz, maximum output power 700W
OS Support
Microsoft
Windows 10 IoT Enterprise
Windows 11
Linux
Linux Ubuntu
Environment
Operating Temperature
0 to 40°C
Storage Temperature
-20 to 60°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Construction
Metal
Mounting
Wall mount
Dimensions (W x H x D)
380 x 180 x 400 mm
Weight
9.6 Kg
Color
White
Standards and Certifications
Shock
Operating: IEC60068-2-27 Random 3Grms,11ms
Vibration
Operating: IEC60068-2-24 Random 1Grms, 5~500Hz
Certifications
CE, FCC, IEC 60601-1, IEC-60601-1-2 (ongoing), RoHS, UKCA
Packing List
Packing List
· 1 MPC350-RPS system unit
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    MPC350-RPS     Part Number :
     750-MPC3500-000G     Description :
    1 LAN, 2 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 700W ATX PSU
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Graphic Card     Part Number :
     -
    -
    612-RTXA50-000G
    612-RTXA40-000G     Description :
    Graphic Card Quadro RTX 6000 Ada,48GB DDR6,DP*4 (300W)
    Graphic Card GeForce RTX 4070 Blower,12GB DDR6, DP*3+HDMI (200W)
    Graphic Card Quadro RTX A5000,24GB DDR6,DP*4 (230W) (Need adopt Power Y cable)
    Graphic Card Quadro RTX A4000,16GB DDR6,DP*4 (230W) (Need adopt Power Y cable)
  • Item Name :
    Capture Card     Part Number :
     -     Description :
    Capture Card with SDK, 2-ch Full HD HDMI 2.0, PCIex4
  • Item Name :
    Power cable     Part Number :
     671-106012-000G     Description :
    Power Y cable, 4201HF 2*4P/4.2mm to C4255HMG 2*4P/4.2mm x2, L=100mm
