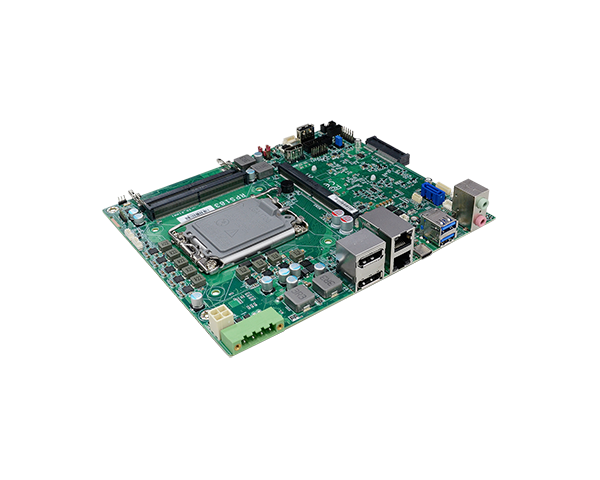

RPS183
Home Industrial Motherboards Mini-ITX RPS183
  • 14th/13th/12th Gen Intel® Core Processors
  • 2 DDR5 SODIMM up to 64GB
  • Multiple Display: 1 DP++(CPU), 1 DP++(MXM), 1 USB Type C(DP Alt-mode), 1 eDP(MXM), 1 internal HDMI(MXM)
  • Support MXM module, with 1 internal HDMI, 1 eDP and 1 external DP++
  • Multiple Expansion: 1 PCIe x4(side), 1 M.2 M key, 1 M.2 E Key, 1 M.2 B Key
  • Rich I/O: 2 Intel® 2.5GbE, up to 4 USB 3.2 Type A, up to 1 USB Type C
  • Wide Range power input 19~24V
  • Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.

Status : Preliminary QUOTE NOW

Wide Voltage: 19V~24V DC-in
Multiple Expansion
DDR5
Rich I/O
10 Years CPU Life Cycle Support
Multiple Displays
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RPS183 Related Tags

#12th Gen Intel® Core™ Processor#DDR5#13th Gen Intel® Core™ Processor#Windows 10#USB Type-C DP#I2C#M.2#MXM#14th Gen Intel® Core™ Processor#Windows 11#Intel#1G Ethernet#Linux#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
RPS183|Intel®|Industrial Motherboards|DFI
RPS183|Intel®|Industrial Motherboards|DFI
RPS183|Intel®|Industrial Motherboards|DFI
RPS183|Intel®|Industrial Motherboards|DFI
RPS183-A2000|Intel®|Industrial Motherboards|DFI

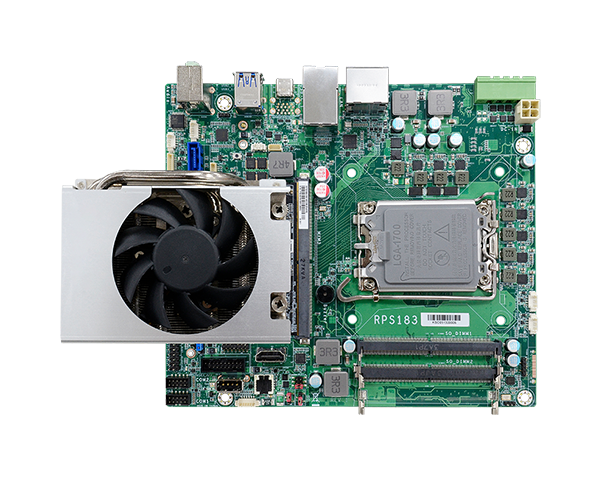

RPS183-A4500|Intel®|Industrial Motherboards|DFI
System
Processor
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W
Intel® 300T (2 Cores, 4M Cache, 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset
Intel® Q670E/H610E Chipset
Memory
2x 262-pin SODIMM up to 64GB
Dual Channel DDR5 4800MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x DP++ (CPU): Resolution up to 4096x2304 @ 60Hz
1 x DP++ (MXM): Resolution by MXM
1 x USB Type C: DP Alt-mode, Resolution up to 4096x2304 @60Hz
1 x eDP(MXM): Resolution by MXM
1 x Internal HDMI: Resolution by MXM
Multiple Displays
1 DP++(CPU) + 1 DP++(MXM) + 1 USB Type C(DP Alt-mode) + 1 eDP(MXM) + 1 internal HDMI(MXM)
Expansion
Interface
1x PCIe Gen 3 x4 (Locate at board side)
1x M.2 2280 M Key (PCIE Gen3x4, SATA3)
1x M.2 2230 E Key (PCIE Gen3x, USB 2.0, support Intel® CNVi)
1x MXM Type-A/B/B+/C
[Q670E]1x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB 3.2 Gen2, USB 2.0)
[H610E]1x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB 3.2 Gen1, USB 2.0)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
[Q670E]1 x Intel® I226LM(vPro) (10/100/1000/2500Mbps)
[Q670E]1 x Intel® I226V (10/100/1000/2500Mbps)
[H610E]1 x Intel® I219V (10/100/1000/2500Mbps)
[H610E]1 x Intel® I226V (10/100/1000/2500Mbps)
Rear I/O
Ethernet
2 x 2.5GHz RJ45
USB
[Q670E]4 x USB 3.2 Gen2 or 3 x USB 3.2 Gen2+ 1 x USB Type C
[H610E]2 x USB 3.2 Gen2 + 2 x USB 2.0 or 2 x USB3.2 Gen2 + 1 x USB Type C
Display
1 x DP++, 1 DP++(MXM)
1 x USB Type C
Audio
1 Audio Jack (Line-out/Mic-in)
Internal I/O
Serial
2 x RS-232/422/485
USB
1 x USB 2.0 Type A
Display
1 x eDP(MXM)
1 x HDMI(MXM)
SATA
1 x SATA 3.0
DIO
1 x 8-bit DIO (BOX HEADER 1*10P/1.00mm)
I2C
2 x I2C (BOX HEADER, 1*8P/1.0m)
FAN
1 x CPU, 2 x System (WAFER,1*4P/1.25mm)
SPI
1 x SPI (BOX HEADER 1*6P/1.25mm)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM (default)
fTPM (option)
Power
Type
DC IN
Connector
4-pin Teminal 19~24V DC-In
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows IoT Enterprise 10 LTSB, Windows 11 IoT Enterprise(64-bit)_23H2
Linux
Linux Ubuntu 22.04
Environment
Temperature
Operating w/o MXM: -5°C ~ 65°C
Operating w/i MXM: By MXM spec
Storage: -40°C ~ 85°C
Humidity
Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH
MTBF
TBD
Mechanism
Dimensions
195mm (7.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: TBD
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 RPS183 motherboard
1 Serial ATA data cable (Length: 500mm)
1 I/O shield (P/N: TBD)
3 M.2 screw/standoff
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPS183-H610EDB
    Part Number :
    770-RPS1831-000G
    Description :
    RPS183-H610EDB, 2 DDR5, Rear I/O (2 DP*++, 2 LAN, 2 USB 3.2 Gen2, 1 USB Type C), Internal I/O (1 M.2 M/B/E Key, 1 eDP*, 1 HDMI*, 2 USB 3.2 Gen1, 1 USB 2.0 Type A), w/TPM, DC19~24V, -5 to 65°C
  • Model Name :
    RPS183-Q670EDB
    Part Number :
    770-RPS1831-100G
    Description :
    RPS183-Q670EDB, 2 DDR5, Rear I/O (2 DP*++, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (1 M.2 M/B/E Key, 1 eDP*, 1 HDMI*, 2 USB 3.2 Gen1, 1 USB 2.0 Type A), w/TPM, DC19~24V, -5 to 65°C
  • Model Name :
    RPS183-H610EDB
    Part Number :
    770-RPS1831-200G
    Description :
    RPS183-H610EDB, 2 DDR5, Rear I/O (2 DP*++, 2 LAN, 2 USB 3.2 Gen2, 2 USB 2.0 Type A), Internal I/O (1 M.2 M/B/E Key, 1 eDP*, 1 HDMI*, 2 USB 3.2 Gen1, 1 USB 2.0 Type A), w/TPM, DC19~24V, -5 to 65°C
  • Model Name :
    RPS183-Q670EDB
    Part Number :
    770-RPS1831-300G
    Description :
    RPS183-Q670EDB, 2 DDR5, Rear I/O (2 DP*++, 2 LAN, 4 USB 3.2 Gen2), Internal I/O (1 M.2 M/B/E Key, 1 eDP*, 1 HDMI*, 2 USB 3.2 Gen1, 1 USB 2.0 Type A), w/TPM, DC19~24V, -5 to 65°C

* (NOTE: * Full functionality requires MXM implementation)

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Active Thermal Solution(65W)
    Part Number :
    A71-101137-000G
    Description :
    Thermal solution (For 65W, Height: 46mm)
  • Item Name :
    Active Thermal Solution(35W)
    Part Number :
    A71-101136-000G
    Description :
    Thermal solution (For 35W, Height: 39mm)
  • Item Name :
    PSU(450W, 24V)
    Part Number :
    TBD
    Description :
    Meanwell HRP-450-24
  • Item Name :
    Power adapter (360W, 24V)
    Part Number :
    TBD
    Description :
    Meanwell GST360B24-C6P
  • Item Name :
    Power adapter (160W, 24V)
    Part Number :
    671-116005-000G
    Description :
    Meanwell GST160A24-DFIA
  • Item Name :
    Power terminal converting cable (Spade-to-Phoenix 4P)
    Part Number :
    TBD
    Description :
    20cm, for Meanwell HRP-450-24
  • Item Name :
    Power terminal converting cable (ATX 6P-to-Phoenix 4P)
    Part Number :
    TBD
    Description :
    20cm, for Meanwell GST360B24-C6P
  • Item Name :
    Power terminal converting cable (DC5.5-to-ATX 2x2P)
    Part Number :
    A81-004110-009G
    Description :
    20cm, for Meanwell GST160A24-DFIA

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
