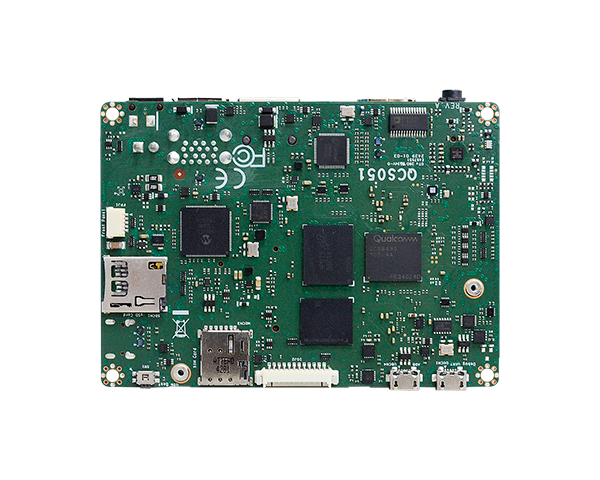

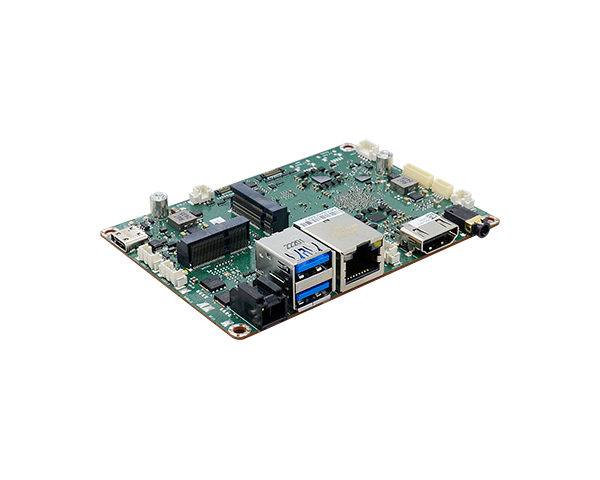

QCS051|Qualcomm®|Industrial Motherboards|DFI

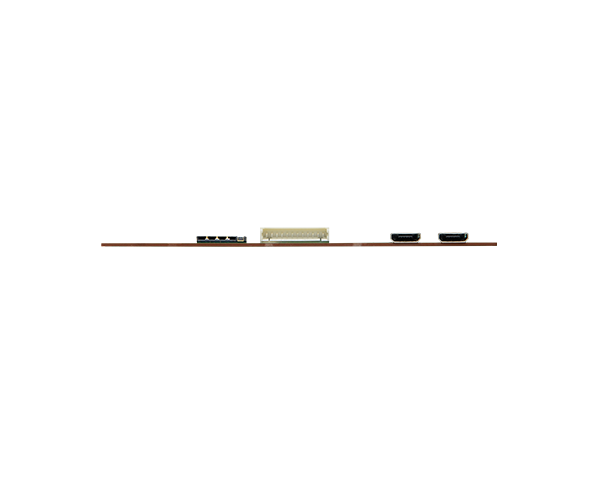

QCS051
Home Industrial Motherboards 2.5" Pico-ITX QCS051
  • Qualcomm QCS6490 high-level platform
  • Target on AMR, box PC application
  • Thin client concept and ruggedize
  • 2 M.2 Expansions: 1 M.2 E key 2230, 1 M.2 B key 3052
  • Supports CPU Life Cycle Until 2036

Status : Preliminary QUOTE NOW

Fanless Design
HDMI
M.2 Expansions
Ruggedized
LPDDR5x
AMR
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

QCS051 Related Tags

#M.2#LPDDR5x#Qualcomm® QCS6490#AI#Qualcomm®#SIM Slot#CAN-Bus#Fanless Design#Compact Size#Linux#HDMI#RoHS Certification#CE Certification#FCC Certification#AMR#UKCA Certification
QCS051|Qualcomm®|Industrial Motherboards|DFI
QCS051|Qualcomm®|Industrial Motherboards|DFI
QCS051|Qualcomm®|Industrial Motherboards|DFI
QCS051|Qualcomm®|Industrial Motherboards|DFI
QCS051|Qualcomm®|Industrial Motherboards|DFI
System
Processor
QCS6490
Qualcomm® Kryo™ 670, 8 cores, up to 2.7 GHz
Memory
LPDDR5x, 4/8GB
Graphics
Controller
Qualcomm® Adreno™ 643L GPU
Feature
OpenGL ES 3.2
Display
1 x HDMI Type A, w/audio. 1080P support on Linux.
Single Display
HDMI
Storage
UFS
Support UFS 3.1, default 128GB
Expansion
Interface
1 x M.2 B key 3052 (USB 3.1/ Opt. USB 2.0) reference RM502Q-AE Quectel
*Optional USB 2.0 signal with UBJ4

1 x Nano SIM slot
1 x M.2 E key 2230 (PCIe x1) reference ENL-Q6391M2 Wifi module
Audio
Audio Codec
Audio codec WCD9385
Ethernet
Controller
AX88179A USB3 to GbE controller

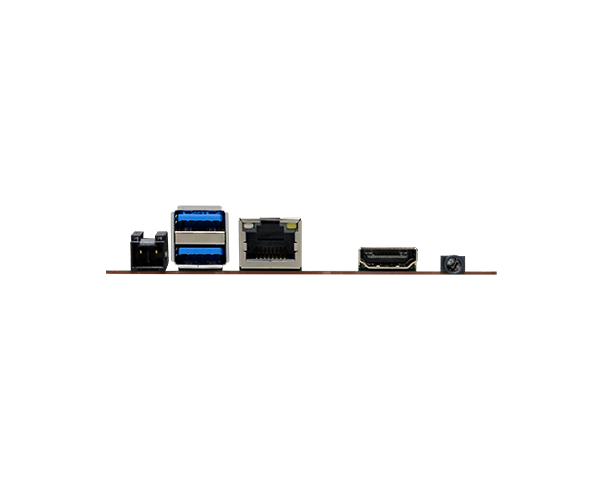

Rear I/O
Ethernet
1 x GbE (RJ-45)
USB
2 x USB 3.1 Gen1 Type A
Display
1 x HDMI 1.4
Audio
1 x Line out/Mic in audio jack
Debug
1 x Micro USB debug UART
Internal I/O
Serial
1 x RS-232 (COM1, 1x5P/1.00mm)
USB
4 x USB 2.0 (UBJ1/2/4/5, 1x4P/1.25mm), UBJ4 could option to M.2 B key
1 x USB Type C (Download only)
DIO
1 x 8-bit DIO
SD
1 x uSD3.0 card
CANBus
1 x CAN FD
Other I/O
1 x Ext. IO (1*12P/1.25mm), 1 x Power LED, 1 x System LED, 1 x Front Panel, 1 x Fan connector
Camera
2 x MIPI-CSI2 for 4-lanes camera, reference to IMX577
Power
Type
5VDC
Connector
2 pin Power Jack
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Linux
Ubuntu 20.04 (Linux Kernel 5.4.233)
Environment
Temperature
Operating: 0°C~60°C
Storage: -40°C~85°C
Humidity
Operating: 5%~90% RH
Storage: 5%~90% RH
Mechanism
Dimensions
2.5" Pico-ITX Form Factor
100mm (3.94") x 72mm (2.83")
Height
PCB: 1 mm
Top Side: TBD
Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
• 1 QCS051 board
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)

Powered by Qualcomm® QCS6490 System-on-Chip

QCS051 is a reliable and efficient 2.5" SBC suitable for industrial and AI applications. Powered by the Qualcomm® QCS6490 SoC, this Single-board Computer includes 8 cores that can achieve speeds up to 2.7 GHz. Such performance guarantees continuous interaction with the device even in the most challenging industrial surroundings. QCS051 is one of the most powerful SBCs thanks to its inclusion of the QCS6490’s AI Engine, edging it at a remarkable 12 TOPS. This makes it the ideal option for applications that require minimal to advanced learning capability with AI functionality, making it highly effective in numerous situations. Furthermore, the integrated Qualcomm® Adreno™ 643L GPU hones and refines the graphic query to support visual-dependent applications.

LPDDR5x Ready

QCS051 combines powerful LPDDR5x memory modules that support up to 8GB capacity. This enables it to run at 7,500MT/s, with a greatly enhanced TX/RX signal performance, resulting in an overall 36% bandwidth increase. Such features are far beyond those of competitors that still rely on the DDR4 platform. DFI is clearly ahead thanks to the revolutionary memory technology integrated in our QCS051 solution.

Strong Connection, QCS051 Backs You Up

QCS051 2.5"SBC supplies adaptable connectivity in limited space. Its two M.2 expansion slots support E-key and B-key modules for wireless communication. Additionally, it supports 2 x MIPI-CSI for high-resolution cameras, 1 x RS-232, 4 x USB 2.0 (UBJ1/2/4/5, 1x4P/1.25mm), with UBJ4 optionally convertible to M.2 B key. Other interfaces include 1 x USB Type C, 1 x 8-bit DIO, 1 x uSD3.0 card slot, 1 x CAN FD, 1 x Ext. IO (1*12P/1.25mm), 1 x Power LED, 1 x System LED, 1 x Front Panel connector, 1 x Fan connector, 2 x USB 3.1 Gen1 Type A, 1 x Line out/Mic in audio jack, 1 x HDMI 1.4, 1 x Micro USB debug UART, and 1 x GbE (RJ-45).

Dynamic Connection Capabilities & Ruggedized Applications

Thanks to Qualcomm QCS6490 SoC, this 2.5"SBC excels in confined spaces and demanding environments. Equipped with flexible expandability and I/O versatility, including 5G connectivity via a M.2 B key 3052 with Nano SIM Slot, M.2 E key 2230 offers Wi-Fi6E module compatibility. There is also a GbE high-speed wired network option for ruggedized environments requiring AI performance under a wide temperature range of -25°C to 75°C. It even supports OS like Ubuntu, Android, and Windows.

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
