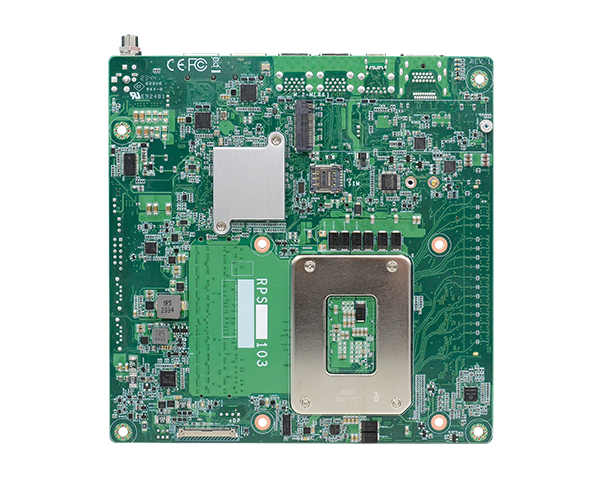

RPS101/RPS103
Home Industrial Motherboards Mini-ITX RPS101/RPS103
  • 14th/13th/12th Generation Intel® Core™ Processors
  • 2 DDR5 5600MHz SODIMM up to 64GB
  • Supports 4 independent displays: 1 DP++, 1 HDMI, 1 USB Type C, 1 LVDS/eDP, 1 DFI display extension port (DP/HDMI/VGA available)
  • Supports up to 4K resolution
  • Multiple expansion: 1 PCIe x16, 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key
  • Rich I/O: 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen2, 4 USB 2.0, 2 SATA 3.0
  • Typically supports 10-Year CPU Life Cycle Until Q1’38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process

Status : Sample Available QUOTE NOW

4K2K Display
PCIe x16
Quad Independent Display
DDR5
Rich I/O
10 Years CPU Life Cycle Support
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RPS101/RPS103 Related Tags

#12th Gen Intel® Core™ Processor#DDR5#13th Gen Intel® Core™ Processor#Windows 10#Edge AI Computing#M.2#12-28V DC-in#14th Gen Intel® Core™ Processor#Windows 11#Intel#SIM Slot#4K2K Display#PCIe x16#Windows#Linux#12V DC-in#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
RPS101/RPS103|Intel®|Industrial Motherboards|DFI
RPS101/RPS103|Intel®|Industrial Motherboards|DFI
RPS101/RPS103|Intel®|Industrial Motherboards|DFI
RPS101/RPS103|Intel®|Industrial Motherboards|DFI
RPS101/RPS103|Intel®|Industrial Motherboards|DFI
System
Processor
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W
Intel® 300T (2 Cores, 4M Cache, 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I9-13900 (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700 (16 Cores, 30M Cache, up to 5.2 GHz); 65W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500 (14 Cores, 24M Cache, up to 4.8 GHz); 65W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13400 (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100 (4 Cores, 12M Cache, up to 4.5 GHz); 65W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i9-12900(16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.7 GHz); 35W
Intel® Core™ i7-12700 (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i5-12500 (6 Cores, 18M Cache, up to 4.6 GHz); 65W
Intel® Core™ i5-12400 (6 Cores, 18M Cache, up to 4.4 GHz); 65W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i3-12100 (4 Cores, 12M Cache, up to 4.3 GHz); 60W
Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset
[R680E]Intel® R680E Chipset
[Q670E]Intel® Q670E Chipset
[H610E]Intel® H610E Chipset
Memory
[R680E]Two 262-pin SODIMM up to 64GB (ECC/Non-ECC)
[R680E]Dual Channel DDR5 5600 MHz

[Q670E]Two 262-pin SODIMM up to 64GB (Non-ECC)
[Q670E]Dual Channel DDR5 5600 MHz

[H610E]Two 262-pin SODIMM up to 64GB (Non-ECC)
[H610E]Dual Channel DDR5 5600 MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
3D graphics HW acceleration:DX12, Open GL 4.6, Vulkan 1.2

HW Video Decode:
8K60 12b 4:2:0 HEVC/VP9/SCC
8K30 10b 4:2:0 AV1
5K60 10b 4:4:4 HEVC/VP9/SCC
4K60 8b 4:2:0 AVC

HW Video Encode:
8K30 or 5K60 8b/10b 4:2:0 HEVC/VP9/SCC
4K60 10b 4:4:4 HEVC/VP9/SCC
4K60 8b 4:2:0 AVC
Display
1 x HDMI 2.0
1 x DP++ 1.2
1 x USB Type-C(H610E not support)
1 x eDP/LVDS
1 x DFI display extension port (DP/HDMI/VGA available)

HDMI: resolution up to 4096x2160 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
USB Type C: resolution up to 4096x2304 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
LVDS: resolution up to 1920x1200 @ 60Hz
Quad Displays
DP++ + HDMI + LVDS/eDP +USB Type C +DFI display extension port (DP/HDMI/VGA available)
Expansion
Interface
1 x PCIe x16 (Gen 5) (Max. 75W)
1 x M.2 2230 E Key (USB 2.0x1/CNVix1/PCIe3.0 x1)
[R680E] 1 x M.2 2242/3042/3052 B Key (PCIe 3.0 x1/SATA 3.0x1/USB 3.2 Gen2x1/USB 2.0x1)
[R680E] 1 x M.2 2280 M Key (PCIe 4.0x4 or SATA 3.0x1)

[Q670E] 1 x M.2 2242/3042/3052 B Key (PCIe 3.0 x1/SATA 3.0x1/USB 3.2 Gen2x1/USB 2.0x1)
[Q670E] 1 x M.2 2280 M Key (PCIe 4.0x4 or SATA 3.0x1)

[H610E] 1 x M.2 2242/3042/3052 B Key (PCIe 3.0x1/SATA3.0x1/USB 3.2 Gen1x1/USB 2.0x1)
[H610E] 1 x M.2 2280 M Key (PCIe 3.0x1/SATA3.0x1)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
1 x Intel® I226-V
2 x Intel® I226-V (only H610E support)

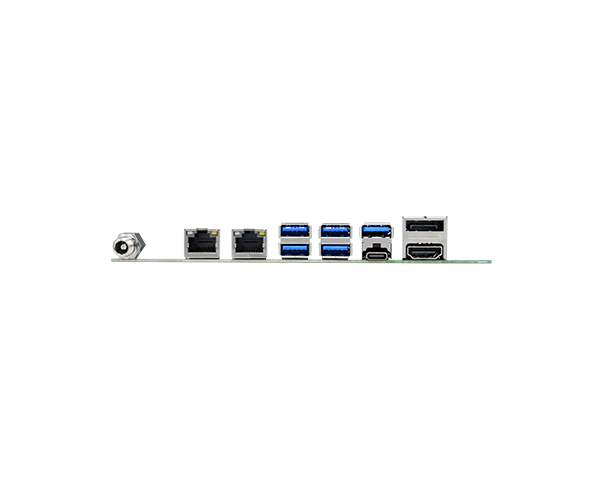

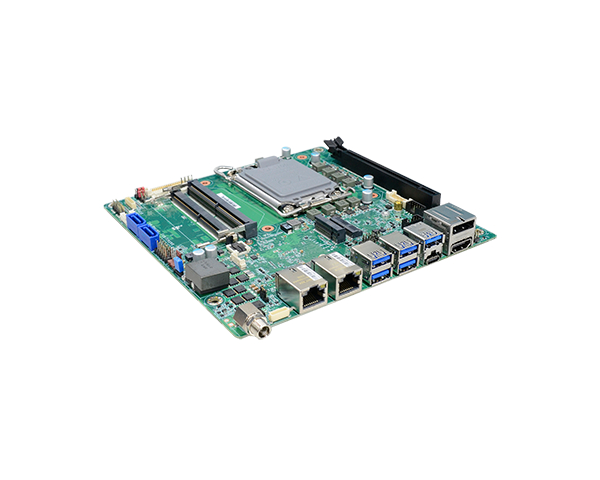

Rear I/O
Ethernet
2 x 2.5GbE (RJ-45)
USB
[R680E] 5 x USB 3.2 Gen 2 Type A
[R680E] 1 x USB 3.2 Gen 2 USB Type C

[Q670E] 5 x USB 3.2 Gen 2 Type A
[Q670E] 1 x USB 3.2 Gen 2 USB Type C

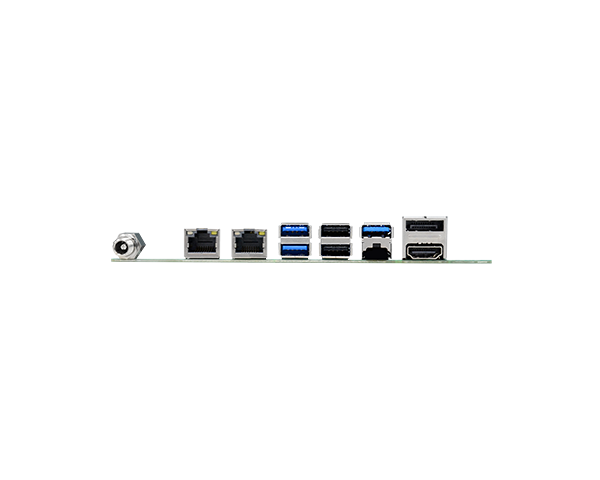

[H610E] 2 x USB 3.2 Gen 2
[H610E] 1 x USB 3.2 Gen 1
[H610E] 2 x USB 2.0
Display
1 x HDMI 2.0
1 x DP++ 1.2
1 x USB Type-C(H610E not support)
Internal I/O
Serial
2 x RS-232/422/485 (w/o Power) Box header (2.0mm pitch)
USB
[R680E] 4 x USB 2.0 (2 2x5 2.0mm pitch header)

[Q670E] 4 x USB 2.0 (2 2x5 2.0mm pitch header)

[H610E] 2 x USB 2.0 (1 2x5 2.0mm pitch header)
Display
1 x eDP/LVDS
1 x DFI display extension port (DP/HDMI/VGA available)
Audio
1 x Front Audio Header (1 x Line-out, 1 x Mic-in)
SATA
2 x SATA 3.0 (up to 6Gb/s)
2 x SATA Power
RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn.)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Nuvoton TPM 2.0
Power
Type
Single 12V +/-10% DC (RPS101)
Wide Range 12~28V (RPS103)
Connector
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)
Consumption
Idle: i9-13900E 65W: 12V @ 8.5A (102W)
Max: i9-13900E 65W: 12V @14.1A (169.2W
Idle: i9-14900E 65W: 12V @ 4.2A (50.4W)
Max: i9-14900E 65W: 12V @ 13.8A (165.6W)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11 Enterprise
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
Top Side:19mm
Bottom Side: 4.5mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
• 1 RPS101/RPS103 motherboard
• 1 Serial ATA data & power cable (Length: 300mm), A81-002144-018G
• 1 COM port cable (Length: 250mm, 1 x COM port), A81-015011-001G
• 1 I/O shield w/ icon (2LAN/5USB), A49-RPS101-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPS101-R680E
    Part Number :
    770-RPS1011-000G
    Description :
    RPS101-R680E, 2 DDR5, Rear I/O (1DP++, 1 HDMI, 2 LAN, 5 USB 3.2, 1 USB Type C), Internal I/O (M.2 M/B/E Key, 2 RS232/422/485, 2 SATA, 4 USB 2.0), dTPM, 12V DC-Jack, -5°C ~ 65°C
  • Model Name :
    RPS101-Q670E
    Part Number :
    770-RPS1011-100G
    Description :
    RPS101-Q670E, 2 DDR5, Rear I/O (1DP++, 1 HDMI, 2 LAN, 5 USB 3.2, 1 USB Type C), Internal I/O (M.2 M/B/E Key, 2 RS232/422/485, 2 SATA, 4 USB 2.0), dTPM, 12V DC-Jack, -5°C ~ 65°C
  • Model Name :
    RPS101-H610E
    Part Number :
    770-RPS1011-200G
    Description :
    RPS101-H610E, 2 DDR5, Rear I/O (1DP++, 1 HDMI, 2 LAN, 3 USB 3.2, 2 USB 2.0), Internal I/O (M.2 M/B/E Key, 2 RS232/422/485, 2 SATA, 4 USB 2.0), dTPM, 12V DC-Jack, -5°C ~ 65°C
  • Model Name :
    RPS103-R680E
    Part Number :
    770-RPS1031-000G
    Description :
    RPS103-R680E, 2 DDR5, Rear I/O (1DP++, 1 HDMI, 2 LAN, 5 USB 3.2, 1 USB Type C), Internal I/O (M.2 M/B/E Key, 2 RS232/422/485, 2 SATA, 4 USB 2.0), dTPM, 12~28V DC-Jack, -5°C ~ 65°C
  • Model Name :
    RPS103-Q670E
    Part Number :
    770-RPS1031-100G
    Description :
    RPS103-Q670E, 2 DDR5, Rear I/O (1DP++, 1 HDMI, 2 LAN, 5 USB 3.2, 1 USB Type C), Internal I/O (M.2 M/B/E Key, 2 RS232/422/485, 2 SATA, 4 USB 2.0), dTPM, 12~28V DC-Jack, -5°C ~ 65°C
  • Model Name :
    RPS103-H610E
    Part Number :
    770-RPS1031-200G
    Description :
    RPS103-H610E, 2 DDR5, Rear I/O (1DP++, 1 HDMI, 2 LAN, 3 USB 3.2, 2 USB 2.0), Internal I/O (M.2 M/B/E Key, 2 RS232/422/485, 2 SATA, 4 USB 2.0), dTPM, 12~28V DC-Jack, -5°C ~ 65°C
