EC700-ADN|Intel®|Industrial Computers|DFI

EC700-ADN
Home Industrial Computers Ultra Compact Fanless PC EC700-ADN
  • Intel® Processor N-series/Atom® Processor X Series
  • On Board OOB built-in
  • Slim and fanless design for limited-space condition
  • Intel TCC within the system
  • On Board DDR5 & eMMC Support
  • Up to Quad Display Support via VGA/HDMI/USB-C

Status : Preliminary QUOTE NOW

Fanless Design
Compact Size
Quad Independent Display
DDR5
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
EC700-ADN Embedded Solution Powered by: DFI Proprietary Motherboard

EC700-ADN Related Tags

#DDR5#OOB#Intel® Alder Lake-N Series#eMMC#IoT#Intel#Fanless Design#Compact Size#1G Ethernet#Windows#Linux#HDMI#VGA#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet#OOB or RemoGuard#UKCA Certification
EC700-ADN|Intel®|Industrial Computers|DFI
EC700-ADN|Intel®|Industrial Computers|DFI
EC700-ADN|Intel®|Industrial Computers|DFI
EC700-ADN|Intel®|Industrial Computers|DFI
EC700-ADN|Intel®|Industrial Computers|DFI
EC700-ADN|Intel®|Industrial Computers|DFI
System
Processor
Intel Alder Lake-N Series
Intel PC Client Series
Intel® Processor N50 2 Cores, 1.0GHz to 3.4 GHz
Intel® Processor N97 4 Cores, 2.0GHz to 2.9 GHz
Intel® Processor N200 4 Cores, 1.0GHz to 3.2 GHz
Intel® Core™ i3-N305 8 Cores, 1.0GHz to 3.0 GHz
Intel® Embedded Series
Intel® Atom® X7211E 2 Cores, 1.0GHz to 2.9 GHz
Intel® Atom® X7213E 2 Cores, 1.7GHz to 2.9 GHz
Intel® Atom® X7425E 4 Cores, 1.5GHz to 2.7 GHz
Memory
8GB/16GB LPDDR5 4800 Memory down
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
Graphics
Controller
Intel® UHD Graphics
Feature
Execution Units: Up to 32 EUs
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) / Mesa 3D,OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8
Compute: OpenCL 3.0
Display
1 x VGA
1 x HDMI 1.4
1 x USB-C (DP1.2 Alt. Mode)
Storage
Internal
1 x M.2 2280 M key (PCIex2/SATA)
eMMC
eMMC module 32GB/64GB (Opt.)
Expansion
Interface
1 x M.2 2230 E key (USB 2.0/PCIe, support CNVi)
1 x M.2 3042/3052 B key (USB 3.0/USB 2.0/PCIe) with SIM
1 x M.2 2242/2280 M key (PCIex2/SATA)
Audio
Audio Codec
REALTEK ALC888S
Ethernet
Controller
2 x Intel Ethernet controller i226 2.5GbE (support TSN by Intel Embedded sku.)
1 x Intel Ethernet controller i210 GbE (support DFI OOB function)
LED
Indicators
1 x Power LED
1 x Storage LED

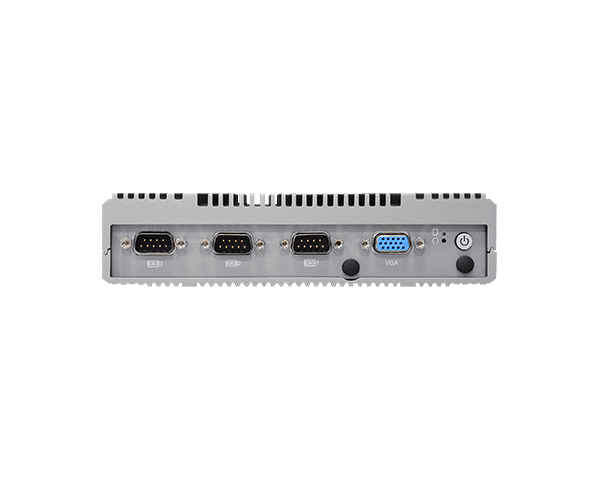

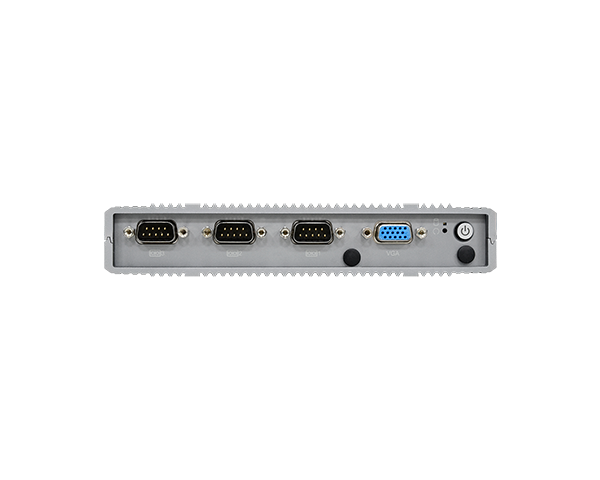

Front I/O
Serial
3 x RS232/422/485 DB9 connector
Display
1 x VGA
Buttons
1 x Power Button
1 x Reset Button
Antenna
2 x antenna holes

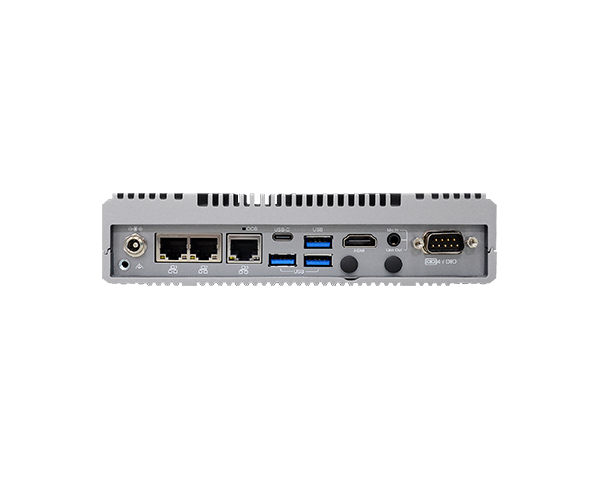

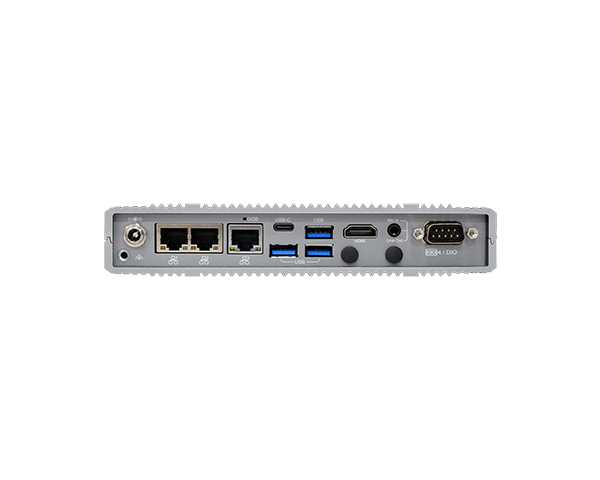

Rear I/O
Ethernet
2 x 2.5GbE RJ45
1 x GbE RJ45 (support DFI OOB)
Serial
1 x RS232/422/485/DIO DB9 connector
USB
3 x USB 3.2 type A + 1 x USB-C 3.2
Display
1 x HDMI
Audio
1 x 3.5mm Line out/Mic In
Antenna
2 x antenna holes
Storage
1 x MicroSD (Opt.)
Watchdog Timer
Output & Interval
System reset, programmable via software from 1 to 255 seconds
Security
TPM
TPM 2.0 (Opt.)
Power
Type
Wide range 9~36VDC
Connector
2.5mm DC Jack
RTC Battery
RTC battery CR2032
OS Support
Microsoft
Windows® 11 IoT Enterprise
Linux
Ubuntu 22.04
Environment
Operating Temperature
0 to 60°C
Storage Temperature
-40 to 85°C
Relative Humidity
10 to 90% RH (non-condensing)
Mechanism
Construction
Aluminum + Metal
Mounting
Wall mount, DIN-Rail, VESA Mount
Dimensions (W x H x D)
180 x 33/43 x 127.8 mm
Weight
TBD
Standards and Certifications
Shock
(During Operation)
30G, IEC-60068-2-27
MIL-STD-810G
Vibration
(During Operation)
3 Grms, IEC 60068-2-64
MIL-STD-810G
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
1 System unit
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC700-ADN
    Part Number :
    750-EC7004-100G
    Description :
    Sys Height 33mm, Intel® Atom® X7211E, 8GB Memory down, 0 to 60°C, IO( 3 USB-A + 1 USB-C, DFI OOB, 2 2.5GbE + 1 1 GbE, 3 RS232/422/485 via DB9, 1 RS232/422/485/DIO via DB9), Display( 1 HDMI, 1 VGA, 1 DP 1.2 Alt. Mode via USB-C), Expansion( M.2 M key: PCIex2/SATA(auto detect), M.2 B Key: USB3.0 /USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
  • Model Name :
    EC700-ADN
    Part Number :
    750-EC7004-600G
    Description :
    Sys Height 43mm, Intel® Core™ I3-N305, 16GB Memory down, 0 to 60°C, IO( 3 USB-A + 1 USB-C, DFI OOB, 2 2.5GbE + 1 1 GbE, 3 RS232/422/485 via DB9, 1 RS232/422/485/DIO via DB9), Display( 1 HDMI, 1 VGA, 1 DP 1.2 Alt. Mode via USB-C), Expansion( M.2 M key: PCIex2/SATA(auto detect), M.2 B Key: USB3.0 /USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
  • Model Name :
    EC700-ADN
    Part Number :
    750-EC7004-000G
    Description :
    Sys Height 43mm, Intel® Atom® X7425E, 16GB Memory down, 0 to 60°C, IO( 3 USB-A + 1 USB-C, DFI OOB, 2 2.5GbE + 1 1 GbE, 3 RS232/422/485 via DB9, 1 RS232/422/485/DIO via DB9), Display( 1 HDMI, 1 VGA, 1 DP 1.2 Alt. Mode via USB-C), Expansion( M.2 M key: PCIex2/SATA(auto detect), M.2 B Key: USB3.0 /USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
  • Model Name :
    EC700-ADN
    Part Number :
    750-EC7004-500G
    Description :
    Sys Height 43mm, Intel® Processor N97, 8GB Memory down, 0 to 60°C, IO( 3 USB-A + 1 USB-C, DFI OOB, 2 2.5GbE + 1 1 GbE, 3 RS232/422/485 via DB9, 1 RS232/422/485/DIO via DB9), Display( 1 HDMI, 1 VGA, 1 DP 1.2 Alt. Mode via USB-C), Expansion( M.2 M key: PCIex2/SATA(auto detect), M.2 B Key: USB3.0 /USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Adapter
    Part Number :
    671-106013-000G
    671-106012-000G
    Description :
    60W 12V inlet C14, locable DC Jack 5.5/2.5mm, cable length 1000mm, wide temp.
    60W 12V inlet C14, locable DC Jack 5.5/2.5mm, cable length 1500mm
  • Item Name :
    Power Cord
    Part Number :
    332-700010-201G
    A81-004003-000G
    A81-000001-000G
    A81-000046-000G
    Description :
    Power Cord US 3pin 1830mm Length
    Power Cord EU 2pin 1830mm Length
    Power Cord China 3pin 1830mm Length
    Power Cord JP 3pin 1830mm length (with DFI PSE logo)

AI-Powered Embedded Solution for Industrial Automation

DFI's EC700-ADN stands out with the latest Intel® Alder Lake-N Series/Atom® processor X series, supporting Intel TCC for top-notch efficiency. It's designed for cost-effective, low-power deployments across industries, with onboard LPDDR5 and versatile interfaces. The modular EMMC design streamlines maintenance, while its slim, fanless profile suits limited-space conditions without compromising performance. Integration of the Hailo-8 module adds advanced AI computing for tasks like real-time decision-making and predictive maintenance. DFI's Out-of-Band (OOB) technology ensures seamless remote troubleshooting and monitoring, even during system failures, ensuring uninterrupted operations and peace of mind.

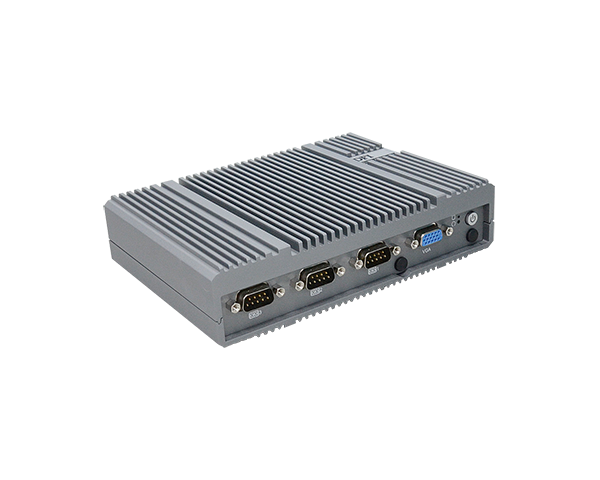

Slim, Fanless IPC for Limited-space Applications

The EC700-ADN boasts a slim profile and a fanless design, making it suitable for rugged environments with limited space, facilitating industrial automation. Its proven construction ensures reliable operation under harsh conditions. Equipped with on-board LPDDR5-4800 up to 16GB and eMMC, the EC700-ADN offers flexibility and cost-effectiveness for various AIoT applications such as industrial factory automation and robotics. It also supports quad display connections via HDMI, VGA, or USB-C, catering to diverse connectivity needs.

Unmatched Performance and Durability for Manufacturing Operations

Experience unparalleled storage versatility, enhanced security, and robust performance with the EC700-ADN PC tailored for industrial automation. Its M.2 E Key, B Key, and M Key slots allow seamless installation of storage and wireless modules, meeting diverse application needs effortlessly. With optional TPM 2.0 support, your sensitive industrial data remains protected, ensuring robust system security. Operating on a wide power range from 9-36V DC, the EC700-ADN is designed for seamless integration into diverse industrial power environments, guaranteeing uninterrupted operations. Having passed rigorous shock and vibration testing, certified up to 3 Grms (IEC 60068-2-64), 30G (IEC-60068-2-27), and additional MIL-STD-810G compliance, this industrial PC excels in durability. It's the ideal choice for reliable and efficient industrial automation, built to withstand the rigors of demanding environments.

DFI's Built-in Out-of-Band (OOB) Allows Remote Monitoring and Management

The EC700-ADN is equipped with DFI's Out-of-Band (OOB) capabilities, providing real-time control and monitoring even during system downtime or OS failures. This feature enables users to monitor devices in real time, regardless of whether they are turned off or experiencing issues. Additionally, the EC700-ADN supports both OOB and in-band (INB) device management, reducing operational costs and enhancing efficiency for service providers and operators throughout the device lifecycle. Key features: 1. Instant System Status Checks: Monitor PC status instantly, even when offline or experiencing issues. 2. Remote Power Control: Manage system power remotely for efficient energy management. 3. System Log Access: Retrieve system logs for diagnostics and analysis, regardless of system state. 4. BIOS Operations: Perform BIOS tasks remotely, including configuration changes and updates. 5. Remote BIOS Setup/UEFI Shell: Simplify BIOS configuration and maintenance remotely. 6. BIOS Maintenance and Upgrades: Address BIOS issues and upgrade versions remotely. 7. (Optional by project Request) Remote OS Image Recovery: Boot from uSD card with Terabyte restore tools(project support)

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
