EC70A-ADP
Home Industrial Computers Ultra Compact Fanless PC EC70A-ADP
  • 12th Gen Intel® Core™ Alder Lake-P Processor
  • On board memory 8GB and 1 SO-DIMM DDR4
  • Dual Displays: HDMI (4K@30Hz) + DP (4K@60Hz)
  • Support M.2 B key 3042/3052 5G-NR module
  • Rich I/O: up to 3 LAN & 4 USB3.2 (or 2 USB3.2 + 2 USB type-C)

Status : Preliminary QUOTE NOW

Fanless Design
DDR4
5G
Dual Display
Rich I/O
2.5G Ethernet
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
EC70A-ADP Embedded Solution Powered by: DFI Proprietary Motherboard

EC70A-ADP Related Tags

#ADP Series#Intel#Compact PC#5G#Fanless Design#Compact Size#4K2K Display#1G Ethernet#Windows#Linux#VGA#DP#DDR4#Low Power Consumption#RoHS Certification#CE Certification#FCC Certification#AGV#AMR#Material Handling#ULT#2.5G Ethernet

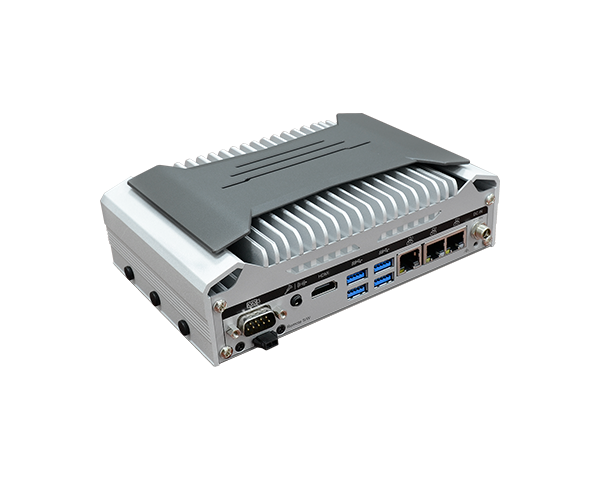

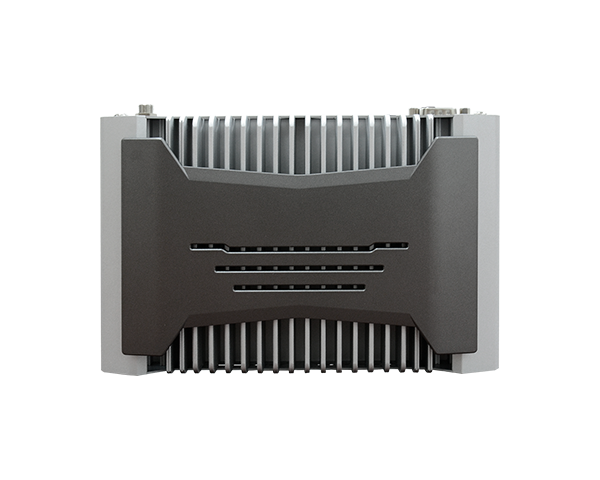

EC70A-ADP|Intel®|Industrial Computers|DFI
EC70A-ADP|Intel®|Industrial Computers|DFI
EC70A-ADP|Intel®|Industrial Computers|DFI
EC70A-ADP|Intel®|Industrial Computers|DFI
EC70A-ADP|Intel®|Industrial Computers|DFI
EC70A-ADP|Intel®|Industrial Computers|DFI
System
Processor
12th Gen Intel® Core™ Processors, BGA 1744
(Alder Lake-P, 15W for Fanless model, 28W for with Fan model)
Intel® Core™ i7-1265UE Processor, 10C12T, 12M Cache, 1.7GHz (4.7GHz)
Intel® Core™ i5-1245UE Processor, 10C12T, 12M Cache, 1.5GHz (4.4GHz)
Intel® Core™ i3-1215UE Processor, 6C8T, 10M Cache, 1.2GHz (4.4GHz)
Memory
8GB On-board memory & one SO-DIMM DDR4 up to 32GB
Dual Channel DDR4 3200MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® Iris® Xe Graphics for i7/i5 Processors
Intel® UHD Graphics for i3 Processors
Feature
DirectX 12, Open GL 4.6, Vulkan 1.2
HW Decode: AV1, AVC/H.264, MJPEG, HEVC/H.265, VP9, SCC
HW Encode: MJPEG, AVC/H.264, HEVC/H.265, VP9, SCC
Display
1 x HDMI
1 x DP

HDMI: resolution up to 4096x2160 @30Hz
DP: resolution up to 4096x2304 @60Hz
Multiple Displays
HDMI + DP + 2 Type-C DP Alt. Mode
Expansion
Interface
1 x M.2 M Key 2280 (PCIex4/SATA)
1 x M.2 B Key 3042/3052 (USB3.0/USB2.0/PCIex1), 1 x SIM slot for 4G/5G
1 x M.2 E Key 2230 (PCIex1/USB2.0)
Audio
Audio Codec
Realtek ALC888 5.1-channel
Ethernet
Controller
1 x Intel® I225LM/IT (10/100/1000/2500Mbps)
2 x Intel® I225LM/IT (10/100/1000Mbps)
(Only Core i7/i5 supports iAMT
LED
Indicators
1 x Power LED
1 x HDD LED

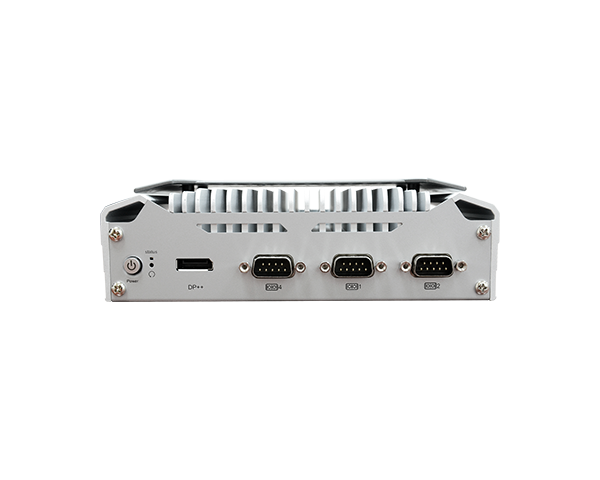

Front I/O
Serial
2 x RS-232/422/485 (DB-9, COM 1~2)
1 x RS232 (DB9, COM 4)
Display
1 x DP (optional VGA by request)
Buttons
1 x Power button
1 x Reset button

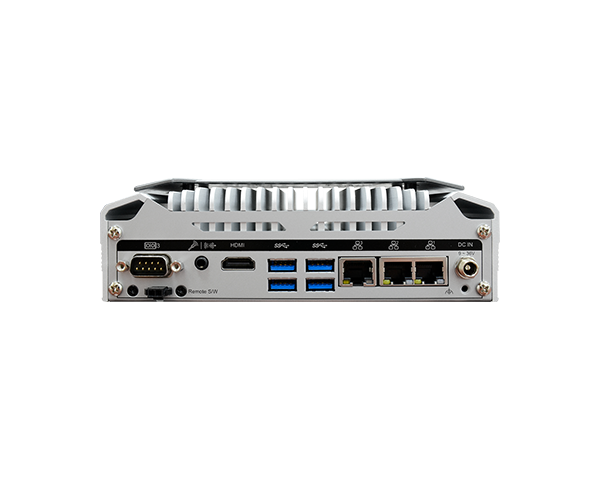

Rear I/O
Ethernet
1 x 2.5GHz (RJ-45) + 2 x GbE (RJ-45)
Serial
1 x RS-232 or 8bit DIO (DB-9, COM 3, default is RS232, 8bit DIO can set by jumper setting)
USB
4 x USB 3.2
[EC70A-ADP4043/EC70A-ADP4043F] 4 x Type A connector
[EC70A-ADP4022TC3/EC70A-4022TC3F] 2 x Type C + 2 x Type A connector
Display
1 x HDMI
2 x Type-C DP Alt. Mode(for EC70A-ADP4022TC3 & EC70A-ADP4022TC3F)
Audio
1 x Audio Combo Phone Jack (Line-out/Mic-in)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0
Power
Type
Wide range 9~36V
Connector
DC Jack
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Operating Temperature
Fanless(CPU TDP 15W): -20 to 60°C (wide-temp SSD)
W/Fan(CPU TDP 28W): -20 to 70°C (wide-temp SSD)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Aluminum + Metal Aluminum
Mounting
Wall/VESA/DIN rail mount
Dimensions (W x H x D)
181.6mm x 57mm x 118.4mm
Weight
TBD
Standards and Certifications
Shock
Operating:
IEC 60068-2-27 Test Ea: Shock Test
Half-Sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
Operating:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min
Non-Operating:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep Sine, 3Grms @ 10~500Hz, 30min
Certifications
CE, FCC Class A, RoHS
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC70A-ADP4043-i315UE8
    Part Number :
    750-EC70A3-000G
    Description :
    EC70A-ADP: EC70A-ADP4043-i315UE8, Fanless, i3-1215UE, 8GB memory, 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS
  • Model Name :
    EC70A-ADP4043-i545UE8
    Part Number :
    750-EC70A3-100G
    Description :
    EC70A-ADP: EC70A-ADP4043-i545UE8, Fanless, i5-1245UE, 8GB memory, 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS
  • Model Name :
    EC70A-ADP4043-i765UE8
    Part Number :
    750-EC70A3-200G
    Description :
    EC70A-ADP: EC70A-ADP4043-i765UE8, Fanless, i7-1265UE, 8GB memory, 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS
  • Model Name :
    EC70A-ADP4043F-i765UE8
    Part Number :
    750-EC70A3-300G
    Description :
    EC70A-ADP: EC70A-ADP4043F-i765UE8, w/Fan, i7-1265UE, 8GB memory, 4 COM, 4 USB, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS
  • Model Name :
    EC70A-ADP4022TC3-i315UE8
    Part Number :
    750-EC70A3-400G
    Description :
    EC70A-ADP: EC70A-ADP4022TC3-i315UE8, Fanless, i3-1215UE, 8GB memory, 4 COM, 2 USB, 2 Type-C, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS
  • Model Name :
    EC70A-ADP4022TC3-i545UE8
    Part Number :
    750-EC70A3-500G
    Description :
    EC70A-ADP: EC70A-ADP4022TC3-i545UE8, Fanless, i5-1245UE, 8GB memory, 4 COM, 2 USB, 2 Type-C, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS
  • Model Name :
    EC70A-ADP4022TC3-i765UE8
    Part Number :
    750-EC70A3-600G
    Description :
    EC70A-ADP: EC70A-ADP4043-i765UE8, Fanless, i7-1265UE, 8GB memory, 4 COM, 2 USB, 2 Type-C, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS
  • Model Name :
    EC70A-ADP4022TC3F-i765UE8
    Part Number :
    750-EC70A3-700G
    Description :
    EC70A-ADP: EC70A-ADP4043F-i765UE8, w/Fan, i7-1265UE, 8GB memory, 4 COM, 2 USB, 2 Type-C, 1 HDMI, 1 DP, 3 LAN, 1 audio port, DC 9~36V input, TPM2.0, F/G SYSTEM RoHS

Efficient Industrial Automation Powerhouse

The EC70A-ADP, a top-notch compact fanless PC, excels in industrial automation and robotics applications, including machine vision. Its robust design and fanless technology ensure reliability and longevity in demanding environments. The EC70A-ADP holds a significant advantage for applications that require a compact system, multiple I/O ports, wide temperature range capabilities, and machine vision integration. It is particularly advantageous for AGV Automated Guided Vehicle Systems and AMR Autonomous Mobile Robot applications across various sectors, including logistics, manufacturing, healthcare, security, and more. With 5G compatibility, it offers high-speed connectivity and data processing, making it the ideal choice for next-gen automation solutions. Experience unmatched performance and durability with the EC70A-ADP.

The EC70A-ADP Industrial Computer Delivers High Performance-Cost Efficiency

The EC70A-ADP is an efficient industrial computer, boasting wide temperature support within a compact and fanless design. This versatile system is powered by 12th Generation Intel® Core™ processors and equipped with onboard memory and one SODIMM slot. This fanless PC excels at handling high workloads, all within a compact form factor of 181.6mm x 57mm x 118.4mm. Its wide temperature range and fanless operation make it ideal for deployment in challenging industrial environments, ensuring reliable performance even in harsh conditions. Additionally, its compatibility with machine vision applications further enhances its suitability for advanced industrial automation tasks.

Strong I/O Flexibility for Diverse Deployments

With 1 2.5GHz and 2 1GbE LAN ports, four USB 3.2 slots, and multiple display interfaces, the EC70A-ADP is well-equipped for a wide range of industrial applications. Supporting a DC-input ranging from 9V to 36V and operating temperatures of -20˚C to 60˚C, this system is suitable for diverse deployments such as machine vision, AMR, AGV, AIoT gateway, and industrial automation, among many others.

Future-Ready for High-Speed Industrial Applications

The EC70A-ADP is equipped with M.2 M and E Keys for storage and Wi-Fi connectivity, along with an M.2 B Key featuring a Nano SIM slot for 5G or LTE smart applications that demand robust, stable, and secure data transmission.
