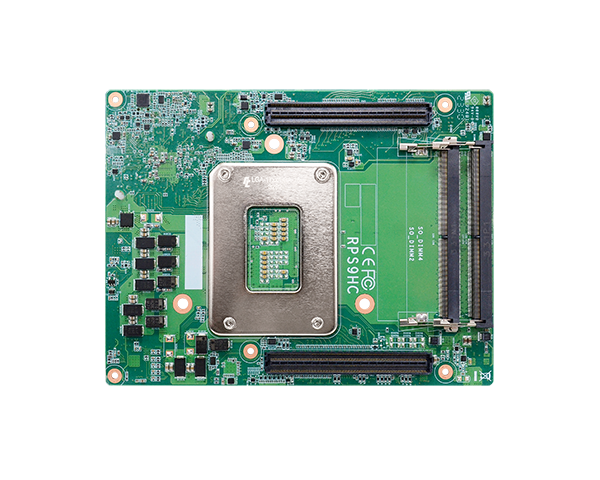

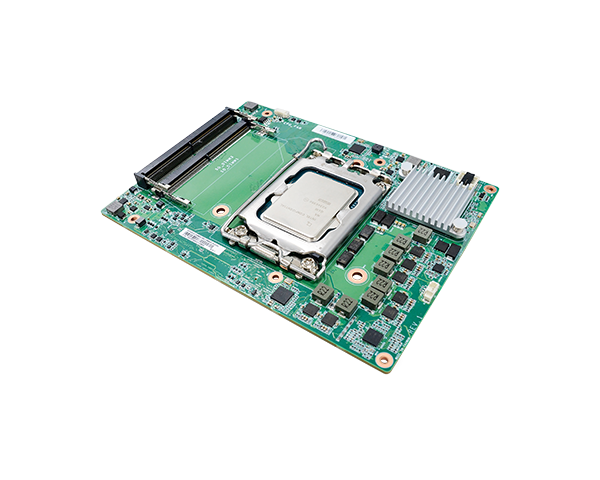

RPS9HC-R680E/Q670E/H610E|Intel®|System-On-Modules|DFI

RPS9HC-R680E/Q670E/H610E
Home System-On-Modules COM HPC RPS9HC-R680E/Q670E/H610E
  • 14th/13th Gen Intel® Core™ with Intel® R680E/Q670E/H610E Chipset
  • 4 DDR5 SODIMM 3600MHz up to 192GB
  • Quad Displays: eDP + 3 DDI
  • DDI supports up to 8K
  • Multiple Expansion: 1 PCIe x16 (Gen5), 4 PCIe x4 (Gen4), 2 PCIe x4 (Gen3), 2 PCIe x1 (Gen3)
  • Rich I/O: 2 Intel 2.5GbE, 6 USB 3.2 Gen2, 8 USB 2.0
  • Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.

Status : Preliminary QUOTE NOW

Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
10 Years CPU Life Cycle Support
8K resolution
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

RPS9HC-R680E/Q670E/H610E Related Tags

#8K resolution#DDR5#13th Gen Intel® Core™ Processor#Windows 10#Edge AI Computing#eDP#Slim Bootloader#14th Gen Intel® Core™ Processor#IoT#Windows 11#Intel#PCIe x16#Windows#Linux#HDMI#DP#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
RPS9HC-R680E/Q670E/H610E|Intel®|System-On-Modules|DFI
RPS9HC-R680E/Q670E/H610E|Intel®|System-On-Modules|DFI
RPS9HC-R680E/Q670E/H610E|Intel®|System-On-Modules|DFI
System
Processor
14th Gen Intel® Core™ Processors, LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W

13th Gen Intel® Core™ Processors, LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W
Chipset
Intel® R680E/Q670E/H610E Chipset
Memory
4pcs DDR5 SO-DIMM up to 192GB
Dual Channel DDR5
ECC support by R680 with i7 and i5
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
3 x DDI (HDMI/DP++) support to 8K
1 x eDP support to 5K
Quad Displays
eDP + 3 DDI
Expansion
Interface
1 x PCIe x16 (Gen5)
4 x PCIe x4 (Gen4)
2 x PCIe x4 (Gen3)
2 x PCIe x1 (Gen3)
1 x eSPI
1 x I2C
1 x SMBus
2 x UART (TX/RX/RTS/CTS)
Audio
Audio Codec
HD Audio
Ethernet
PHY
2 x Intel® I226 series (10/100/1000Mbps/2.5G)
I/O
USB
4 x USB 3.2 Gen2
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
GPIO
12 bit in/out
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0 (Available Upon Request)
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption
TBD
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11
Linux
Ubuntu 20.04
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
COM HPC® Client Size C
6.30" x 4.72" (160mm x 120mm)
Compliance
PICMG COM HPC® R1.15, Client Size C
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
• COM836 carrier board kit, 770-COM8361-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPS9HC-R680E-BS
    Part Number :
    770-RPS9HC1-000G
    Description :
    Intel® Core™, R680E, 3 DDI + 1 eDP, 4 USB3.2 Gen2, TPM 2.0, Cooler Thermal, 0~60°C
  • Model Name :
    RPS9HC-Q670E-BS
    Part Number :
    770-RPS9HC1-100G
    Description :
    Intel® Core™, Q670E, 3 DDI + 1 eDP, 4 USB3.2 Gen2, TPM 2.0, Cooler Thermal, 0~60°C
  • Model Name :
    RPS9HC-H610E-BS
    Part Number :
    770-RPS9HC1-200G
    Description :
    Intel® Core™, H610E, 3 DDI + 1 eDP, 4 USB3.2 Gen2, TPM 2.0, Cooler Thermal, 0~60°C
